KBA...UUOP

Dimensions in mm.
Other types available on request.
Download PDF

Product Information

Material: Aluminium 6063 + 100Cr7
Designation Lead Time * Dynamic Load Capacity Static Load Capacity
1 590 N 910 N Get quote
1 880 N 1400 N Get quote
1 1000 N 1600 N Get quote
1 1600 N 2800 N Get quote
1 2200 N 4100 N Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

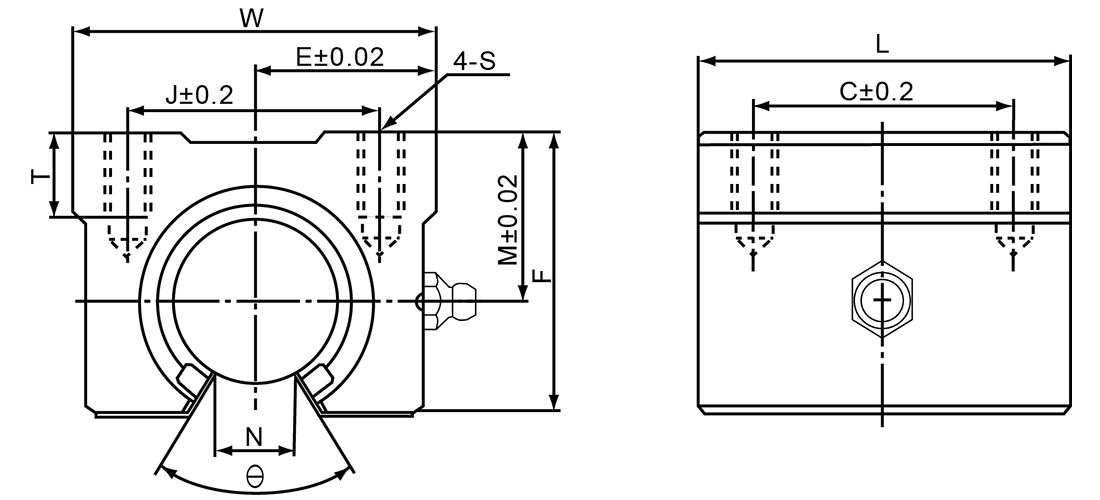

Technical Drawing
Designation L W N Theta θ C E F J M S T Inscribed Circle Diameter
45 45 10 60 30 22,50 33 32 20 M5 12 16 Get quote
50 48 10 60 35 24 39 35 23 M6 12 20 Get quote
65 60 11,50 60 40 30 47 40 27 M6 12 25 Get quote
70 70 14 60 50 35 56 50 33 M8 18 30 Get quote
90 90 19 60 65 45 72 65 42 M10 20 40 Get quote
