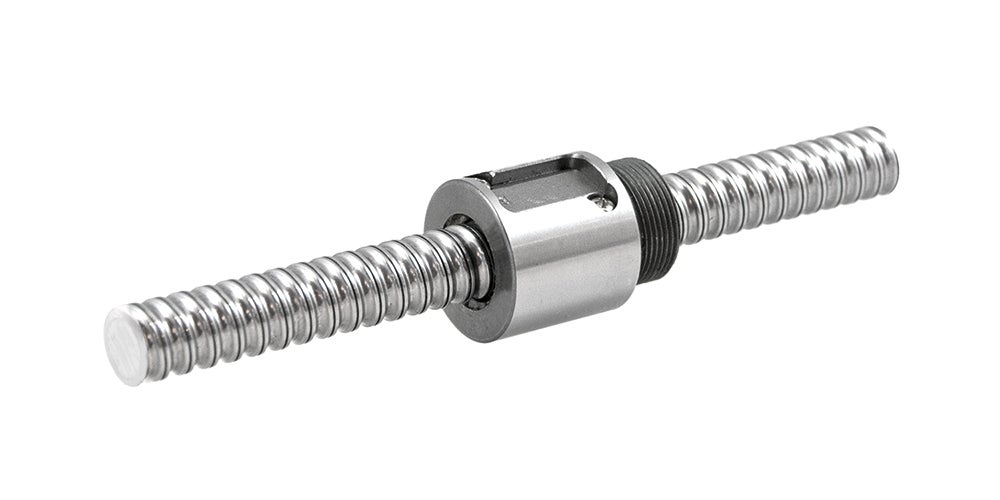

RSKR

STOCK ITEM
Single Nut, Cylindrical with Thread.

Tolerance D: h10.

Standard nuts are without any seals or scrapers. Other types on request.

All dimensions in mm.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Compatible with Dynamic Load Ratings Ca (N) Static Load Ratings C0a (N) Ball diameter Turns x circuits
Get quote 1 FKN06 2109 2345 1.2 1 x 2.5
Get quote 1 BKN08 / FKN08 / BFN08 6327 6798 2.381 1 x 3.5
Get quote 1 BKN12 / FKN12 / BFN12 / FFN12 10291 11223 3.175 1 x 3.5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D L d0 x Lead
Get quote M15 x 1 7.5 17.5 26 8 x 2.5
Get quote M20 x 1 10 25.5 34 12 x 4
Get quote M26 x 1.5 12 32.5 42 16 x 5
  • STOCK ITEM

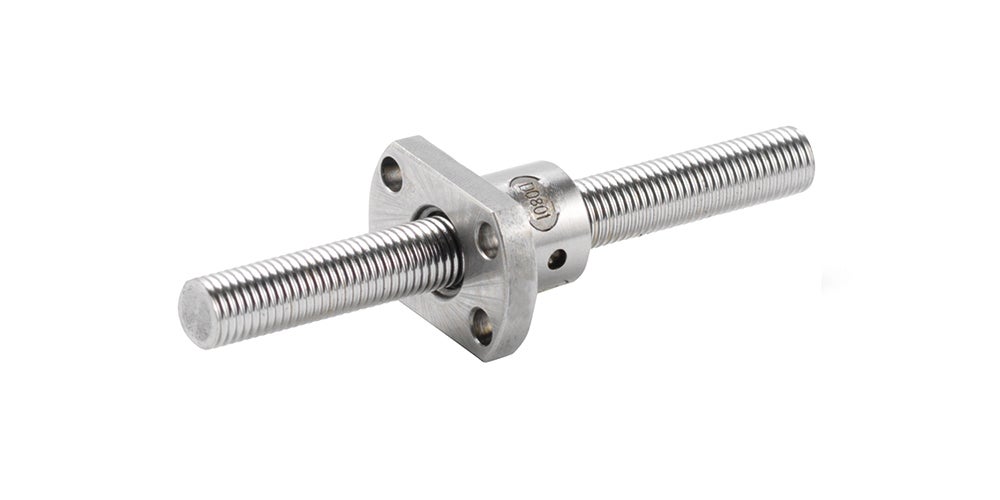

    SFKR
    Ball nut, miniature, with flange for right lead (SCR) screw
