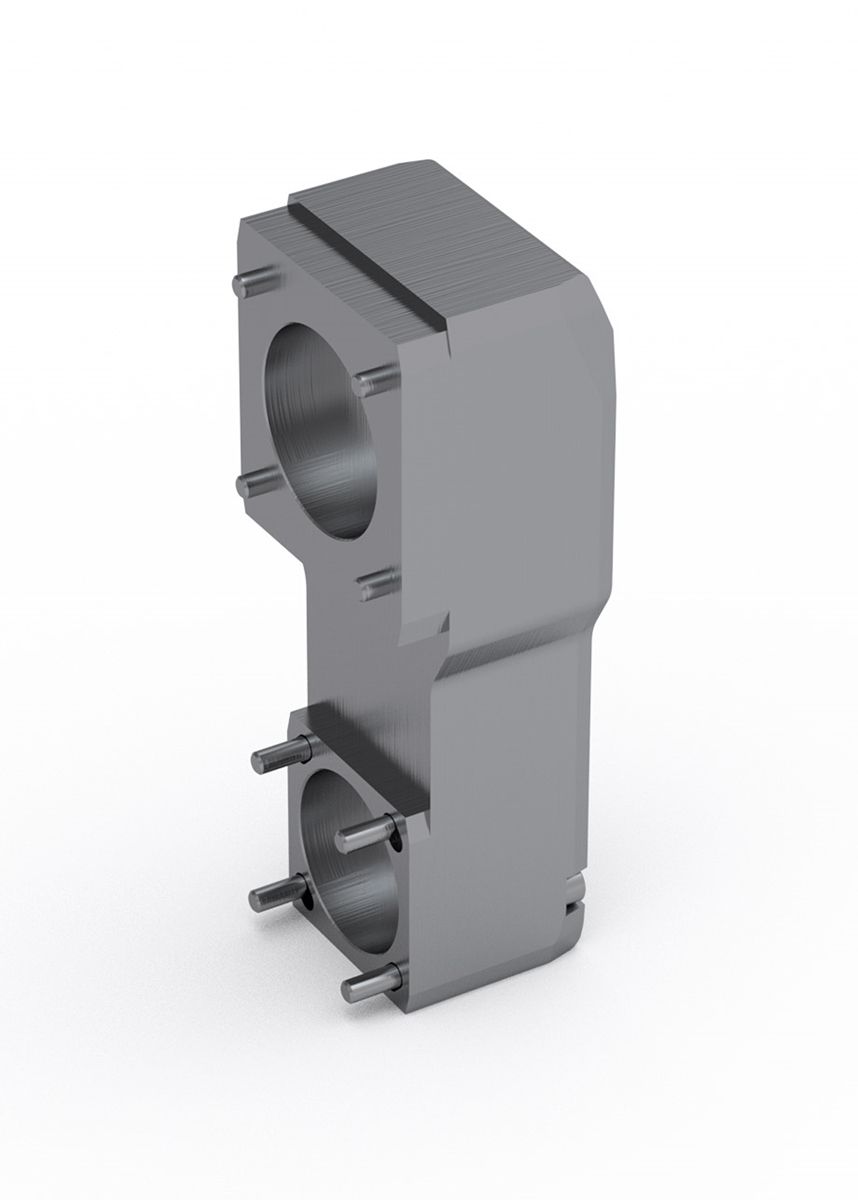

Motor side drive MSD with a timing belt

Product Information

Designation Select all Type Compatible with Gear ratio (I) Max. Drive Torque (Nm) Max. Radial Load on Shaft (N) No Load Torque (Nm) Mass moment of inertia (10(⁻⁶) Mass (kg)
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP T1 MCE/MSCE 25 1 0,10 15 0,01 0,39 0,10
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP T1 MCE/MSCE 32 1 0,10 15 0,02 0,39 0,12
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP T2 MCE/MSCE 32 1 0,25 15 0,02 1,04 0,18
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP T1 MCE/MSCE 45 1 0,30 15 0,02 4,16 0,28
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP T2 MCE/MSCE 45 1 0,80 45 0,02 4,20 0,36
Get quote
Designation Select all B E F G G2 N K L P M2 F2 J C
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP max 35 52,5 (±0,5) 31,50 22 19,50 5,50 12,25 83 18 M4x6 24,50 38,50 max 25
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP max 35 52,5 (±0,5) 31,50 22 19,50 5,50 15,75 86,50 22 M5x7 31,50 0 max 25
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP max 50 70,5 (±0,5) 44,50 22 19,50 6,50 15,75 110,50 22 M5x7 31,50 48 max 36
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP max 50 81 (±0,5) 44,50 27,50 24,50 6,50 22,25 128 32 M6x7 44,50 0 max 36
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP max 70 88,5 (±0,5) 59,50 27,50 24,50 6 22,25 144 32 M6x7 44,50 64,50 max 50
Get quote
Designation Select all A B L1 Min. Clamping set L1 max. C ØD Max. Clamping set
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP max 34 max 35 ** 20 max 25 6,35
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP max 34 max 35 ** 20 max 25 6,35
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP max 46 max 50 ** 24 max 36 8
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP max 46 max 50 ** 28 max 36 8
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP max 59,5 max 70 ** 28 max 50 12,70
Get quote
