PP3130 – Profile 30x30 2N 180 L

Last ned PDF (alle data) code.product.loadingpdf
+ Legg til i PDF-katalog

Product Information

System: 30 - Slot 6
Dimensions: 30x30
Length (mm): 6000

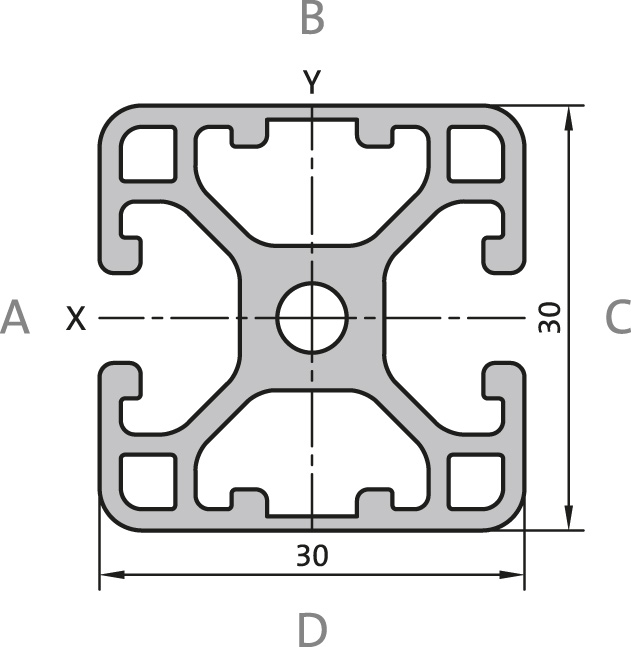

CAD-Drawing
Designation Select all Lead Time * Ix (cm⁴) ly (cm⁴) Wx (cm³) Wy (cm³) A (cm²) Mass (kg/m) Compare
2 2.89 3.17 1.92 2.11 3.48 0.94
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
