FTSU

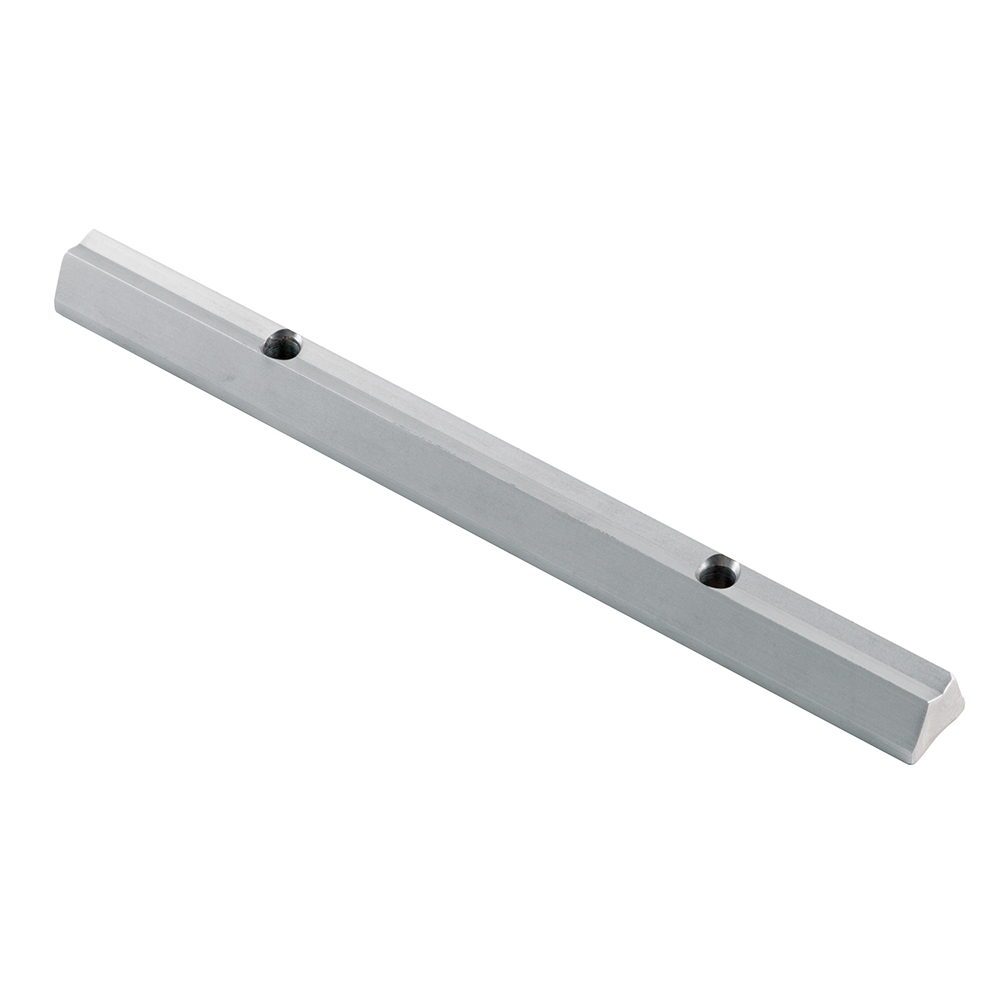

Aluminium with mounting holes.

Standard section length L = 4000 mm. Lengths other than standard (Lmax = 4000 mm) are also available on request.

Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.

Dimensions in mm.

Note: The shaft is not included, please order separately.
Download PDF

Product Information

Material: Aluminium

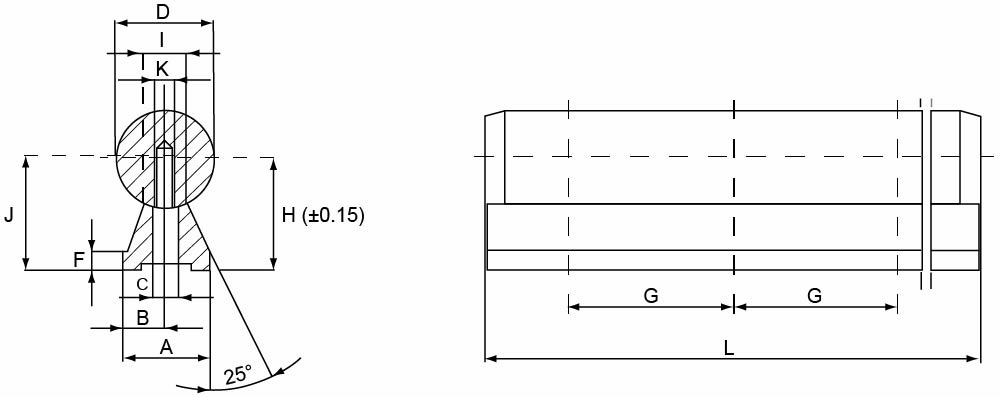

Technical Drawing
Designation Lead Time * G A B H D K F C I J Remark
2 100 14 7 18 16 M5 3 5,50 7 19 Standard section length L = 4000 mm Get quote
1 100 17 8,50 22 20 M6 3 6,60 8,10 23 Standard section length L = 4000 mm Get quote
1 120 21 10,50 26 25 M8 3 9 10,30 28,50 Standard section length L = 4000 mm Get quote
1 150 23 11,50 30 30 M10 3 11 11 32 Standard section length L = 4000 mm Get quote
2 200 40 15 39 40 M10 4 13,50 15 39,50 Standard section length L = 4000 mm Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

  • Aluminium shaft support with flange ,for drilled shafts Ø 12-40 mm.
