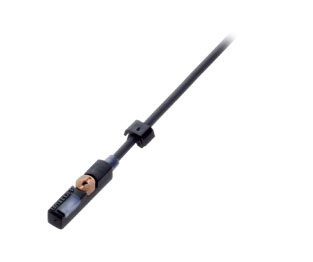

Position switch
For Linear Unit QME.
RHL-BMF235K-PS = Normally Open
RHL-BMF235K-PO = Normally Closed
Characteristics:
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
Dimensions in mm.
RHL-BMF235K-PS = Normally Open
RHL-BMF235K-PO = Normally Closed
Characteristics:
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
Dimensions in mm.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Service Voltage (V DC) | Output | Max. Rating (mA) | Contact rating | Internal Power Consumption (mA) | Max. Voltage Drop Static (V) | Operating Frequency (Hz) | Reproducibility (mm) | Ambient Temperature (°C) | Insulation Voltage Endurance (V DC) | Protection class | Indicators | Mounting | Casing material | Connection | Approval | Short circuit protected | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 10 ... 30 | PNP, NO | 200 | 6 W max. (30 V, 200 mA) | 6 | 2,50 | 5000 | < 0,1 | -25 ... +85 | 75 | IP 67 | LED: yellow output signal | Hex key size 2,0 mm. Max. tightening torque 0,4 Nm | PA12 | Cable PUR, 2,0 m as standard | CE | Yes |
|
||
|
|
1 | 10 ... 30 | PNP, NC | 200 | 6 W max. (30 V, 200 mA) | 6 | 2,50 | 5000 | < 0,1 | -25 ... +85 | 75 | IP 67 | LED: yellow output signal | Hex key size 2,0 mm. Max. tightening torque 0,4 Nm | PA12 | Cable PUR, 2,0 m as standard | CE | Yes |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
-
-
