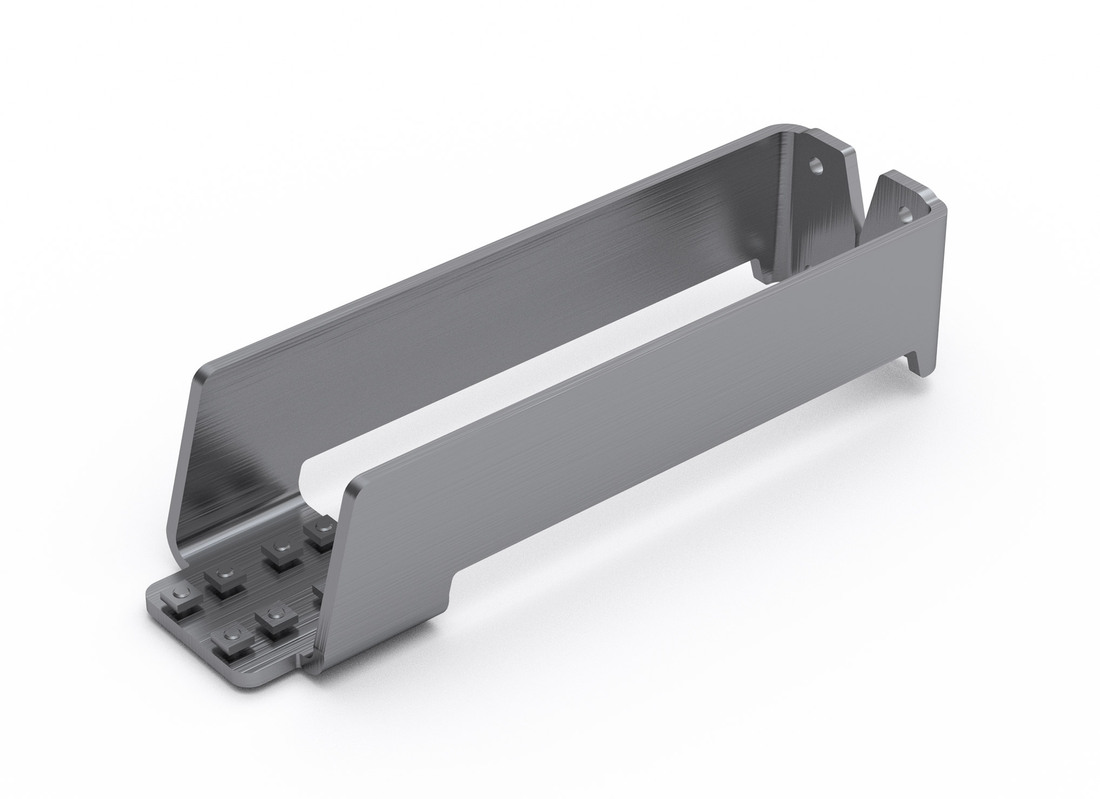

Back mount ABM
Dimensions in mm.
Mounting screws and nuts are included.
□ = Square cross section
Mounting screws and nuts are included.
□ = Square cross section
Last ned PDF (alle data)
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
Material: Stainless steel
| Designation | Select all | Lead Time * | Compatible with | Motor compatibility (type/size □ (mm)) | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/E8DD00BBF637A36278842366B699DD71E1A181C29E64657EDA8AC3783BAA2E03/e629cc4e7a444209956407353abf75db/STP/media/53316973a61546ff9a3fe880c7c2bbbf/CAD_ABM25-T1-108239_BackMountABM_Rollco.STP | 2 | MCE 25 | Stepper / 28 | ABM 25 - T1 | Stainless steel | F MCE | 0.14 |
|
||
|
|
/storage/BD9A11BF553877441835B4CD6488DC70ADF6D60C75167EFF7D7691E90FFBEBE9/209c7cba74194ad6a17247c838c2a42a/STP/media/b1d43c4da6be4543bc6840da4a092501/CAD_ABM32-T1-108237_BackMountABM_Rollco.STP | 2 | MCE 32 | Stepper / 28 | ABM 32 - T1 | Stainless steel | F MCE | 0.24 |
|
||
|
|
/storage/E6238D68D48763BC3302B59EE8D77B41B4BCC861C1355E255FBCEF5B945ABD40/ca546c5b4b094afb8d35ad9105728664/STP/media/be5a1623914848899e02ef2b5f8f6c31/CAD_ABM32-T2-108238_BackMountABM_Rollco.STP | 2 | MCE 32 | Stepper / 42 | ABM 32 - T2 | Stainless steel | F MCE | 0.29 |
|
||
|
|
/storage/5DE0C6932B1012093C3EE6674372A26B8E8D428E0E21102352773CE31D7A1D5C/e98dc39fcd214a5eb3ffc25b5ecfa116/STP/media/3407c21ccf204316a361e19dd06d5522/CAD_ABM45-T1-108235_BackMountABM_Rollco.STP | 2 | MCE 45 | Stepper / 42 | ABM 45 - T1 | Stainless steel | F MCE | 0.62 |
|
||
|
|
/storage/AB73F12DAFA4DB1EEC503AA0261A0FA0174A040BFF15D472E9D4BAF2BA144AFC/b37a85d54a034b7b947776b85633c1b5/STP/media/3c71b36e506440d5a3e4cfa3cdfc550c/CAD_ABM45-T2-105320_BackMountABM_Rollco.STP | 2 | MCE 45 | Stepper / 56 | ABM 45 - T2 | Stainless steel | F MCE | 0.72 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | M | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | T (Nm) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/E8DD00BBF637A36278842366B699DD71E1A181C29E64657EDA8AC3783BAA2E03/e629cc4e7a444209956407353abf75db/STP/media/53316973a61546ff9a3fe880c7c2bbbf/CAD_ABM25-T1-108239_BackMountABM_Rollco.STP | M4 | 165 | 30.5 | 27.5 | 35 | 18 | 13.5 | 28 | 12 | 29.8 | 35.5 | 27 | 2.5 | 0.3 |
|
||
|
|
/storage/BD9A11BF553877441835B4CD6488DC70ADF6D60C75167EFF7D7691E90FFBEBE9/209c7cba74194ad6a17247c838c2a42a/STP/media/b1d43c4da6be4543bc6840da4a092501/CAD_ABM32-T1-108237_BackMountABM_Rollco.STP | M5 | 170 | 38.5 | 35 | 40 | 22 | 13.5 | 28 | 12 | 37.7 | 44.5 | 34 | 3 | 1.2 |
|
||
|
|
/storage/E6238D68D48763BC3302B59EE8D77B41B4BCC861C1355E255FBCEF5B945ABD40/ca546c5b4b094afb8d35ad9105728664/STP/media/be5a1623914848899e02ef2b5f8f6c31/CAD_ABM32-T2-108238_BackMountABM_Rollco.STP | M5 | 200 | 46 | 35 | 40 | 22 | 13.5 | 28 | 12 | 37.7 | 52 | 34 | 3 | 1.2 |
|
||
|
|
/storage/5DE0C6932B1012093C3EE6674372A26B8E8D428E0E21102352773CE31D7A1D5C/e98dc39fcd214a5eb3ffc25b5ecfa116/STP/media/3407c21ccf204316a361e19dd06d5522/CAD_ABM45-T1-108235_BackMountABM_Rollco.STP | M6 | 210 | 53.5 | 49 | 50 | 32 | 20 | 40 | 16 | 52.7 | 61.5 | 48 | 4 | 2.2 |
|
||
|
|
/storage/AB73F12DAFA4DB1EEC503AA0261A0FA0174A040BFF15D472E9D4BAF2BA144AFC/b37a85d54a034b7b947776b85633c1b5/STP/media/3c71b36e506440d5a3e4cfa3cdfc550c/CAD_ABM45-T2-105320_BackMountABM_Rollco.STP | M6 | 245 | 64.9 | 49 | 50 | 32 | 20 | 40 | 16 | 52.7 | 72.9 | 48 | 4 | 2.2 |
|
