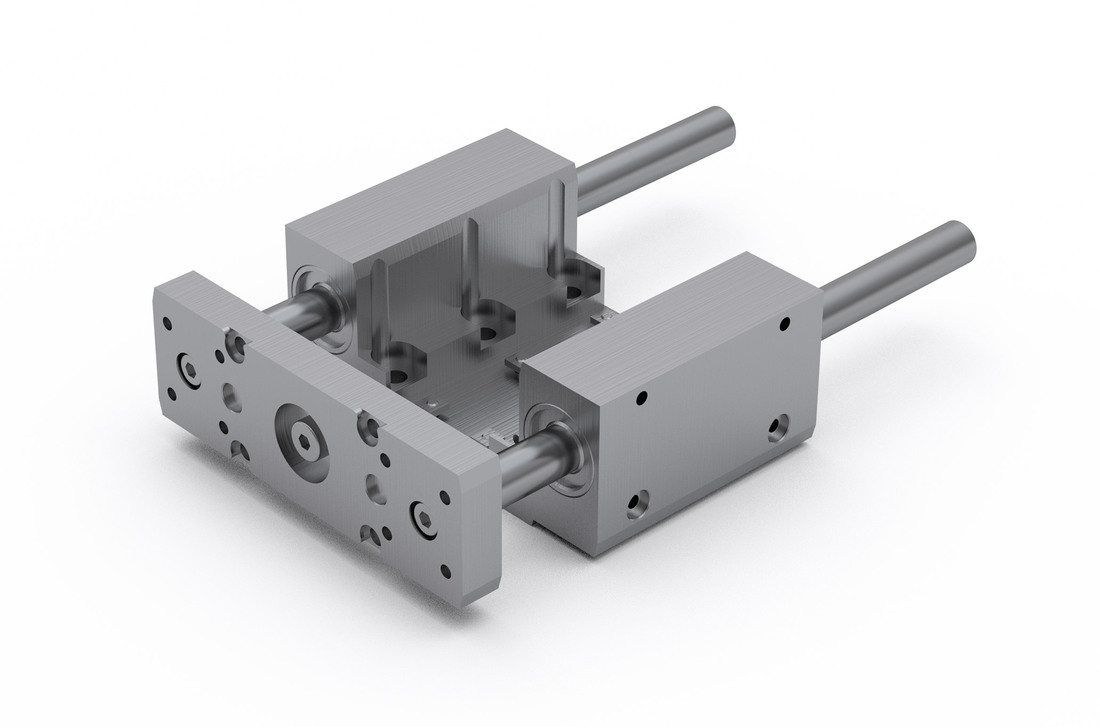

Guiding unit GUC
Dimensions in mm.
Mounting (on the MCE profile) screws and nuts are included. Guiding unit GUC requires a female thread on the piston rod end.
Mounting (on the MCE profile) screws and nuts are included. Guiding unit GUC requires a female thread on the piston rod end.
Last ned PDF (alle data)
code.product.loadingpdf
+
Legg til i PDF-katalog

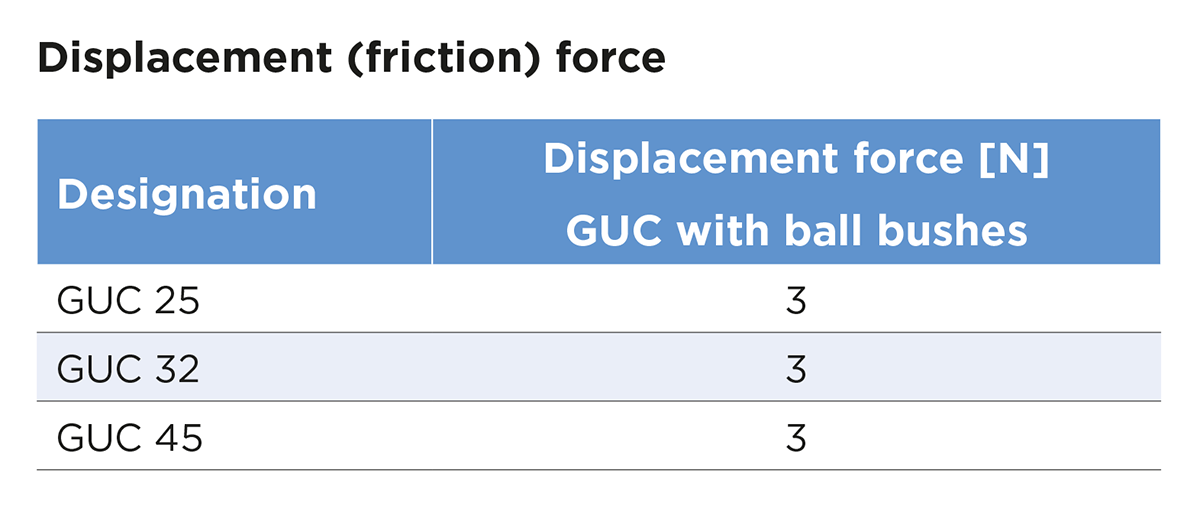

Product Information
Material: Body and plate in anodized aluminium. Guides in hardened steel.
| Designation | Select all | Lead Time * | Compatible with | Compare | |
|---|---|---|---|---|---|
|
|
2 | MCE 25 |
|
||
|
|
2 | MCE 32 |
|
||
|
|
2 | MCE 45 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | L13 | L14 | L15 | L16 | L17 | L18 | L19 | L20 | L21 | L22 | L23 | L24 | L25 | L26 | L27 | L28 | D1 | D2 | D3 | M1 | M2 | M3 | T1 (Nm) | T2 (Nm) | F1 | F2 | F3 | F4 | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
88 | 8 | 18 | 50 | 20 | 32 | 32 (±0.02) | 20 | 7.5 | 24.5 | 74.5 | 75 | 57 | 32 | 13.5 | 40 | 40 | 19 | 25.5 | 45 | 1.5 | 5 | 12.5 | 12.5 | 30 | 39 | 5.25 | 7.3 | 8 | 5 (H7) | 8 | M3 | M4 | M5 | 2.8 | 0.3 | 12 | 1.3 | 4.5 | 0.3 |
|
||
|
|
117 | 10 | 22 | 75 | 20 | 44 | 44 (±0.02) | 25 | 11.5 | 31.5 | 89.5 | 90 | 69 | 44 (±0.02) | 13.5 | 60 | 50 (±0.02) | 28 | 33.5 | 60 | 4.5 | 8 | 16 | 32 | 40 | 54 | 8.25 | 8 | 10 | 7 (H7) | 5.1 | M4 | M5 | - | 5.6 | 1.2 | 12 | 1.6 | - | 0.3 |
|
||
|
|
150 | 14 | 30 | 100 | 20 | 56 | 56 (±0.02) | 30 | 17.5 | 44.5 | 109.5 | 110 | 86 | 56 (±0.02) | 20 | 60 | 60 (±0.02) | 38 | 46.5 | 80 | 10.5 | 10 | 22.5 | 47 | 55 | 67 | 10.25 | 10.5 | 12 | 7 (H7) | 6.6 | M5 | M6 | - | 9.6 | 2.2 | 12 | 1.6 | - | 0.3 |
|
| Designation | Select all | Mass of GUC mGUC (kg) | Moved Mass of GUC m mGUC (kg) | Compare | |
|---|---|---|---|---|---|
|
|
0.30 + 0.0008 × (Abs. stroke + E) | 0.10 + 0.0008 × (Abs. stroke + E) |
|
||
|
|
0.65 + 0.0013 × (Abs. stroke + E) | 0.20 + 0.0013 × (Abs. stroke + E) |
|
||
|
|
1.30 + 0.0018 × (Abs. stroke + E) | 0.42 + 0.0018 × (Abs. stroke + E) |
|
