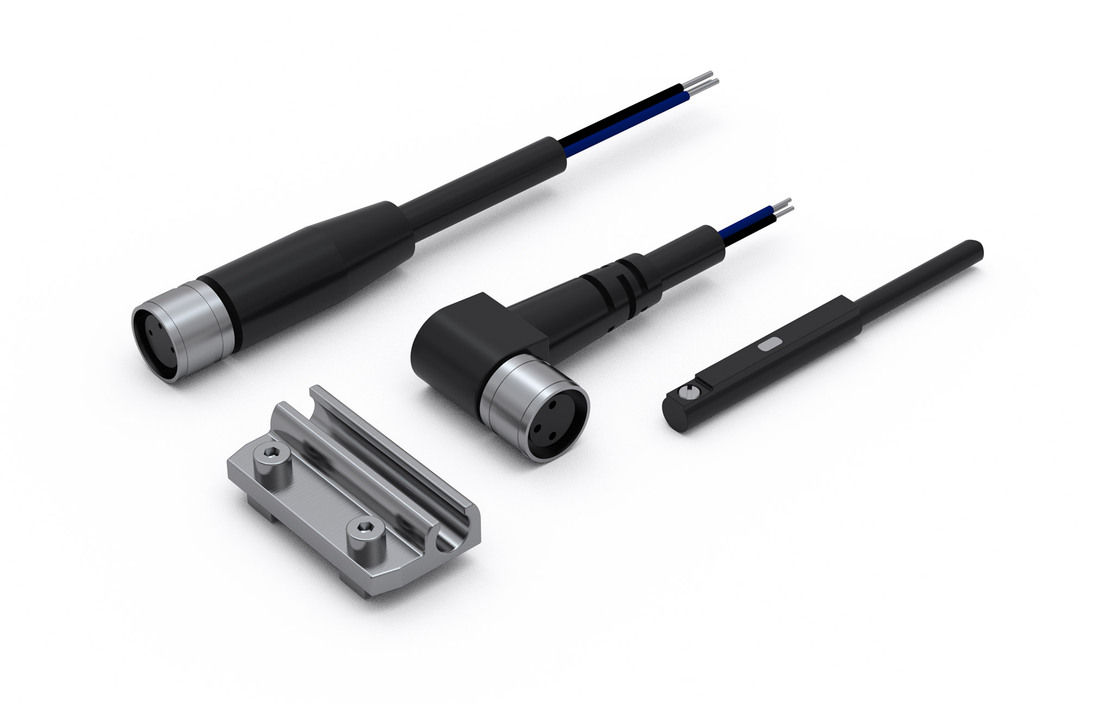

Magnetic field sensors

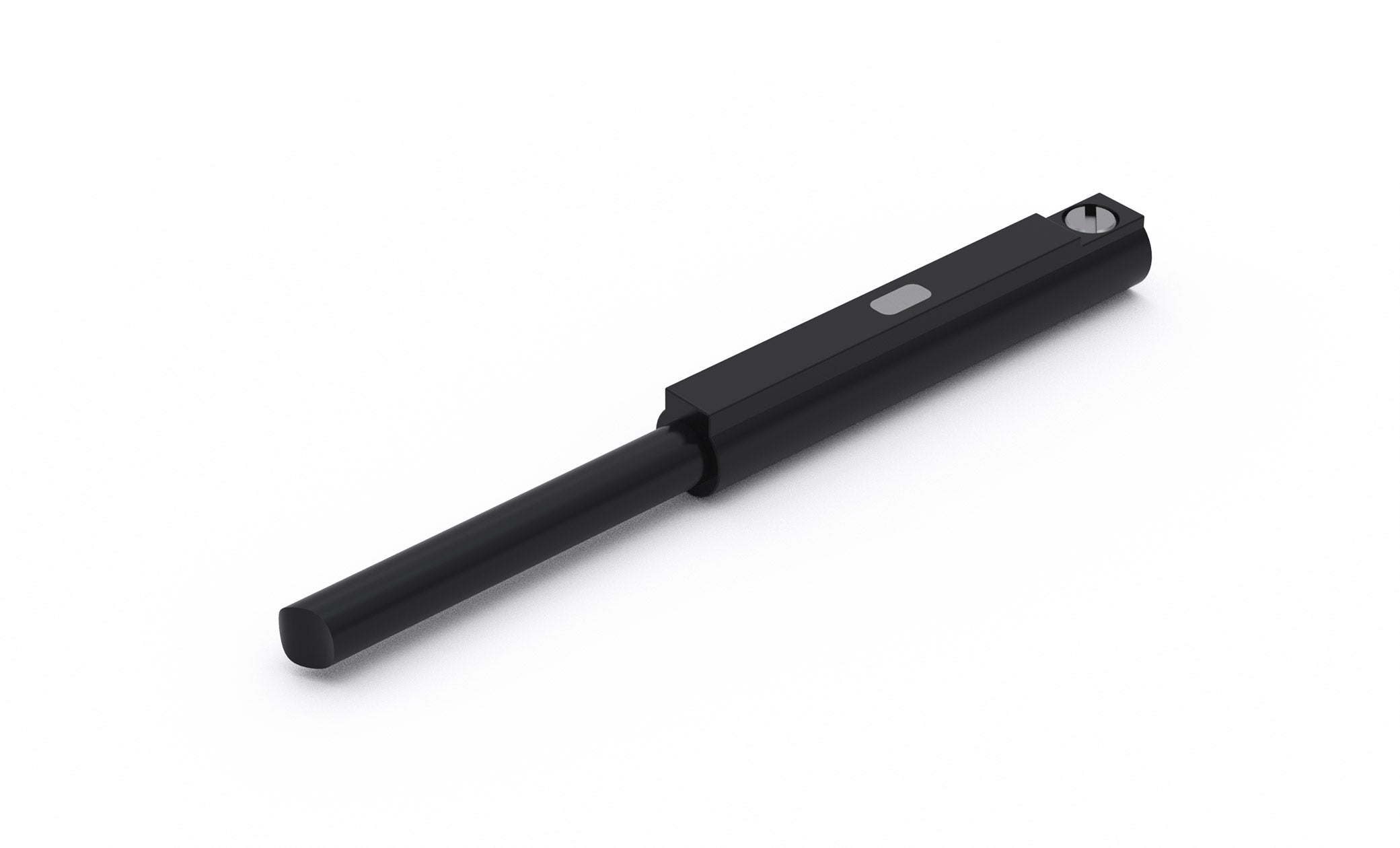

Magnetic field sensors can be mounted by using the slot for the magnetic field sensor placed on the sides of the MCE/MSCE profile.

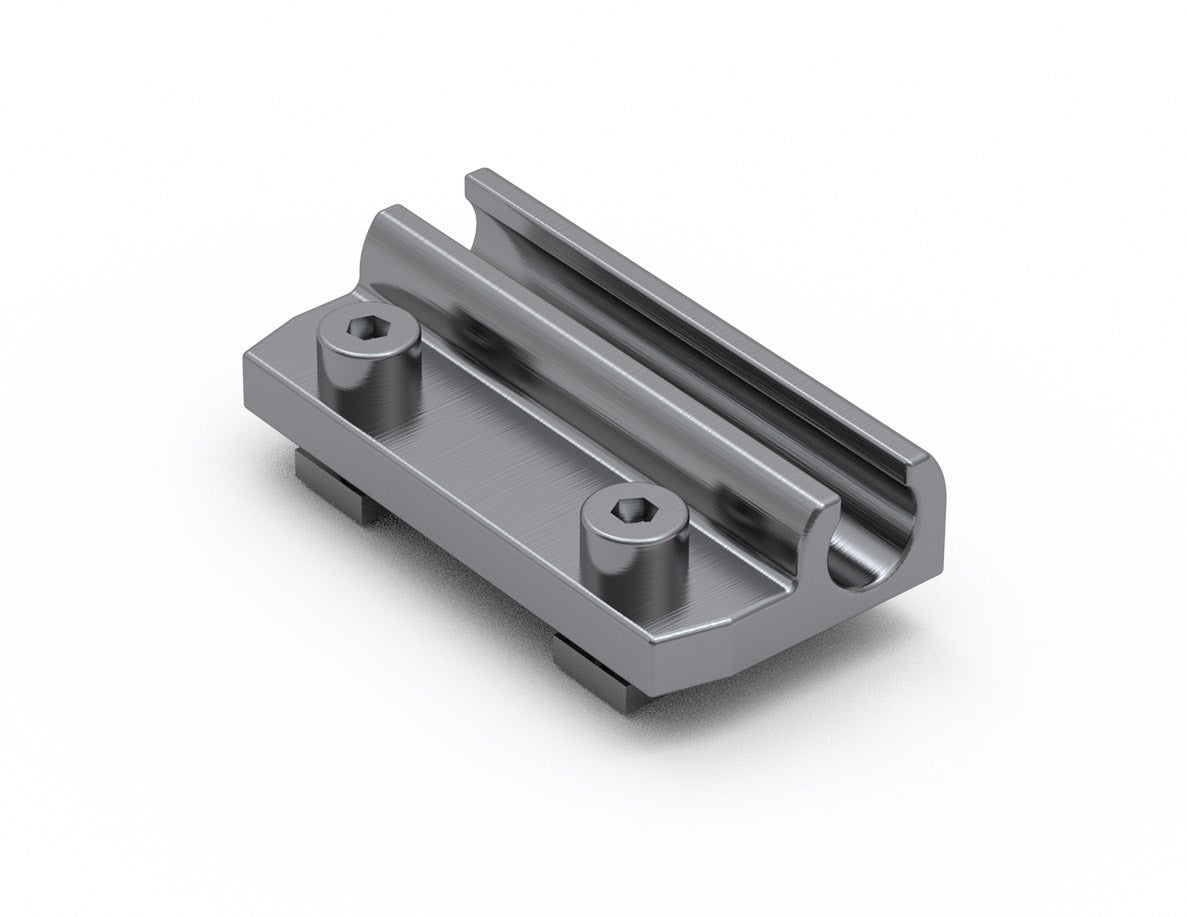

For the MCE/MSCE size of 25, mounting of the magnetic field sensor requires an HMG sensor holder.
Read more

Product Information

Protection Class: IP67
Ambient Temperature (°C): –10 ~ +70
Cable material length: PUR, 150 mm
Current consumption: 6 mA @ 24 V DC max.
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Function principle: Magnetic
LED indicator: Green
Max. Leakage Current (mA): 0.01
Max. Power Rating (W): 6
Max. Switching Current (mA): 200
Operating Voltage (V DC): 5 ~ 30
Sensor Type: PNP current sourcing
Shock/vibration: 50 G / 9 G
Switching Frequency (Hz): 1000
Switching function: NC or NO
Voltage drop: 0.5 V @ 200 mA max.
Wiring method: 3-wire type
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Type Material Cable Length (m)
Get quote 2 NC-normally close MCE/MSCE series Magnetic sensor - -
Get quote 2 NO-normally open MCE/MSCE series Magnetic sensor - -
Get quote 2 - MCE/MSCE 25 Sensor holder Powder coated zinc alloy -
Get quote 2 - SMO-40TP-K NC / SMO-40TP-K NO Straight connector extension cable - 2
Get quote 2 - SMO-40TP-K NC / SMO-40TP-K NO Straight connector extension cable - 5

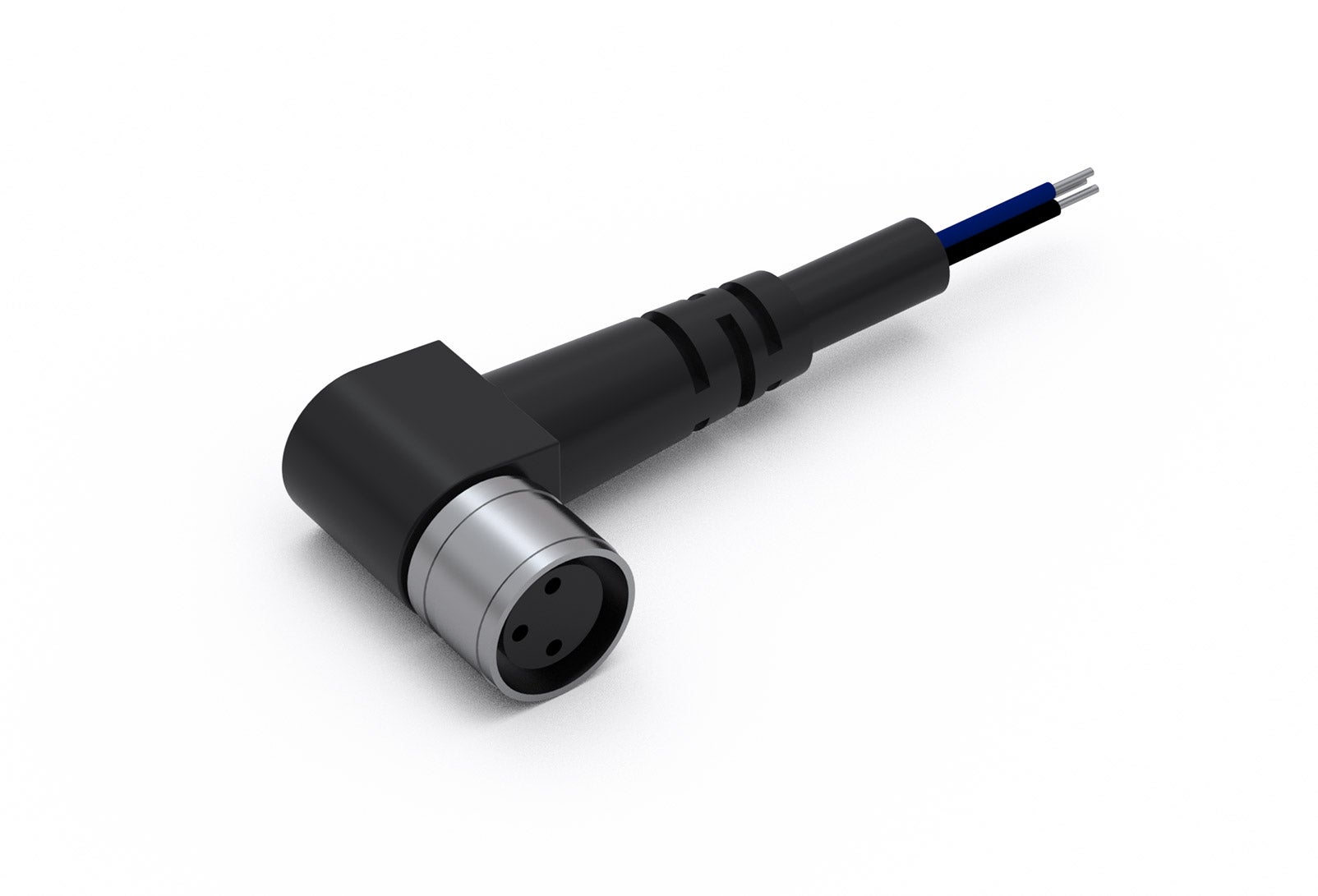

Get quote 2 - SMO-40TP-K NC / SMO-40TP-K NO Angled connector extension cable - 2
Get quote 2 - SMO-40TP-K NC / SMO-40TP-K NO Angled connector extension cable - 5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
