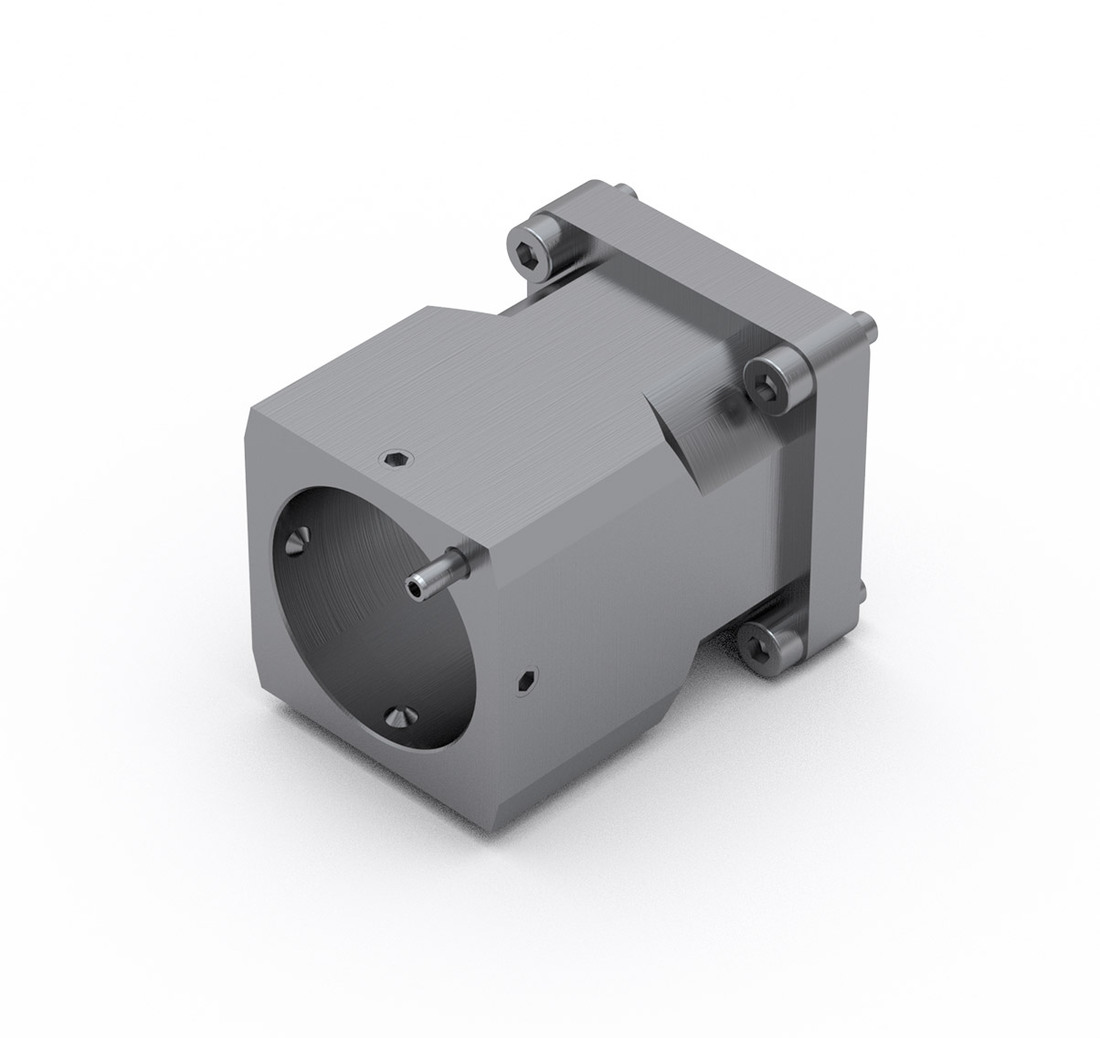

Motor adapter VK
For Mini Linear Units MGBS & MGTB and MCE & MSCE Mini Electric Cylinders & Sliders.
The standard motor adapter VK is made out of one piece. It is important to note when ordering it, that the coupling is included.
Note! If you order a custom motor adapter VK for a non-standard motor the coupling is not included.
□ = Square cross section
Dimensions in mm.
Read more
The standard motor adapter VK is made out of one piece. It is important to note when ordering it, that the coupling is included.
Note! If you order a custom motor adapter VK for a non-standard motor the coupling is not included.
□ = Square cross section
Dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Motor Type | Motor Size (mm) | Motor Standard | Motor Shaft Length L1 Min. (mm) | Motor Shaft Length L1 Max. (mm) | Motor Shaft Diameter (mm) | Motor Mounting Holes ØO × H (mm) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | MCE/MSCE 25 | Stepper | 28 | NEMA 11 | 15 | 20 | 5.0 | M2,5 × 2,5 (min.) | 0.04 | ||||
|
|
|
2 | MGBS/MGTB 32, MCE/MSCE 32 | Stepper | 28 | NEMA 11 | 15 | 20 | 5.0 | M2.5 × 2.5 (min.) | 0.06 | ||||
|
|
|
2 | MGBS/MGTB 32, MCE/MSCE 32 | Stepper | 42 | NEMA 17 | 20 | 25 | 5.0 | M3 × 4.5 (min.) | 0.09 | ||||
|
|
|
2 | MGBS/MGTB 45, MCE/MSCE 45 | Stepper | 42 | NEMA 17 | 20 | 25 | 6.35 | M3 × 4.5 (min.) | 0.14 | ||||
|
|
|
2 | MGBS/MGTB 45, MCE/MSCE 45 | Stepper | 56 | NEMA 23 | 20 | 25 | 6.35 | 5 × 9.0 (max.) | 0.18 | ||||
|
|
|
2 | MGBS/MGTB 60 | Stepper | 56 | NEMA 23 | 20 | 25 | 6.35 | 5 × 9.0 (max.) | 0.36 | ||||
|
|
|
2 | MGBS/MGTB 60 | Stepper | 86 | NEMA 34 | 32 | 37 | 14 | 7 × 10.0 (max.) | 0.58 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
