Couplings
Dimension in mm.

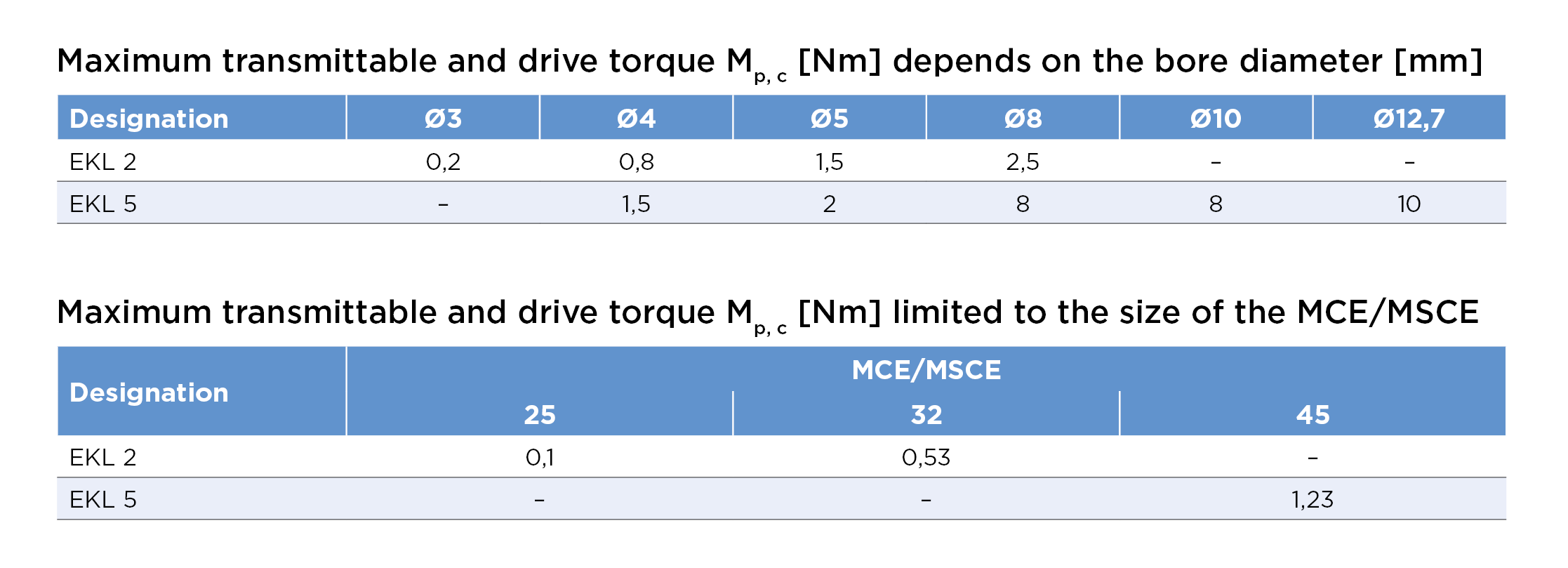

The maximum transmittable torque of the clamping hub depends on the bore diameter.
The maximum transmittable torque of the clamping hub depends on the bore diameter.
Last ned PDF (alle data)
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Rated Torque (Nm) | Max. Torque (Nm) | G | A | B | H | F | C | D1 | D2 | E | Tightening Torque of the Clamping Screw (Nm) | Compatible with | Moment of inertia per hub (10⁻³ kg m²) | Speed standard (min⁻¹) | BS | DE | Weight (kg) | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 2 | 4 | 3 | 20 | 16 | 12 | 5.5 | 6 | 3 | 8 | M2 | 0.6 | MCE/MSCE series | 0.0003 | 15000 | 17 | 6.2 | ≈ 0.008 |
|
||
|
|
2 | 9 | 18 | 4 | 26 | 25 | 16.7 | 8 | 8 | 4 | 12.7 | M3 | 2 | MCE/MSCE 45 | 0.002 | 15000 | 25 | 10.2 | ≈ 0.02 |
|
