PNCE
Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
Couplings
Dimension in mm.

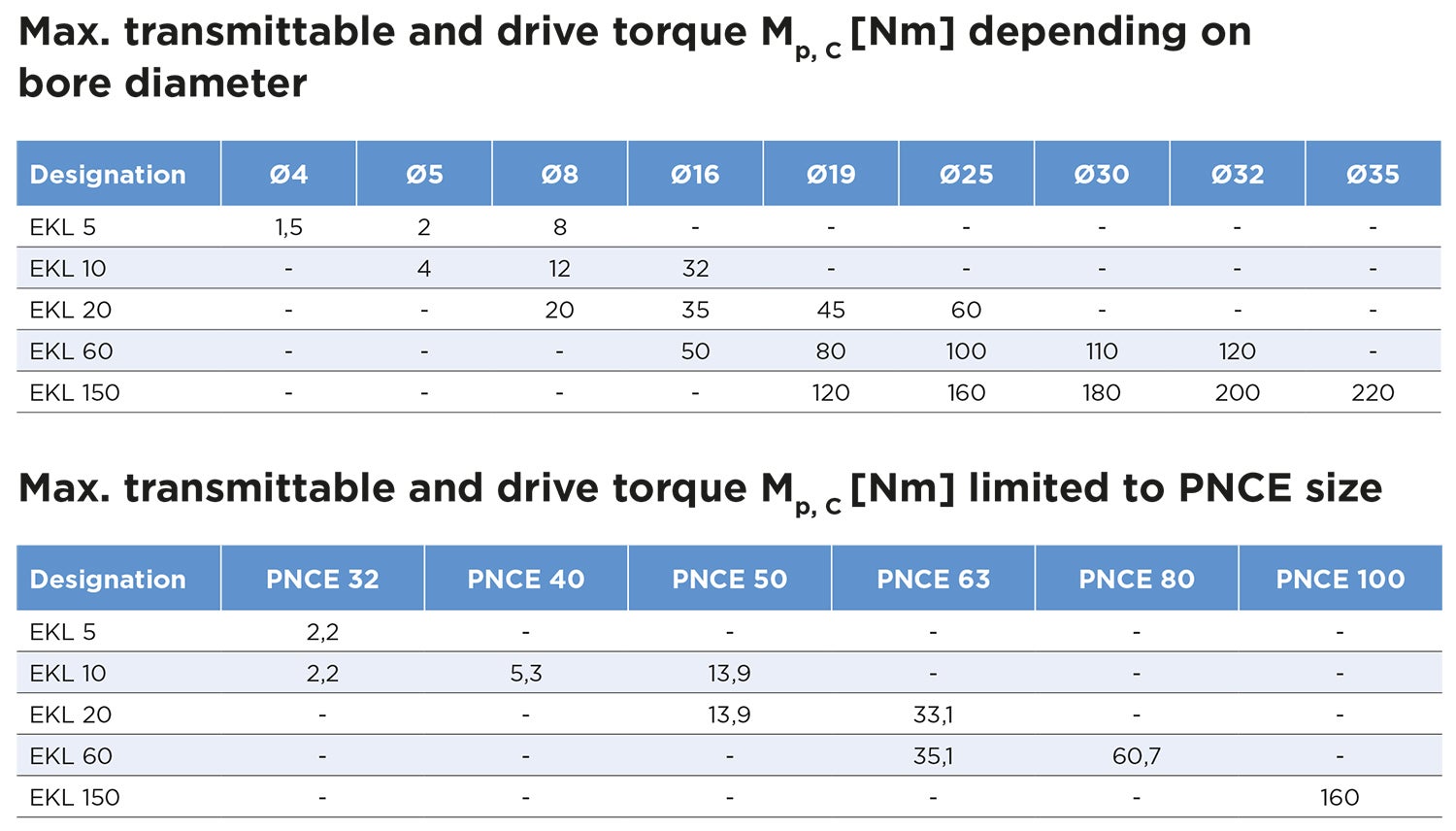

The maximum transmittable torque of the clamping hub depends on the bore diameter and is limited to the size of the PNCE.
Read more
The maximum transmittable torque of the clamping hub depends on the bore diameter and is limited to the size of the PNCE.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Moment of inertia per hub (10⁻³ kg m²) | Speed standard (min⁻¹) | Max. Torque (Nm) | Rated Torque (Nm) | Tightening Torque of the Clamping Screw (Nm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 0.002 | 15000 | 18 | 9 | 2 | ≈ 0.02 | ||
|
|
|
2 | 0.003 | 13000 | 25 | 12.5 | 4 | ≈ 0.05 | ||
|
|
|
2 | 0.01 | 12500 | 34 | 17 | 8 | ≈ 0.12 | ||
|
|
|
2 | 0.04 | 11000 | 120 | 60 | 15 | ≈ 0.3 | ||
|
|
|
2 | 0.08 | 10000 | 320 | 160 | 35 | ≈ 0.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
