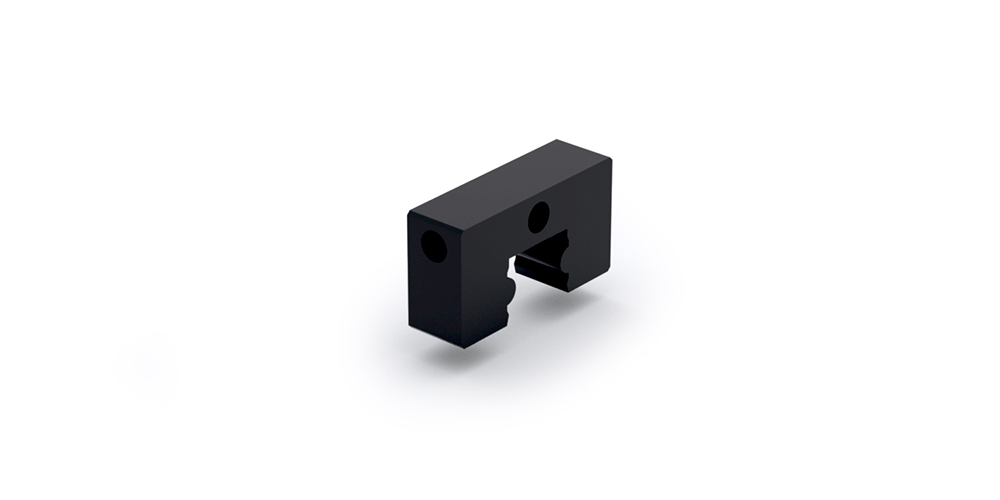

Lube Unit with Sealing Function

Lube units with sealing function are used in applications with higher mileage or in dirty environments. Located inside the blocks and impregnated with oil ISO VG100, they ensure a continuous lubrication and simultaneously act as front seals. Due to this a service life of 12500 km is possible, without further lubrication. After it is possible to lubricate via the lubrication oil connections or the enclosed grease nipple. Optimally is when you replace the whole unit. The lube units are simply pushed over the rail and mounted by the attached bayonet fittings at the front side of the runner block, when the existing seal unit is removed.

Dimensions in mm.
Download PDF

Product Information

Technical Drawing
Designation Lead Time * Lubrication Remark
2 Oil 0,65 cm3 Supplied grease nipple nSN-00M3 Get quote
1 Oil 1,35 cm3 Supplied grease nipplenGN-00M6 Get quote
1 Oil 1,7 cm3 Supplied grease nipple nGN-00M6 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation B H h h2 S T W
11,50 24 0,40 19,40 M3 4,50 31,70 Get quote
15,50 30 0,40 24,30 M6 5 43,20 Get quote
17,20 36 3,40 30 M6 7,60 47,20 Get quote
