DSS28

LOCALLY MANUFACTURED

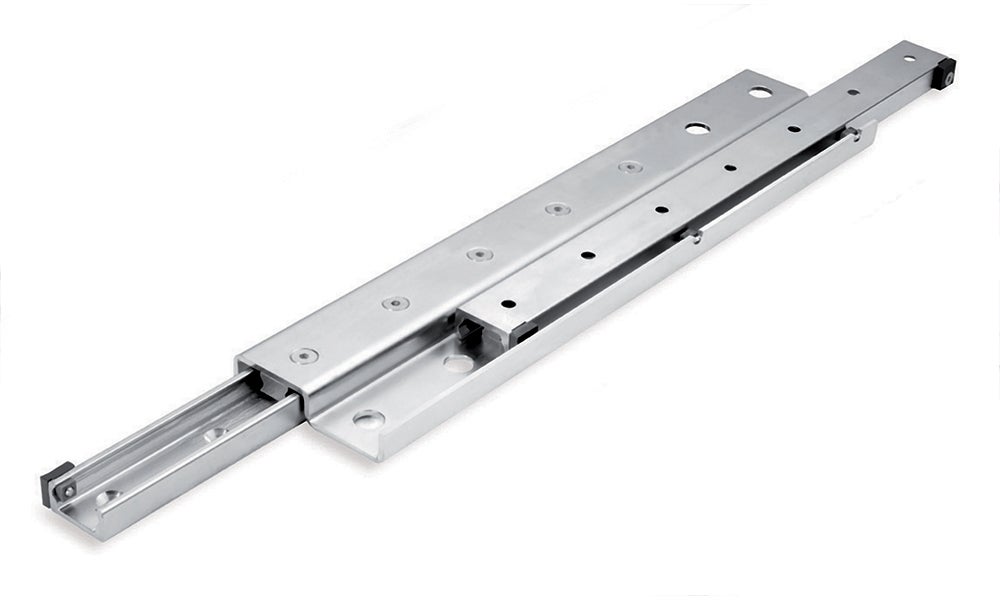

Full extension consisting of two guide rails made of fixed and movable elements and an S-shaped intermediate element. This has a high moment of inertia and high rigidity with slim size. This results in a high loading capacity with low deflection in the extended state.

The DS series is available in three different designs: Version S with one-sided extension, Version B with locking in the extracted state for one-sided extension (DSB) and Version D with double-sided extension (DSD)."

Number of holes shown in table are accessible holes/total holes.

Dimensions in mm.

System Load Capacity Radial value refers to a pair of rails.

Product Information

Designation Select all Lead Time * Length Stroke Number of Fixing Holes Weight (kg/m)
2 290 296 3/4 6,40
Get quote
2 370 380 4/5 6,40
Get quote
2 450 464 4/6 6,40
Get quote
2 530 548 6/7 6,40
Get quote
2 610 630 6/8 6,40
Get quote
2 690 714 7/9 6,40
Get quote
2 770 798 7/10 6,40
Get quote
2 850 864 9/11 6,40
Get quote
2 930 950 9/12 6,40
Get quote
2 1010 1034 10/13 6,40
Get quote
2 1090 1118 10/14 6,40
Get quote
2 1170 1202 12/15 6,40
Get quote
2 1250 1266 12/16 6,40
Get quote
2 1330 1350 13/17 6,40
Get quote
2 1410 1434 13/18 6,40
Get quote
2 1490 1518 15/19 6,40
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Load Capacity Radial (N)
1140
Get quote
1538
Get quote
1938
Get quote
2340
Get quote
2752
Get quote
3154
Get quote
3556
Get quote
4222
Get quote
4480
Get quote
4108
Get quote
3792
Get quote
3522
Get quote
3390
Get quote
3172
Get quote
2980
Get quote
2810
