210 Non Lock - 100% Extension

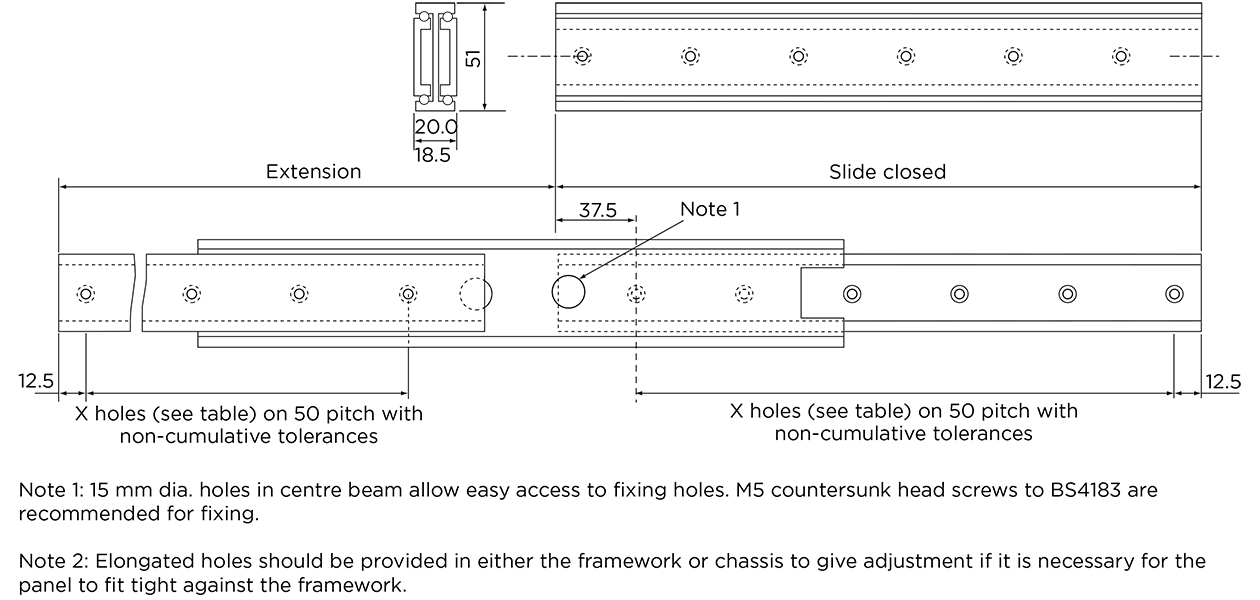

Note 1: 15 mm dia. holes in centre beam allow easy access to fixing holes. M5 countersunk head screws to BS4183 are recommended for fixing.

Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.

All dimensions in mm.

System Load Capacity value refers to a pair of rails.

Product Information

Designation Select all Lead Time * Closed Length Extension Length System Load Capacity (N) Number of Fixing Holes
2 300 330 550 6
Get quote
1 350 380 620 7
Get quote
1 400 430 710 8
Get quote
1 450 480 780 9
Get quote
1 500 530 840 10
Get quote
1 550 580 880 11
Get quote
1 600 630 900 12
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
