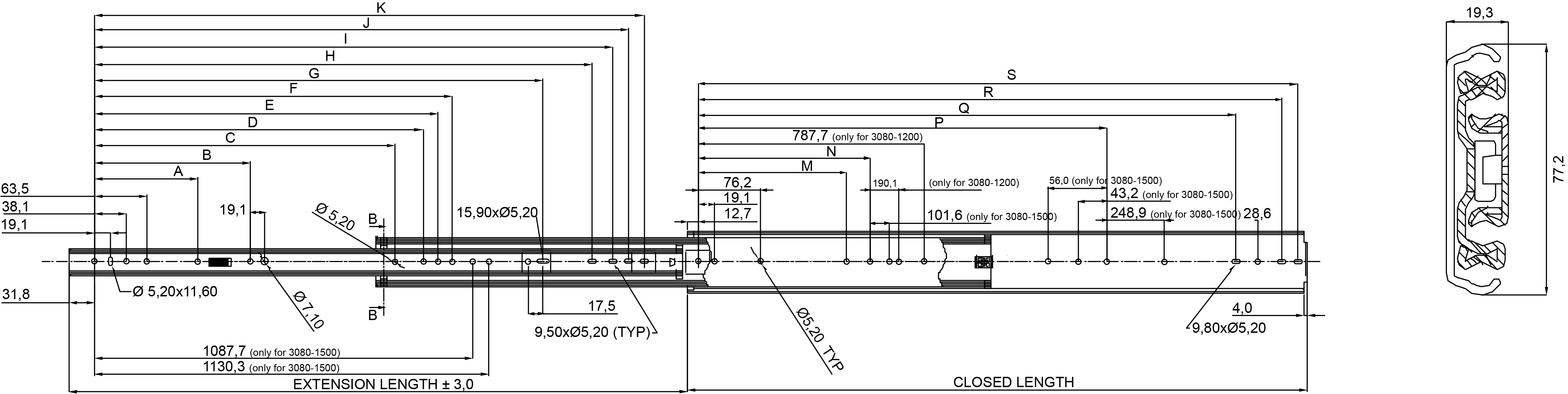

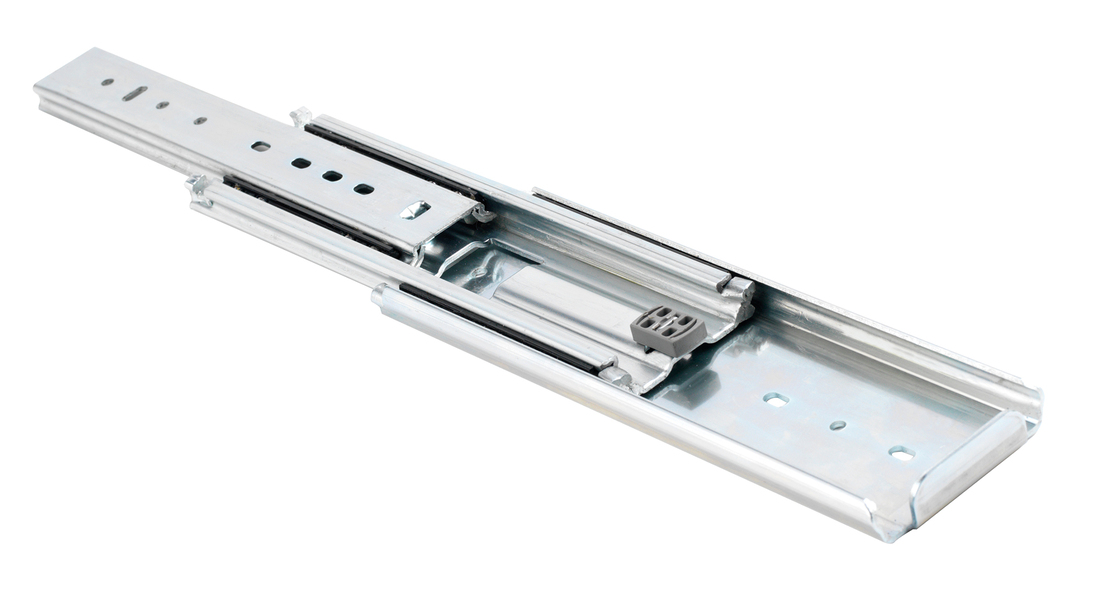

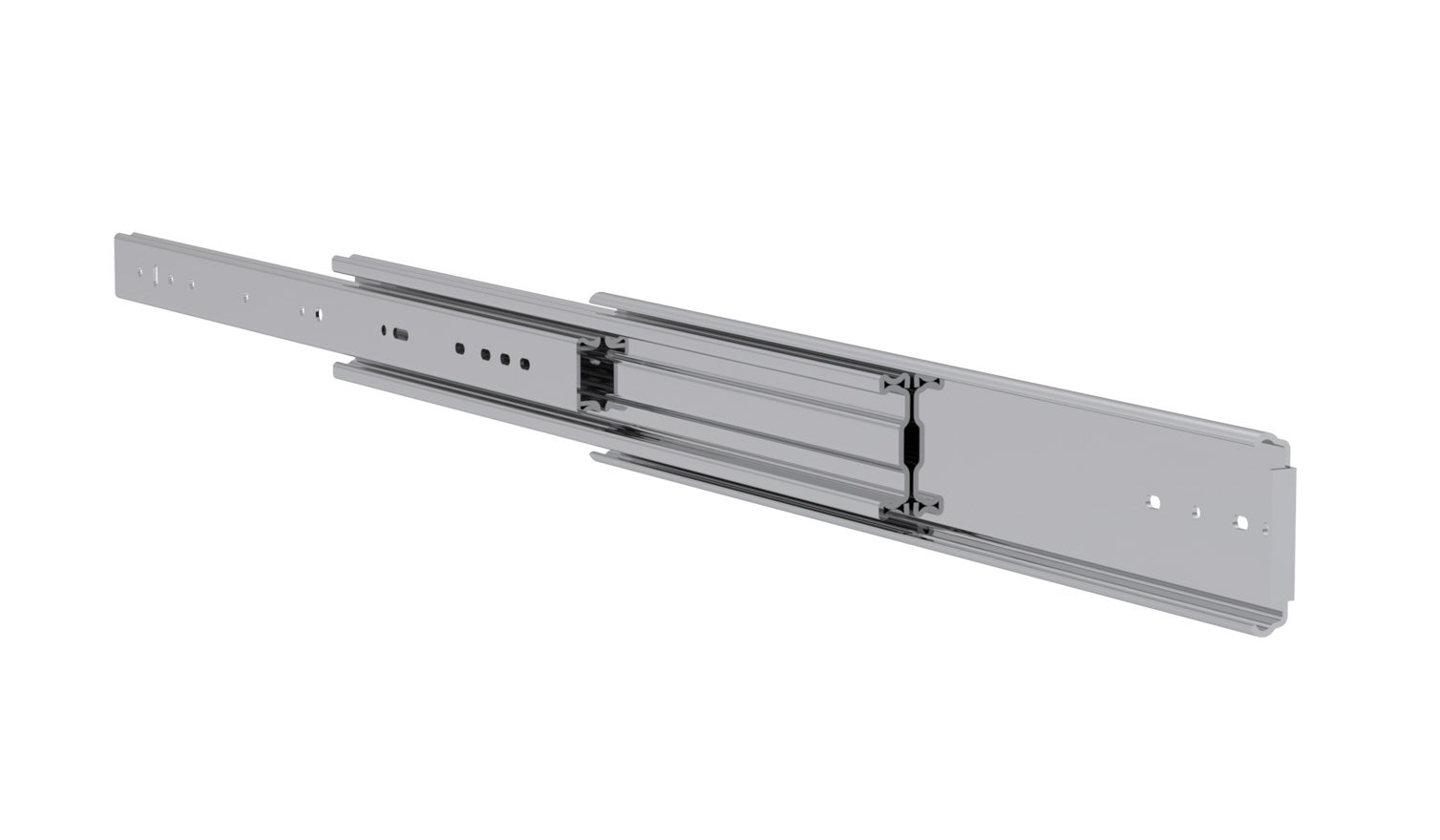

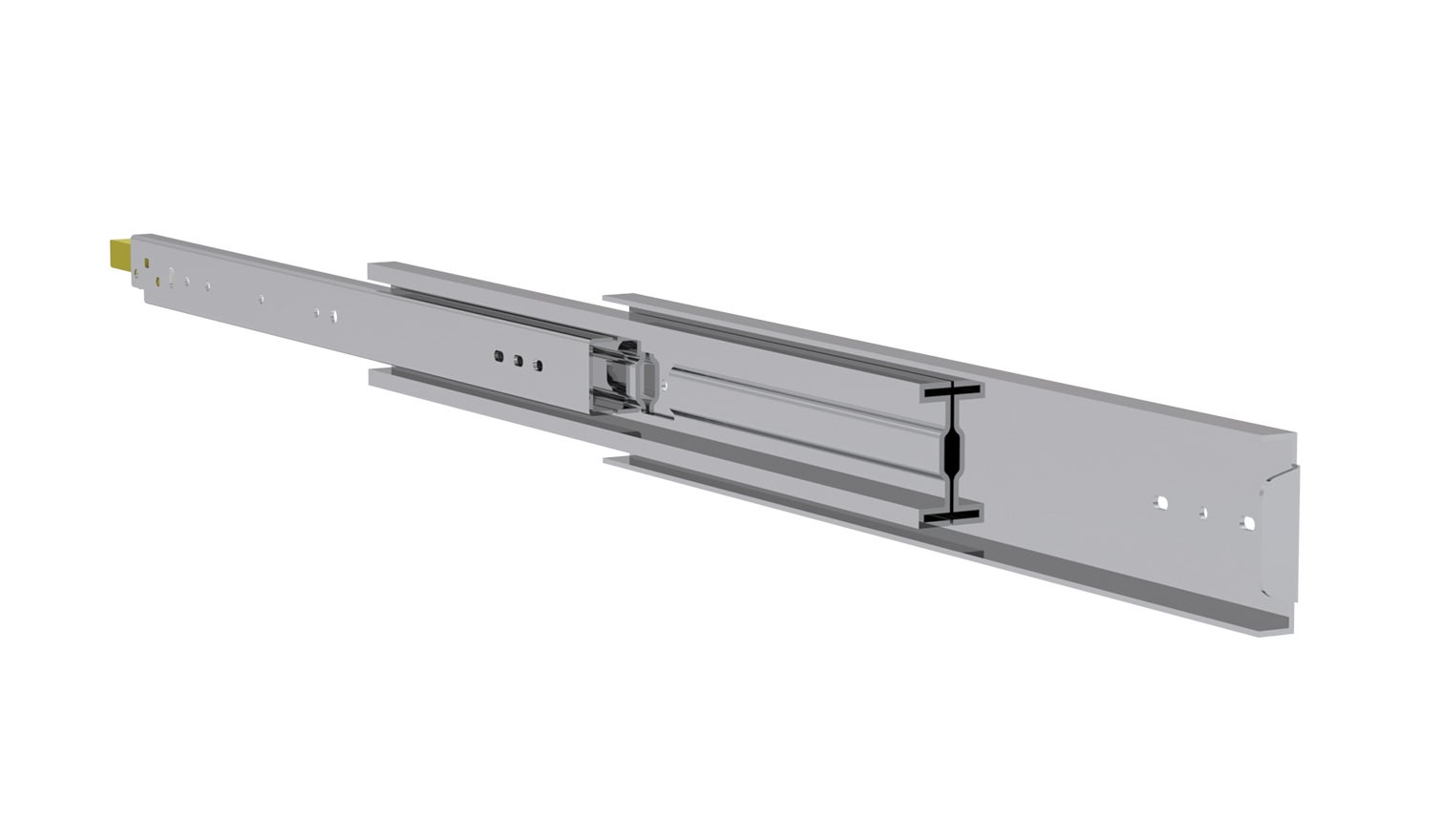

3080 - 100% Extension
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
System Load Capacity value refers to a pair of rails.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | ||
|---|---|---|---|---|---|---|---|
|
|
1 | 304 | 304 | 1780 |
|
||
|
|
1 | 406 | 406 | 1780 |
|
||
|
|
1 | 508 | 508 | 1780 |
|
||
|
|
1 | 609 | 609 | 1690 |
|
||
|
|
1 | 711 | 711 | 1600 |
|
||
|
|
1 | 812 | 812 | 1510 |
|
||
|
|
1 | 914 | 914 | 1420 |
|
||
|
|
1 | 1016 | 1016 | 1330 |
|
||
|
|
1 | 1117 | 1117 | 1240 |
|
||
|
|
1 | 1219 | 1219 | 1150 |
|
||
|
|
1 | 1320 | 1320 | 1060 |
|
||
|
|
1 | 1422 | 1422 | 1020 |
|
||
|
|
1 | 1524 | 1524 | 890 |
|
