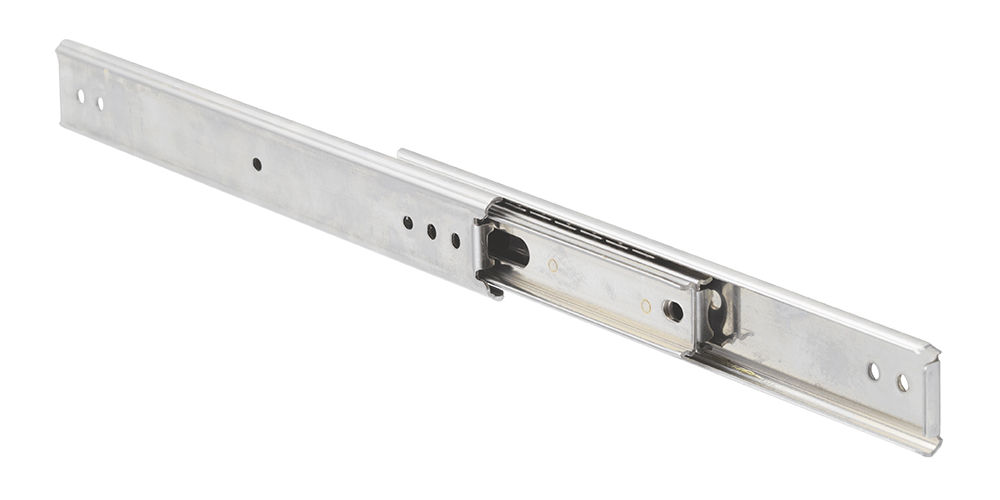

3560 - 100% Extension

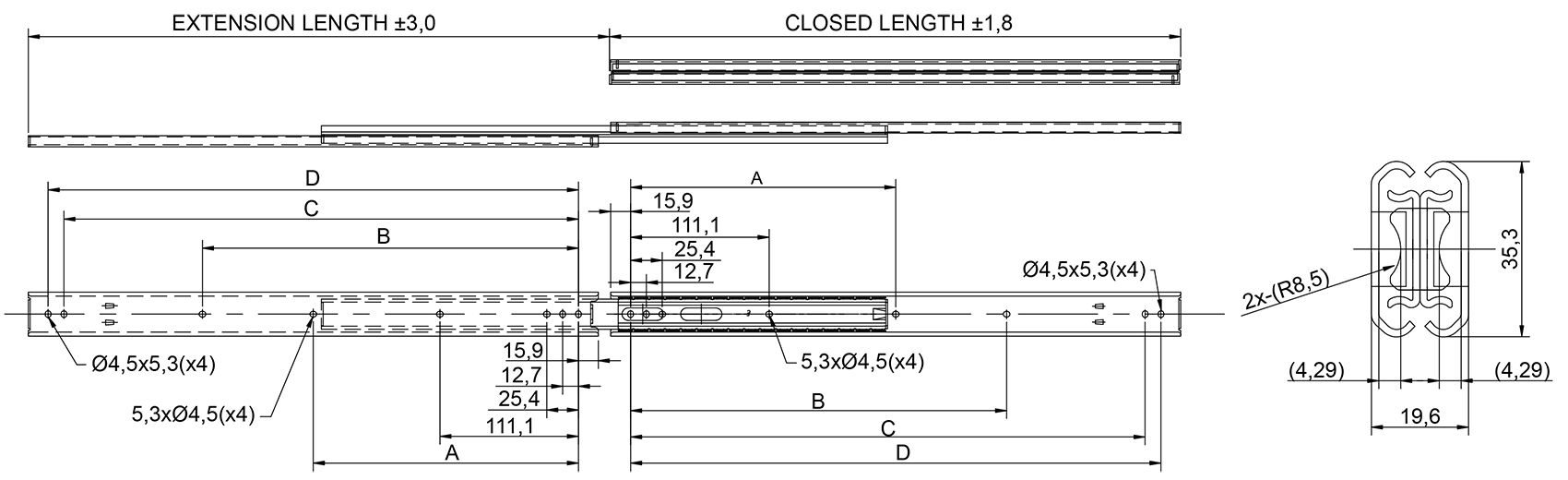

All dimensions in mm.
System Load Capacity value refers to a pair of rails.
System Load Capacity value refers to a pair of rails.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
Material: Slide members and component parts - stainless SUS304. Balls - SUS304.
| Designation | Select all | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | ||
|---|---|---|---|---|---|---|---|
|
|
1 | 254 | 2640 | 600 |
|
||
|
|
1 | 304,80 | 314,80 | 600 |
|
||
|
|
1 | 355,60 | 365,60 | 600 |
|
||
|
|
1 | 406,40 | 416,40 | 600 |
|
||
|
|
1 | 457,20 | 467,20 | 600 |
|
||
|
|
1 | 508 | 518 | 600 |
|
||
|
|
1 | 558,80 | 568,80 | 500 |
|
||
|
|
1 | 609,60 | 619,60 | 450 |
|
||
|
|
1 | 660,40 | 670,40 | 400 |
|
||
|
|
1 | 711,20 | 721,20 | 320 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | A | B | C | D | ||
|---|---|---|---|---|---|---|---|
|
|
- | - | 209,50 | 222,20 |
|
||
|
|
- | 149,20 | 260,30 | 273 |
|
||
|
|
- | 200 | 311,10 | 323,80 |
|
||
|
|
- | 250,80 | 361,90 | 374,60 |
|
||
|
|
212,70 | 301,60 | 412,70 | 425,40 |
|
||
|
|
238,10 | 352,40 | 463,50 | 476,20 |
|
||
|
|
263,50 | 403,20 | 514,30 | 527 |
|
||
|
|
288,90 | 454 | 565,10 | 577,80 |
|
||
|
|
314,30 | 504,80 | 615,90 | 628,60 |
|
||
|
|
339,70 | 555,60 | 666,70 | 679,40 |
|
