SN 43

LOCALLY PRODUCED
Variants below are standard configurations. Other configurations and customer-specific adaptations are available upon request. Please contact us for more information.

Fixing holes (V) for countersunk head screws according to DIN 7991.

Dimensions in mm.
Download PDF

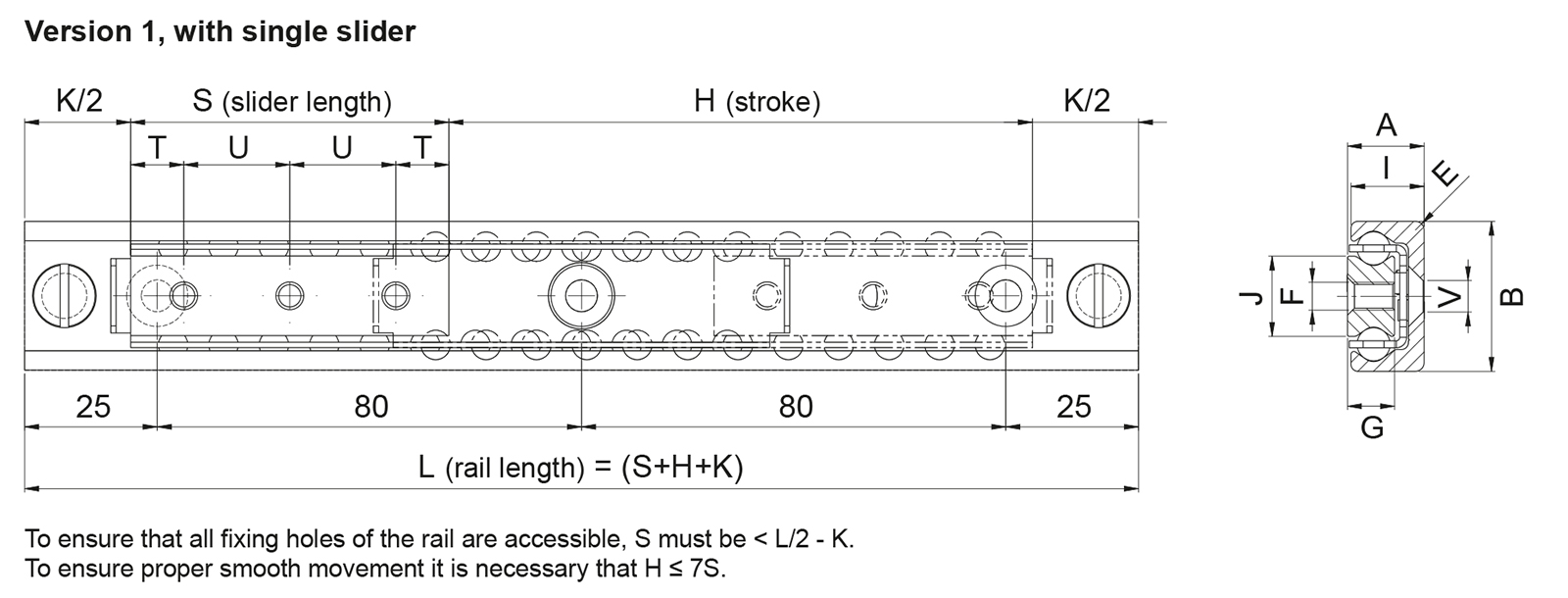

Technical Drawing
Designation Select all Lead Time * A B E F G I J K S T U V Mx moment (Nm) My moment (Nm) Mz moment (Nm)
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 130 25 80 M8 96 211 301
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 210 25 80 M8 155,10 551 786
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 290 25 80 M8 214,10 1 050 1 500
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 370 25 80 M8 273,20 1 709 2 441
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 450 25 80 M8 332,30 2 528 3 611
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 530 25 80 M8 391,40 3 507 5 009
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 610 25 80 M8 450,40 4 645 6 636
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 610 25 80 M8 450,40 4 645 6 636
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 610 25 80 M8 450,40 4 645 6 636
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 610 25 80 M8 450,40 4 645 6 636
Compare
Get quote
2 22 43 2,50 M8 13,50 21 23 50 610 25 80 M8 450,40 4 645 6 636
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

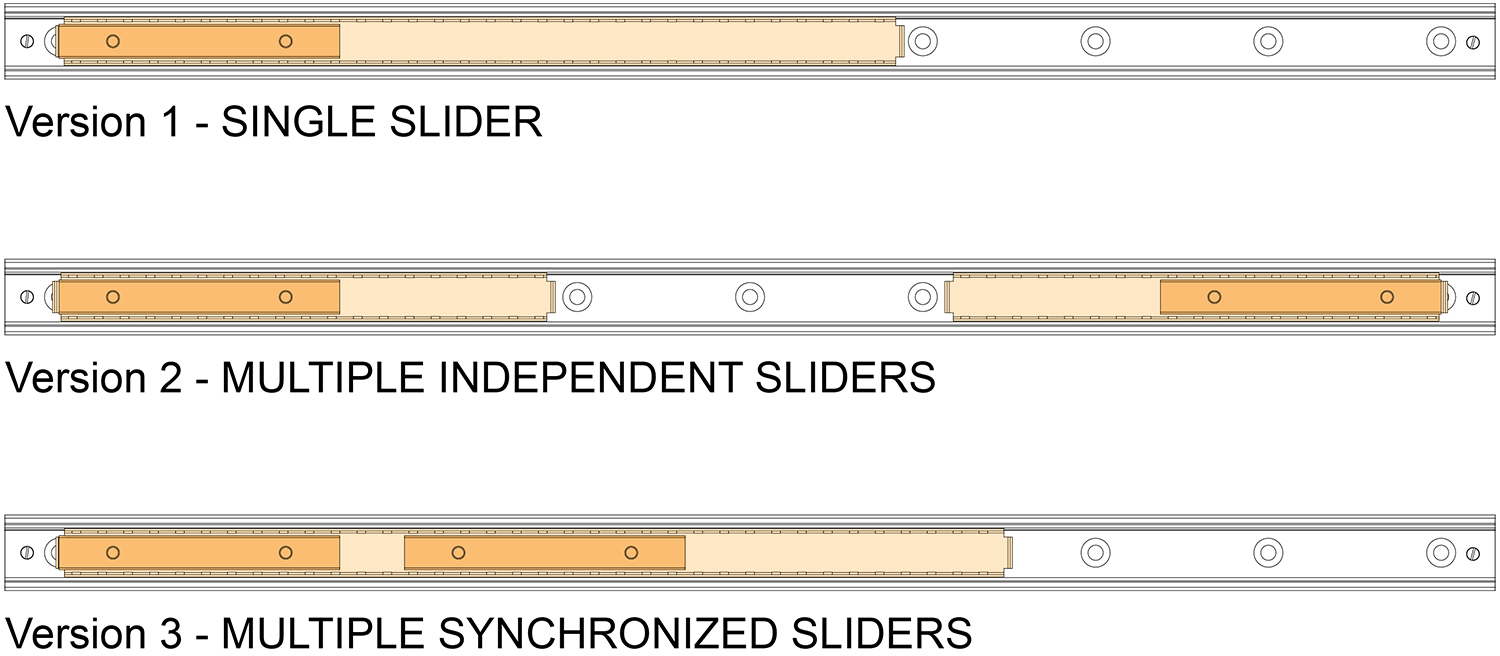

Additional Drawing 1
Designation Select all Length System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
290 13910 N 9737 N 110 2
Compare
Get quote
370 13910 N 9737 N 190 2
Compare
Get quote
450 13910 N 9737 N 270 2
Compare
Get quote
530 13910 N 9737 N 350 2
Compare
Get quote
610 13910 N 9737 N 430 2
Compare
Get quote
690 13910 N 9737 N 510 2
Compare
Get quote
770 13910 N 9737 N 590 2
Compare
Get quote
850 13910 N 9737 N 670 2
Compare
Get quote
930 13910 N 9737 N 750 2
Compare
Get quote
1 010 13910 N 9737 N 830 2
Compare
Get quote
450 22470 N 15729 N 190 3
Compare
Get quote
530 22470 N 15729 N 270 3
Compare
Get quote
610 22470 N 15729 N 350 3
Compare
Get quote
690 22470 N 15729 N 430 3
Compare
Get quote
770 22470 N 15729 N 510 3
Compare
Get quote
850 22470 N 15729 N 590 3
Compare
Get quote
930 22470 N 15729 N 670 3
Compare
Get quote
1 010 22470 N 15729 N 750 3
Compare
Get quote
1 170 22470 N 15729 N 910 3
Compare
Get quote
1 330 22470 N 15729 N 1070 3
Compare
Get quote
1 490 22470 N 15729 N 1230 3
Compare
Get quote
1 650 22470 N 15729 N 1390 3
Compare
Get quote
610 31030 N 21721 N 270 4
Compare
Get quote
690 31030 N 21721 N 350 4
Compare
Get quote
770 31030 N 21721 N 430 4
Compare
Get quote
850 31030 N 21721 N 510 4
Compare
Get quote
930 31030 N 21721 N 590 4
Compare
Get quote
1 010 31030 N 21721 N 670 4
Compare
Get quote
1 170 31030 N 21721 N 830 4
Compare
Get quote
1 330 31030 N 21721 N 990 4
Compare
Get quote
1 490 31030 N 21721 N 1150 4
Compare
Get quote
1 650 31030 N 21721 N 1310 4
Compare
Get quote
1 810 31030 N 21721 N 1470 4
Compare
Get quote
770 39590 N 27713 N 350 5
Compare
Get quote
850 39590 N 27713 N 430 5
Compare
Get quote
930 39590 N 27713 N 510 5
Compare
Get quote
1 010 39590 N 27713 N 590 5
Compare
Get quote
1 170 39590 N 27713 N 750 5
Compare
Get quote
1 330 39590 N 27713 N 910 5
Compare
Get quote
1 490 39590 N 27713 N 1070 5
Compare
Get quote
1 650 39590 N 27713 N 1230 5
Compare
Get quote
1 810 39590 N 27713 N 1390 5
Compare
Get quote
930 48150 N 33750 N 430 6
Compare
Get quote
1 010 48150 N 33750 N 510 6
Compare
Get quote
1 170 48150 N 33750 N 670 6
Compare
Get quote
1 330 48150 N 33750 N 830 6
Compare
Get quote
1 490 48150 N 33750 N 990 6
Compare
Get quote
1 650 48150 N 33750 N 1150 6
Compare
Get quote
1 810 48150 N 33750 N 1310 6
Compare
Get quote
1 970 48150 N 33750 N 1470 6
Compare
Get quote
1 170 56710 N 39697 N 590 7
Compare
Get quote
1 330 56710 N 39697 N 750 7
Compare
Get quote
1 490 56710 N 39697 N 910 7
Compare
Get quote
1 650 56710 N 39697 N 1070 7
Compare
Get quote
1 810 56710 N 39697 N 1230 7
Compare
Get quote
1 970 56710 N 39697 N 1390 7
Compare
Get quote
1 330 65270 N 45689 N 670 8
Compare
Get quote
1 490 65270 N 45689 N 830 8
Compare
Get quote
1 650 65270 N 45689 N 990 8
Compare
Get quote
1 810 65270 N 45689 N 1150 8
Compare
Get quote
1 970 65270 N 45689 N 1310 8
Compare
Get quote
