LMEK...LUU

Dimensions in mm.
Other types available on request.
Download PDF

Product Information

Material: 100Cr6
Designation Lead Time * Dynamic Load Capacity Static Load Capacity Number Of Ball Rows
1 657 N 1200 N 4 Get quote
1 657 N 2350 N 5 Get quote
1 1230 N 2750 N 5 Get quote
1 1400 N 3140 N 6 Get quote
1 1560 N 5490 N 6 Get quote
1 2490 N 8040 N 6 Get quote
1 3430 N 16220 N 6 Get quote
2 6200 N 20400 N 6 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

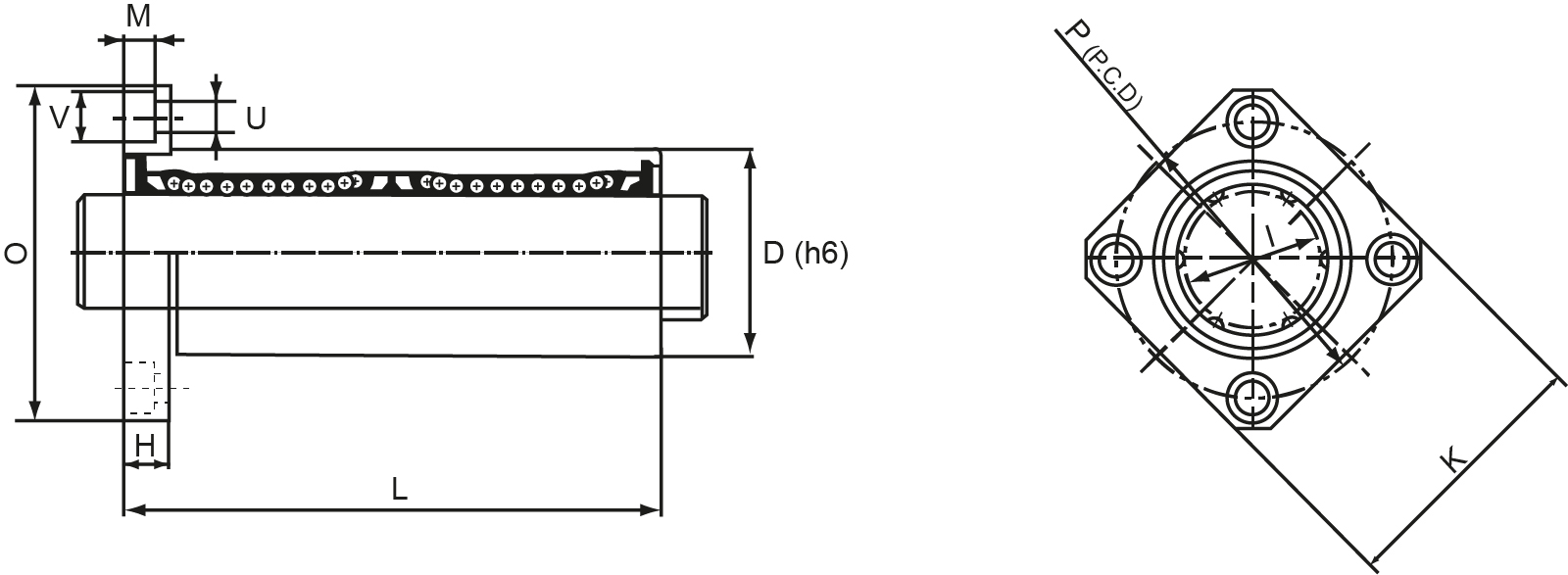

Technical Drawing
Designation I D L O H K M P U V
12 22 61 42 6 32 4,40 32 4,50 8 Get quote
16 26 68 46 6 35 4,40 36 4,50 8 Get quote
20 32 80 54 8 42 5,40 43 5,50 9,50 Get quote
25 40 112 62 8 50 5,40 51 5,50 9,50 Get quote
30 47 123 76 10 60 6,50 62 6,60 11 Get quote
40 62 152 98 13 75 8,60 80 9 14 Get quote
50 75 192 112 13 88 8,60 94 9 14 Get quote
60 90 209 134 18 106 11 112 11 17 Get quote
