WV

Surface hardness: 59 HRC min.
Chrome layer thickness: ca. 10 µm.
Layer hardness: ≥ 800 HV.
Hardening depth according to ISO 18203.
Standard tolerance ISO h7

Other types available on request.
Download PDF

Product Information

Material: E. g. quenched and tempered steel Cf53 / 1.1213
Designation Lead Time * Weight
1 0,62 kg/m Get quote
1 0,89 kg/m Get quote
1 1,56 kg/m Get quote
1 2,47 kg/m Get quote
1 3,85 kg/m Get quote
1 5,55 kg/m Get quote
1 9,86 kg/m Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

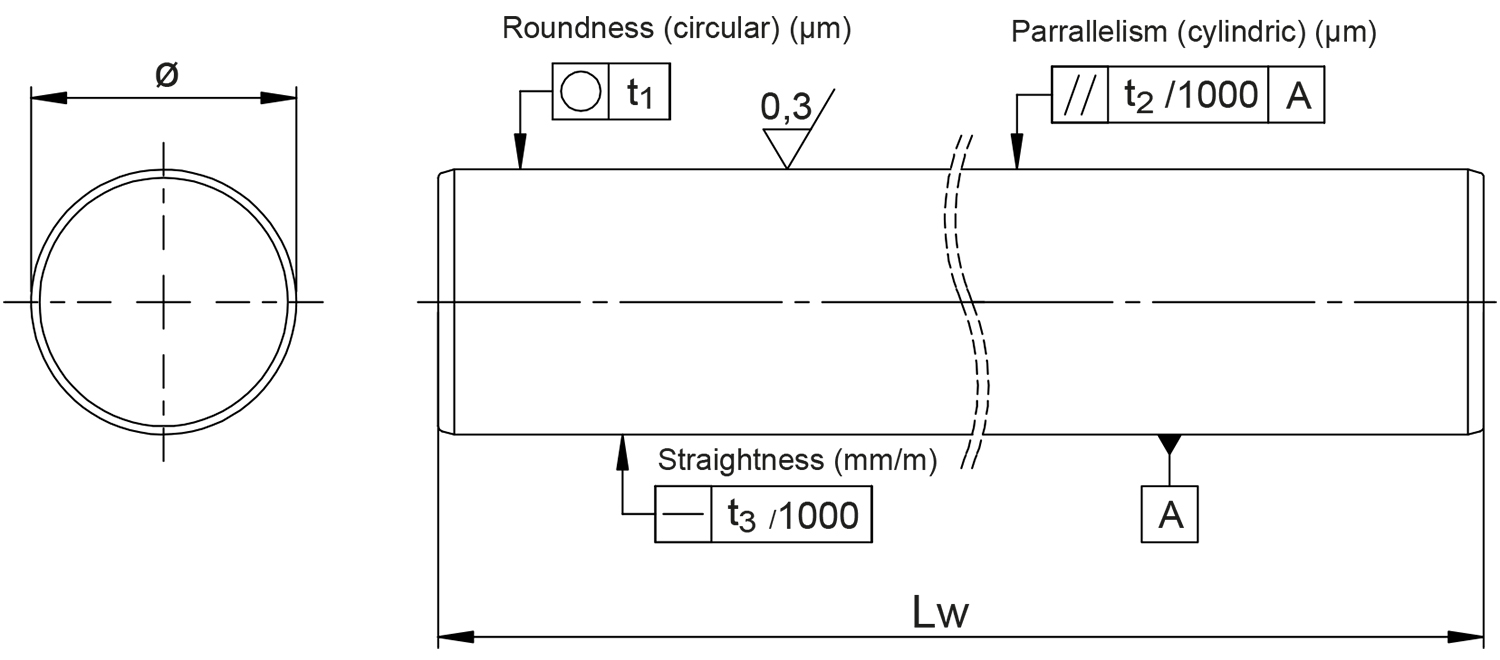

Technical Drawing
Designation Diameter Hardening Depth Standard Tolerance Roundness Parallelism Straightness
10 0,40 0/-15 6 9 0,10 Get quote
12 0,60 0/-18 8 11 0,10 Get quote
16 0,60 0/-18 8 11 0,10 Get quote
20 0,90 0/-21 9 13 0,10 Get quote
25 0,90 0/-21 9 13 0,10 Get quote
30 0,90 0/-21 9 13 0,10 Get quote
40 1,50 0/-25 11 16 0,10 Get quote
  • Hardened precision steel shaft, Ø 5-80 mm.

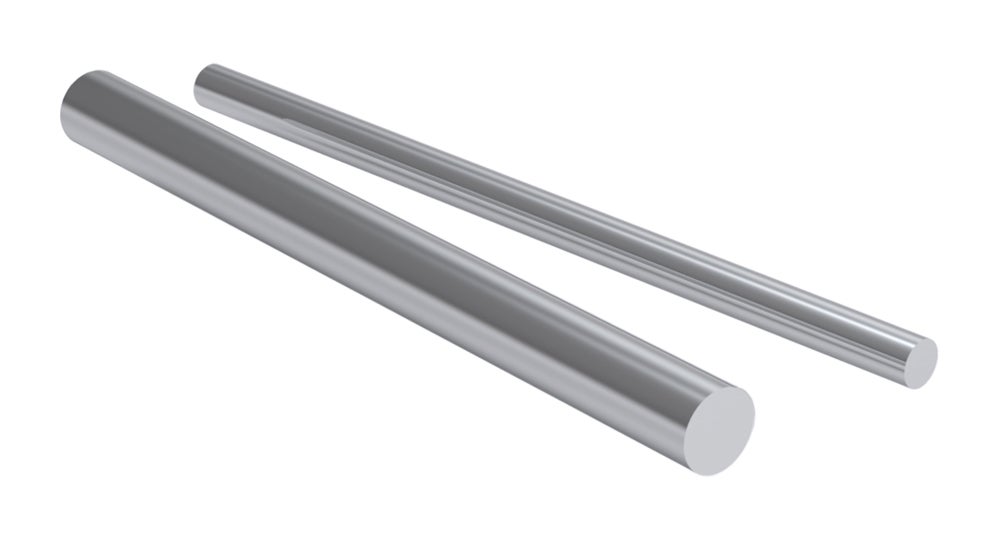

  • Hardened precision stainless steel shaft X46, Ø 5-60 mm.
  • Hardened precision stainless steel shaft X90, Ø 8-50 mm.

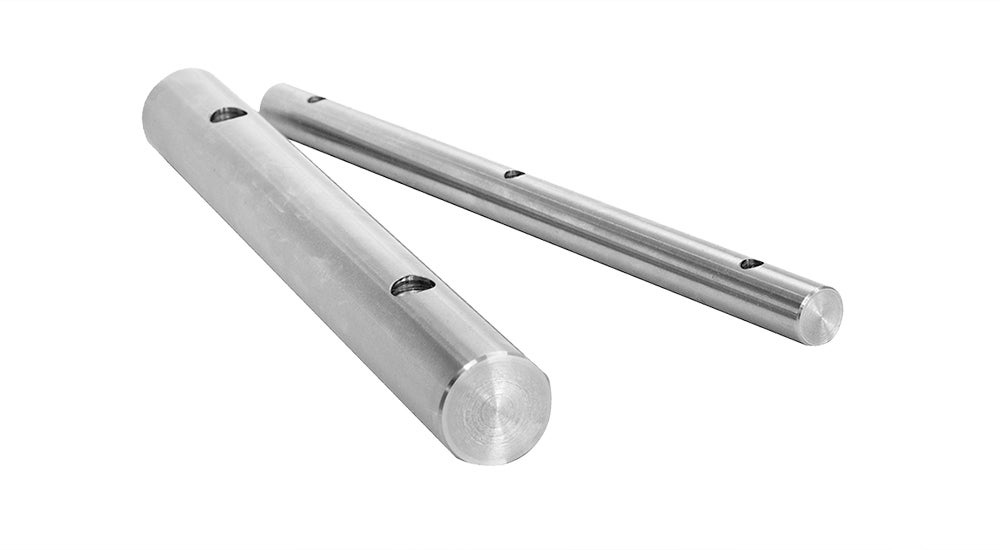

  • Hardened precision steel shaft predrilled, Ø 12-40 mm.

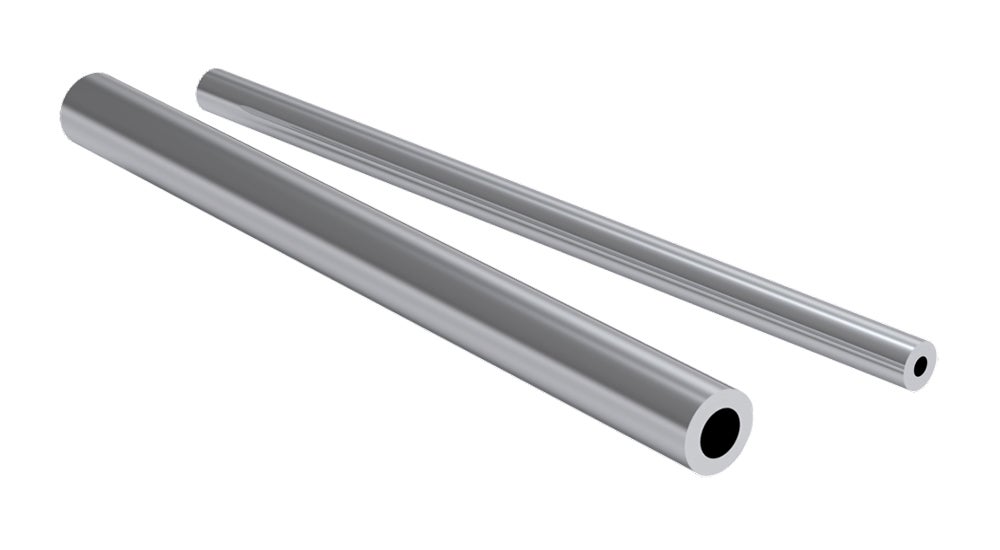

  • Hardened precision steel shaft hollow, Ø 12-60 mm.
