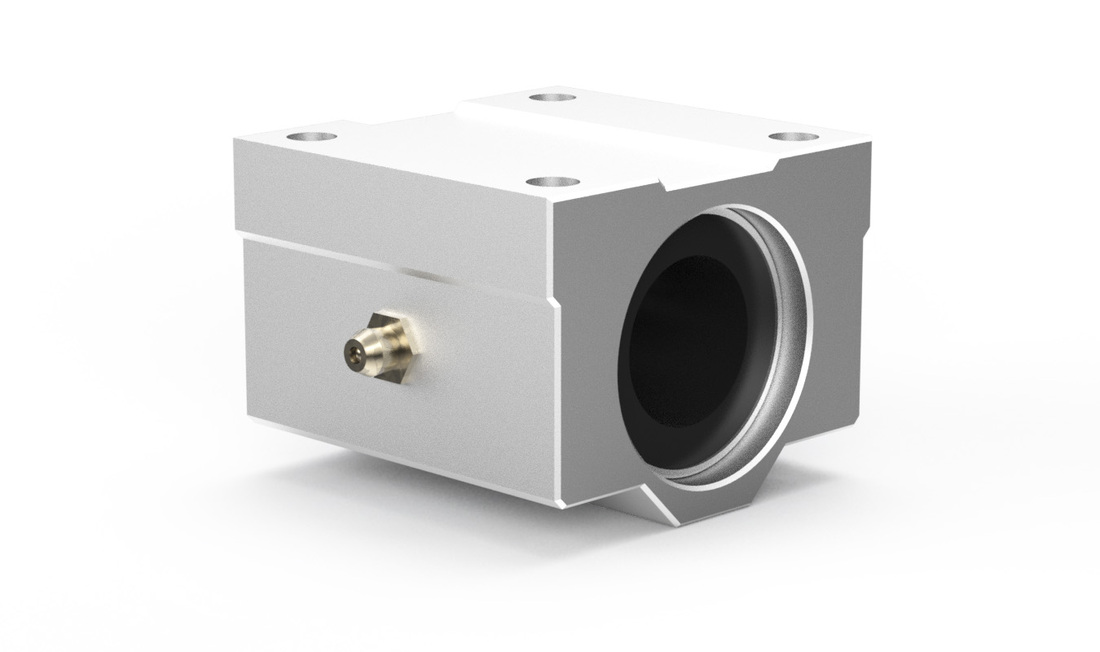

KBA...UU

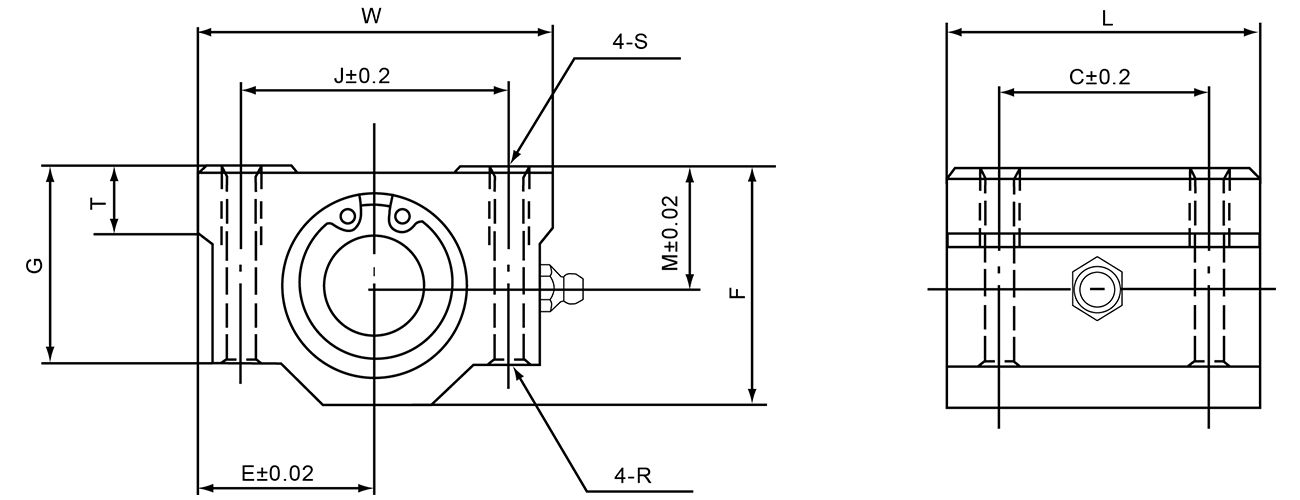

Dimensions in mm.
Other types available on request.
NOTE: Linear Units can also be supplied with self-aligning SBE-Bushing (KBE...UU) or stainless LMES-Bushing (KBS..UU).
Other types available on request.
NOTE: Linear Units can also be supplied with self-aligning SBE-Bushing (KBE...UU) or stainless LMES-Bushing (KBS..UU).
| Designation | Lead Time * | Dynamic Load Capacity | Static Load Capacity | ||
|---|---|---|---|---|---|
|
|
1 | 520 N | 740 N | Get quote | |
|
|
1 | 590 N | 910 N | Get quote | |
|
|
1 | 880 N | 1400 N | Get quote | |
|
|
1 | 1000 N | 1600 N | Get quote | |
|
|
1 | 1600 N | 2800 N | Get quote | |
|
|
1 | 2200 N | 4000 N | Get quote | |
|
|
1 | 3900 N | 8100 N | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | L | W | C | E | F | G | J | M | R | S | T | Inscribed Circle Diameter | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
39 | 44 | 26 | 22 | 30 | 24,50 | 33 | 15 | 4,30 | M5 | 8 | 12 | Get quote | |
|
|
44 | 50 | 34 | 25 | 38,50 | 32,50 | 36 | 19 | 4,30 | M5 | 9 | 16 | Get quote | |
|
|
53 | 54 | 40 | 27 | 41 | 35 | 40 | 21 | 5,20 | M6 | 11 | 20 | Get quote | |
|
|
67 | 76 | 50 | 38 | 51,50 | 42 | 54 | 26 | 7 | M8 | 12 | 25 | Get quote | |
|
|
76 | 78 | 58 | 39 | 59,50 | 49 | 58 | 30 | 7 | M8 | 15 | 30 | Get quote | |
|
|
90 | 102 | 60 | 51 | 78 | 62 | 80 | 40 | 8,70 | M10 | 20 | 40 | Get quote | |
|
|
110 | 122 | 80 | 61 | 102 | 80 | 100 | 52 | 8,70 | M10 | 25 | 50 | Get quote |
