WH

Surface hardness: 59 HRC min.
Hardening depth according to ISO 18203.
Standard tolerance ISO h7.

Dimensions in mm.

Other types available on request.
Contact us for CAD-files.
Download PDF

Product Information

Material: E. g. quenched and tempered steel Cf53 / 1.1213
Designation Lead Time * Weight
2 0,79 kg/m Get quote
1 1,28 kg/m Get quote
1 1,25 kg/m Get quote
1 2,35 kg/m Get quote
2 3,5 kg/m Get quote
2 4,99 kg/m Get quote
2 9,91 kg/m Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Diameter Inner Diameter Standard Tolerance Roundness Parallelism Straightness Remark
12 4 0/-18 8 8 0,30 - Get quote
16 7 0/-18 8 8 0,30 - Get quote
20 14 0/-21 9 9 0,30 Optional Straightness 0,2 Get quote
25 15,60 0/-21 9 9 0,30 Optional Straightness 0,2 Get quote
30 18,30 0/-21 9 9 0,30 Optional Straightness 0,2 Get quote
40 28 0/-25 11 11 0,30 Optional Straightness 0,1 Get quote
50 29,70 0/-25 11 11 0,20 Optional Straightness 0,1 Get quote
  • Hardened precision steel shaft, Ø 5-80 mm.

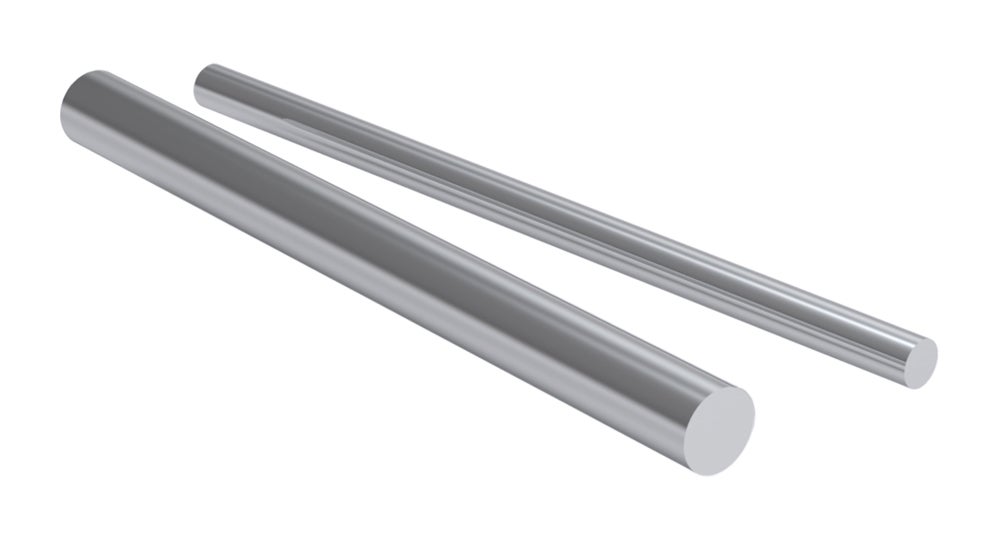

  • Chrome plated hardened precision shaft, Ø 10-40 mm.
  • Hardened precision stainless steel shaft X46, Ø 5-60 mm.
  • Hardened precision stainless steel shaft X90, Ø 8-50 mm.
  • Hardened precision steel shaft predrilled, Ø 12-40 mm.
