SBE

Dimensions in mm.
Other types available on request.
Download PDF

Product Information

Material: N/A
Designation Lead Time * Dynamic Load Capacity Static Load Capacity Number Of Ball Rows
1 1530 N 1280 N 5 Get quote
1 2630 N 1700 N 6 Get quote
1 3880 N 2810 N 6 Get quote
1 4810 N 2860 N 6 Get quote
1 6630 N 5840 N 6 Get quote
1 11690 N 8100 N 6 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

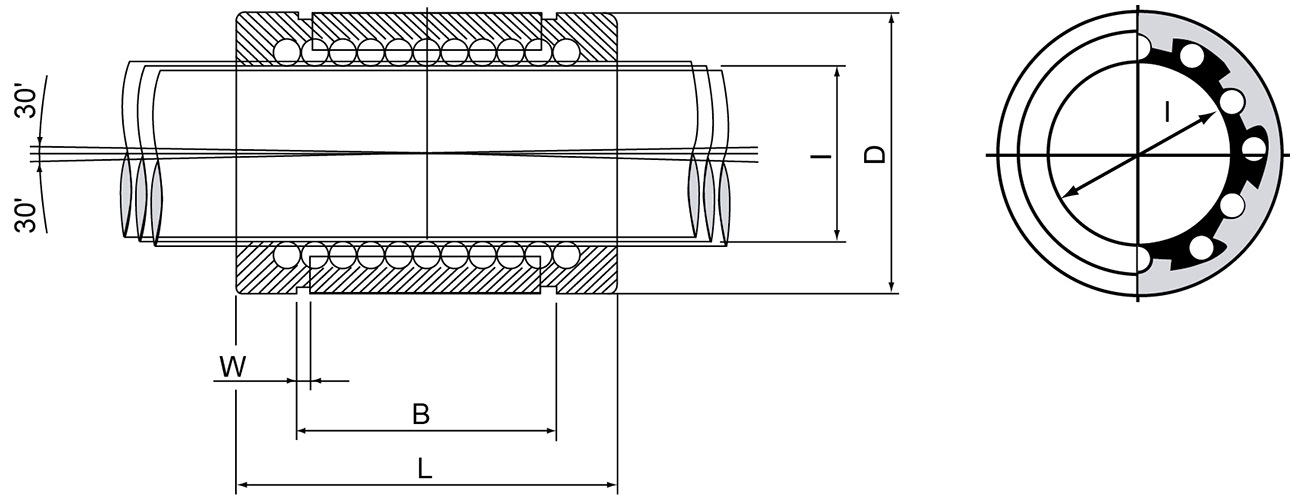

Technical Drawing
Designation I D L W B
16 26 36 1,30 24,60 Get quote
20 32 45 1,60 31,20 Get quote
25 40 58 1,85 43,70 Get quote
30 47 68 1,85 51,70 Get quote
40 62 80 2,15 60,30 Get quote
50 75 100 2,65 77,30 Get quote
  • Closed type, linear ball bearing, Ø 5-60 mm.
  • Closed type stainless, linear ball bearing Ø 8-40 mm.
  • Open type, linear ball bearing, Ø 12-50 mm.
  • Compact type, linear ball bearing, Ø 6-50 mm.
