SBE
Self-aligning closed type linear ball bearing, Ø 16-50 mm.

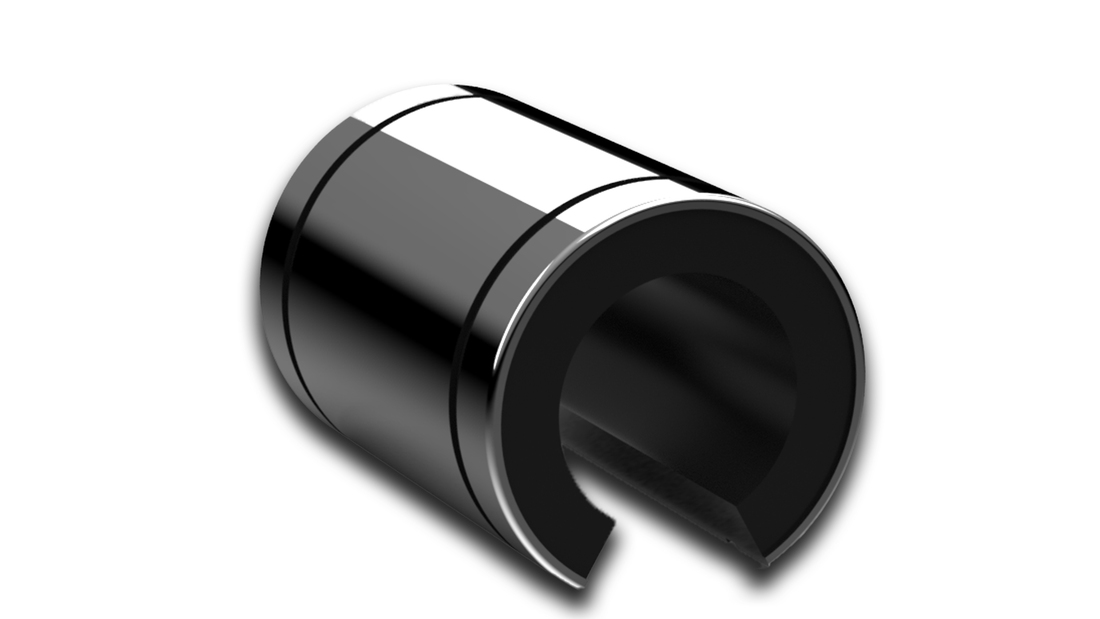

LME….UUOP
Dimensions in mm.
Other types available on request.
Other types available on request.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
| Designation | Select all | Lead Time * | Dynamic Load Capacity (N) | Static Load Capacity (N) | Number Of Ball Rows | ||
|---|---|---|---|---|---|---|---|
|
|
1 | 520 | 790 | 3 |
|
||
|
|
1 | 590 | 910 | 4 |
|
||
|
|
1 | 880 | 1400 | 4 |
|
||
|
|
1 | 1000 | 1600 | 5 |
|
||
|
|
2 | 1600 | 2800 | 5 |
|
||
|
|
1 | 2200 | 4000 | 5 |
|
||
|
|
2 | 3900 | 8100 | 5 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

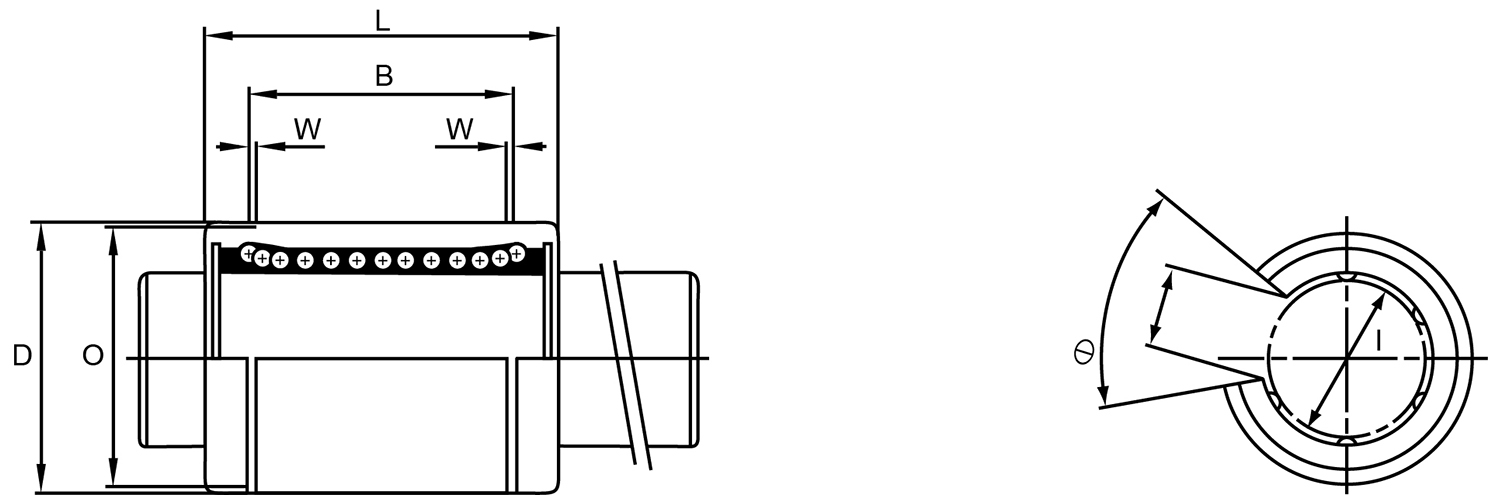

| Designation | Select all | I | D | L | W | B | O | Theta_θ | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
12 | 22 | 32 | 1,30 | 22,90 | 21 | 78° |
|
||
|
|
16 | 26 | 36 | 1,30 | 24,90 | 24,90 | 78° |
|
||
|
|
20 | 32 | 45 | 1,60 | 31,50 | 30,30 | 60° |
|
||
|
|
25 | 40 | 58 | 1,85 | 44,10 | 37,50 | 60° |
|
||
|
|
30 | 47 | 68 | 1,85 | 52,10 | 44,50 | 60° |
|
||
|
|
40 | 62 | 80 | 2,15 | 60,60 | 59 | 60° |
|
||
|
|
50 | 75 | 100 | 2,65 | 77,60 | 72 | 60° |
|
