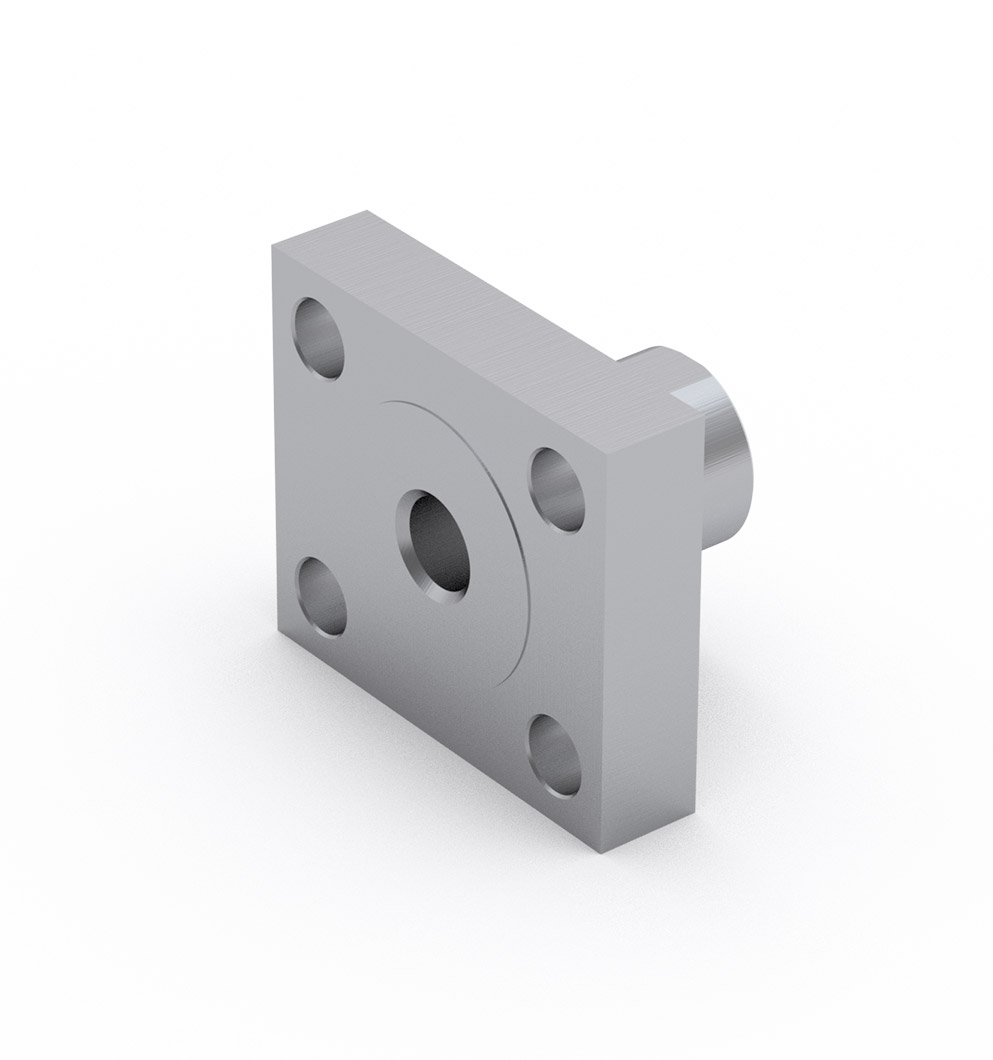

Coupling piece KSZ
Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | KSZ 25 | MCE 25 | Galvanized steel | F MCE | 0.05 | ||||
|
|
|
2 | KSZ 32 | MCE 32 | Galvanized steel | F MCE | 0.07 | ||||
|
|
|
2 | KSZ 45 | MCE 45 | Galvanized steel | F MCE | 0.11 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | CH | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
M6 | 30 | 25 | 20 | 15 | 16 | 8 | 0.1 | 12^-0.1 | 18 | 5.5 | 10 | ||||
|
|
|
M8 | 35 | 30 | 25 | 20 | 22 | 8 | 0.1 | 14^-0.1 | 20 | 5.5 | 13 | ||||
|
|
|
M10 × 1.25 | 40 | 35 | 30 | 25 | 20 | 10 | 0.1 | 17^-0.2 | 26 | 5.5 | 15 |
-
-
