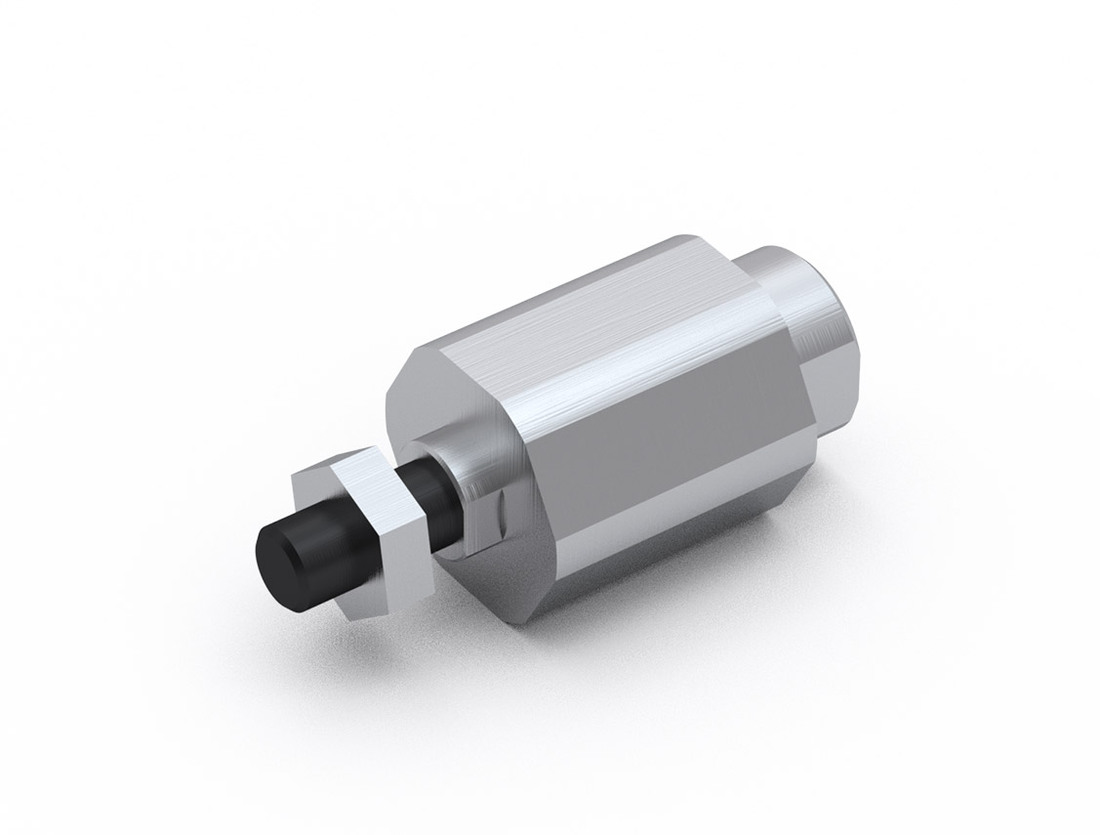

Self-aligning joint FK

Dimensions in mm.
Read more

Product Information

Material: Galvanized steel
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 FK 25 MCE 25 Galvanized steel F MCE 0.03
Get quote 2 FK 32 MCE 32 Galvanized steel F MCE 0.06
Get quote 2 FK 45 MCE 45 Galvanized steel F MCE 0.22

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 L6 A D E CH1 CH2 CH3 CH4 B
Get quote M6 35 17.5 11 4 12.5 14.5 4 8.5 1 13 7 10 5 6
Get quote M8 57 26 21 5 16 19 5 12.5 2 17 11 13 7 8
Get quote M10 × 1.25 71.5 35 20 9 22 32 6 22 2 30 19 17 12 8
