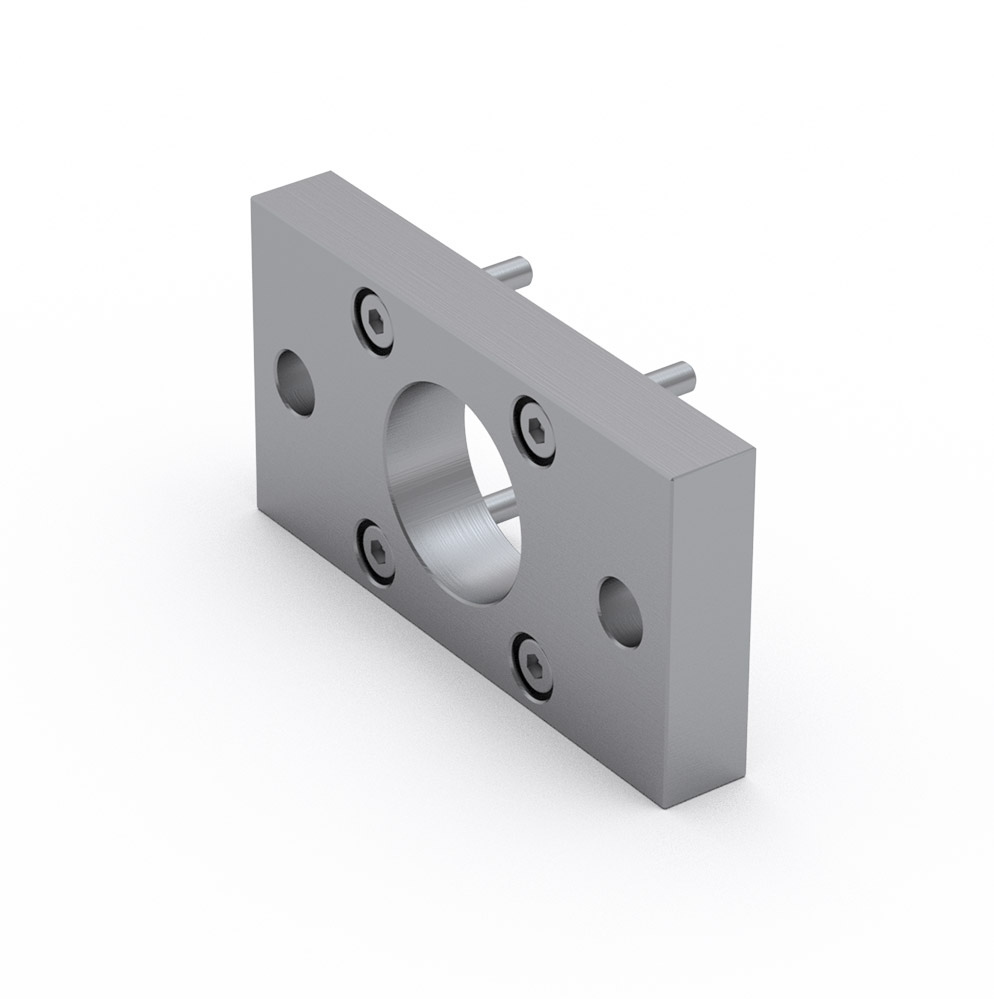

Flange mounting MAFL
Dimensions in mm.
Mounting screws are included.
Read more
Mounting screws are included.
Product Information
Material: Anodized aluminium
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | MAFL 25 | MCE 25 | Anodized aluminium | F MCE | 0.03 | ||||
|
|
|
2 | MAFL 32 | MCE 32 | Anodized aluminium | F MCE | 0.06 | ||||
|
|
|
2 | MAFL 45 | MCE 45 | Anodized aluminium | F MCE | 0.11 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
55 | 29 | 8 | 43 | - | 21 | 5.1 | 18 | 2.9 | 5.5 | 5.5 | ||||
|
|
|
70 | 36 | 10 | 55 | - | 22 | 5.5 | 20 | 4.5 | 6.5 | 8 | ||||
|
|
|
80 | 50 | 10 | 65 | 32 | 32 | 3.5 | 26 | 6.6 | 7 | 11 |
