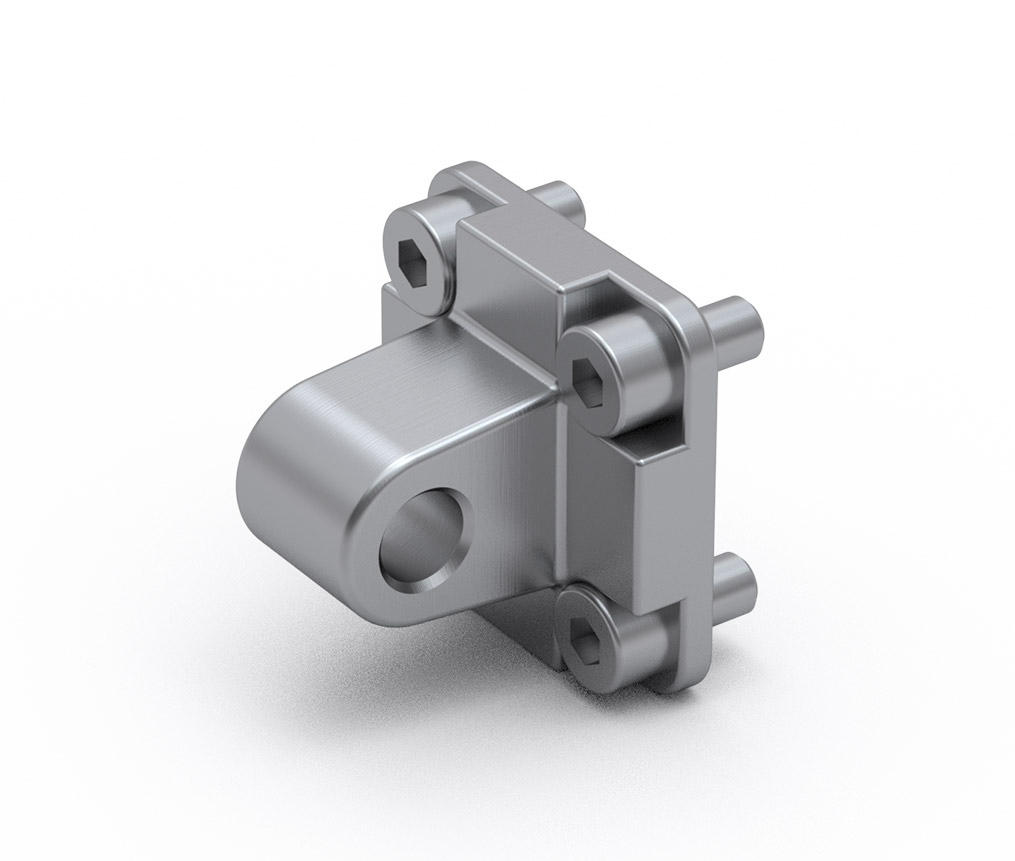

Swivel/clevis mount MASU

Dimensions in mm.

Mounting screws are included.
Read more

Product Information

Material: Aluminium (MASU 45: Aluminium and galvanized steel)
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 MASU 25 MCE 25 Aluminium F MCE 0.02
Get quote 2 MASU 32 MCE 32 Aluminium F MCE 0.03
Get quote 2 MASU 45 MCE 45 Aluminium and galvanized steel F MCE 0.12

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L1 L2 L3 L4 L5 L6 L7 L8 L9 D1 D2 D3 R1 R2
Get quote 27 (±0.2) 18 12 16 (±0.2) 10 2.6 6 3 - 6 4.5 10 (h11) 6 4.5
Get quote 34 (±0.2) 22 16 20 (±0.2) 14 2.6 6 3 - 8 5.5 12 (h11) 8 5
Get quote 48 (±0.2) 32 26 22 (±0.2) 13 5.5 9 45 53 10 6.6 14 (h11) 10 5.5
