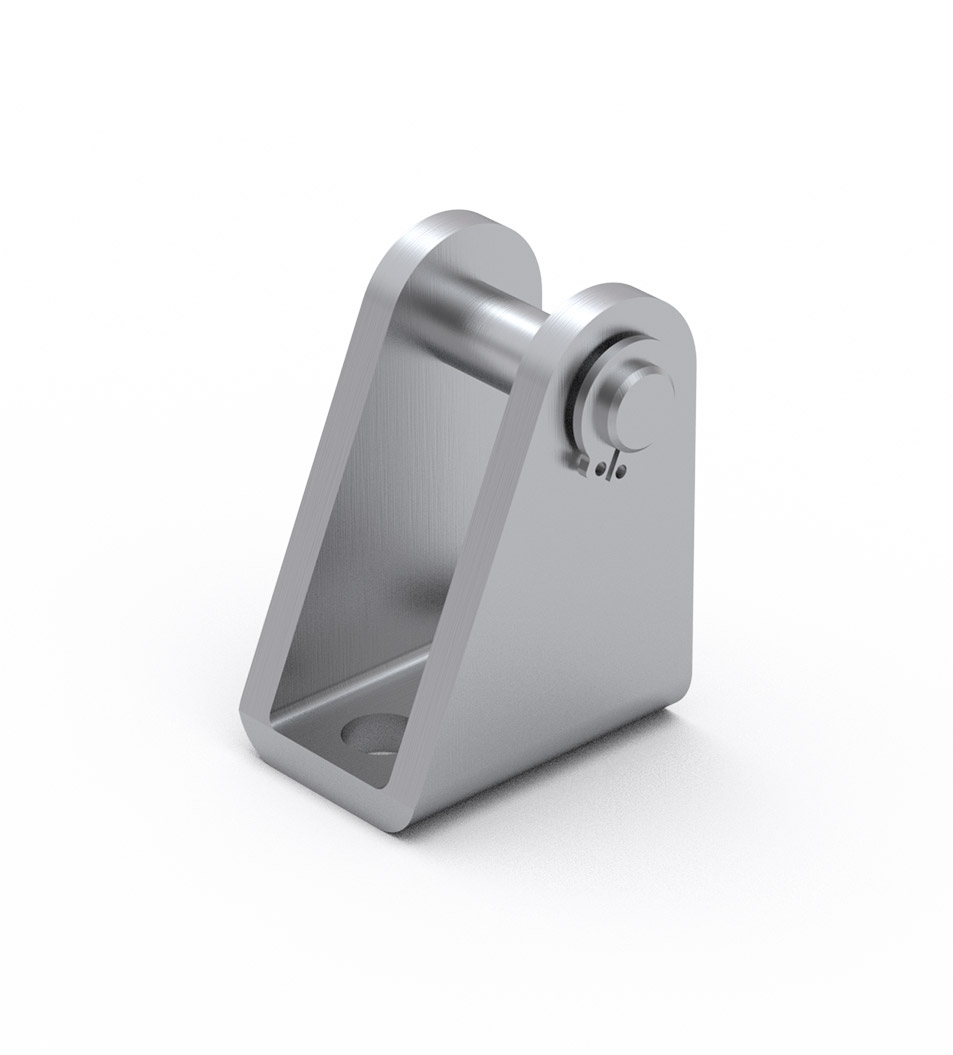

Clevis foot mounting MLBU

Dimensions in mm.
Read more

Product Information

Material: Galvanized steel
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 - MCE 25 Galvanized steel F MCE 0.04
Get quote 2 MLBU 32 MCE 32 Galvanized steel F MCE 0.08

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L1 L2 L3 L4 L5 L6 L7 D1 D2 R
Get quote 25 15 12.1 23.0 (+0.3/0) 27 (±0.5) 3 (±0.5) 18 6 (f7) 5.5 7
Get quote 32 20 16.1 29.5 (+0.3/0) 30 (±0.5) 4 (±0.5) 24 8 (f7) 6.6 10
