Trunnion support MLZ
Mounting Attachment Accessory MLZ, galvanized steel and sinterized bronze

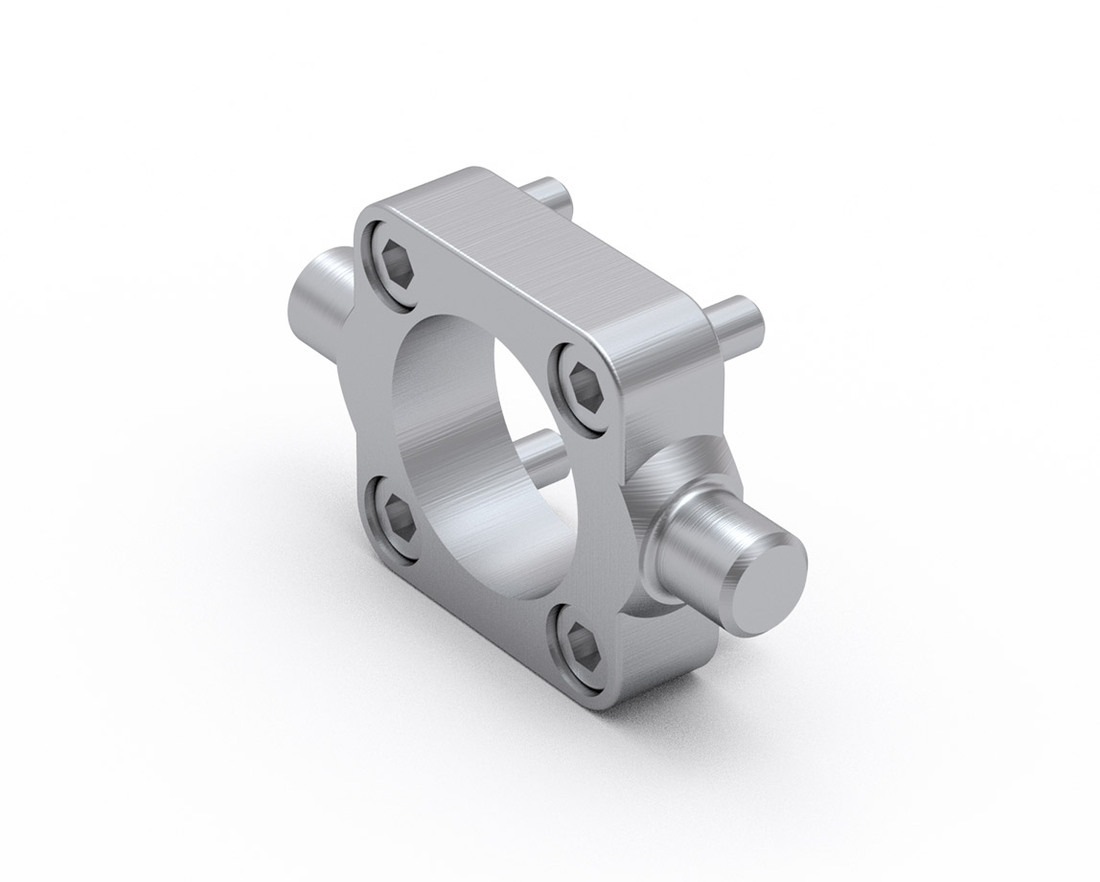

Trunnion mount MZK
Dimensions in mm.
Mounting screws are included.
Mounting screws are included.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Compatible with | Description | Material | Fmax (N) | Mass (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP | MCE 32 | MZK 32 | Galvanized steel | F MCE | 0,12 |
|
||
|
|
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP | MCE 45 | MZK 45 | Galvanized steel | F MCE | 0,17 |
|
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP | 35 | 22 | 38 (h14) | 12 (h14) | 14 | 6,5 (+0,3/0) | 6 (±0,2) | 5,50 | 10 | 12 (e9) | 18 |
|
||
|
|
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP | 46 | 32 | 52 (h14) | 12 (h14) | 14 | 6,5 (+0,3/0) | 7 (±0,2) | 6,60 | 10,50 | 12 (e9) | 32 |
|
