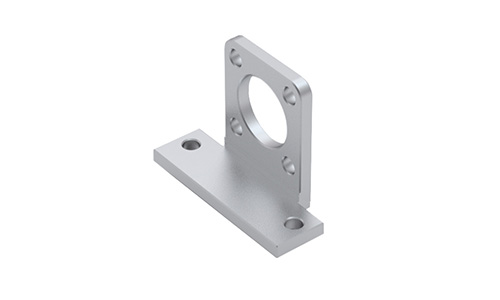

HGLL

Dimensions in mm.
Download PDF

Product Information

Material: Galvanized steel

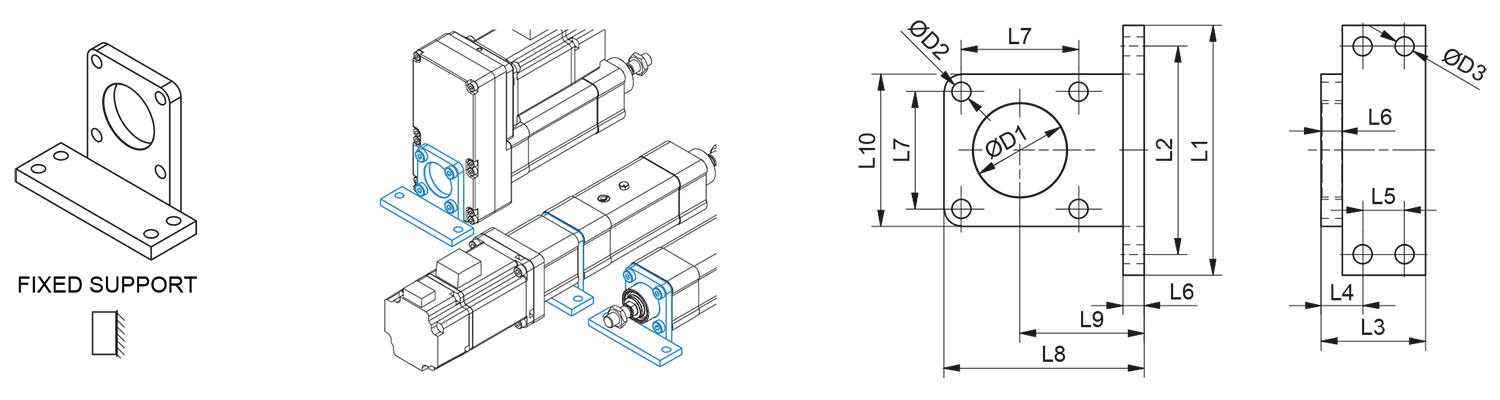

Technical Drawing
Designation Select all Lead Time * Type Compatible with Description Fmax (N) Mass
2 Front cap / Motor adapter mounting PNCE 32 HGLL 32 F PNCE 0,21 kg
Compare
Get quote
2 Motor side drive type T1 mounting PNCE 32 HGLL 32 MSD F PNCE 0,21 kg
Compare
Get quote
2 Front cap / Motor adapter mounting PNCE 40 HGLL 40 2800 N 0,26 kg
Compare
Get quote
2 Motor side drive type T1 mounting PNCE 40 HGLL 40 MSD 2800 N 0,26 kg
Compare
Get quote
2 Front cap / Motor adapter mounting PNCE 50 HGLL 50 7100 N 0,64 kg
Compare
Get quote
2 Motor side drive type T1 mounting PNCE 50 HGLL 50 MSD 7100 N 0,64 kg
Compare
Get quote
2 Front cap / Motor adapter mounting PNCE 63 HGLL 63 10100 N 0,87 kg
Compare
Get quote
2 Motor side drive type T1 mounting PNCE 63 HGLL 63 MSD 10100 N 0,87 kg
Compare
Get quote
2 - PNCE 80 HGLL 80 13200 N 1,71 kg
Compare
Get quote
2 - PNCE 100 HGLL 100 F PNCE 2,57 kg
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 D1 D2 D3
79 65 30 16 - 6 (±0,5) 32,50 58,50 35 (±0,1) 47 6 (±0,5) Ø 30 (H11) Ø 7 (H13) Ø 7 (H13)
Compare
Get quote
79 65 30 16 - 6 (±0,5) 32,50 58,50 35 (±0,1) 47 6 (±0,5) Ø 30 (H11) Ø 7 (H13) Ø 7 (H13)
Compare
Get quote
90 75 30 16 - 6 (±0,5) 38 72 45 (±0,1) 54 6 (±0,5) Ø 35 (H11) Ø 7 (H13) Ø 9 (H13)
Compare
Get quote
90 75 30 16 - 6 (±0,5) 38 72 45 (±0,1) 54 6 (±0,5) Ø 35 (H11) Ø 7 (H13) Ø 9 (H13)
Compare
Get quote
110 90 35 19 - 10 (±0,5) 46,50 92,50 60 (±0,1) 65 10 (±0,5) Ø 40 (H11) Ø 9 (H13) Ø 9 (H13)
Compare
Get quote
110 90 35 19 - 10 (±0,5) 46,50 92,50 60 (±0,1) 65 10 (±0,5) Ø 40 (H11) Ø 9 (H13) Ø 9 (H13)
Compare
Get quote
120 100 50 20 20 10 (±0,5) 56,50 97,50 60 (±0,1) 75 10 (±0,5) Ø 45 (H11) Ø 9 (H13) Ø 9 (H13)
Compare
Get quote
120 100 50 20 20 10 (±0,5) 56,50 97,50 60 (±0,1) 75 10 (±0,5) Ø 45 (H11) Ø 9 (H13) Ø 9 (H13)
Compare
Get quote
153 128 62 27 25 12 (±0,5) 72 128,50 82 (±0,1) 93 13 (±0,5) Ø 60 (H11) Ø 11 (H13) Ø 11 (H13)
Compare
Get quote
178 148 72 27 30 15 (±0,5) 89 137 82 (±0,1) 110 15 (±0,5) Ø 70 (H11) Ø 11 (H13) Ø 11 (H13)
Compare
Get quote
  • Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
  • Mounting attachment accessory HG, galvanized or stainless steel AISI 304
  • Mounting attachment accessory FG, galvanized or stainless steel AISI 304
  • Mounting attachment accessory ZK, galvanized steel
  • Mounting attachment accessory LZ, galvanized steel
  • Mounting attachment accessory SGN, aluminium or stainless steel AISI 316
  • Mounting attachment accessory SBG, aluminium or stainless steel AISI 304
  • Mounting attachment accessory LSG, steel (black cataphoresis) or stainless steel AISI 316
  • Mounting attachment accessory HGL, galvanized steel
  • Mounting attachment accessory SGL, Aluminium or stainless steel AISI 304
  • Mounting attachment accessory LG, aluminium or stainless steel AISI 304
  • Mounting attachment accessory ZKCE
