LSG

Dimensions in mm.
Download PDF

Product Information

Material: Steel (black cataphoresis) or stainless steel AISI 316

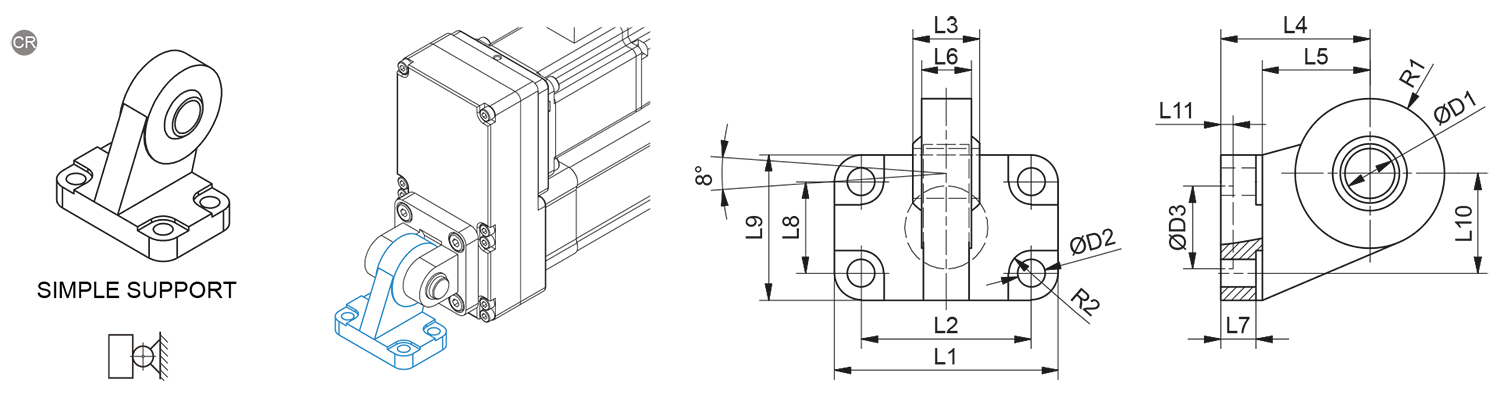

Technical Drawing
Designation Select all Lead Time * Compatible with Material Fmax (N) Mass
2 PNCE 32 Steel (black cataphoresis) F PNCE 0,18 kg
Compare
Get quote
2 PNCE 32 Stainless steel AISI 316 F PNCE 0,18 kg
Compare
Get quote
2 PNCE 40 Steel (black cataphoresis) F PNCE 0,27 kg
Compare
Get quote
2 PNCE 40 Stainless steel AISI 316 F PNCE 0,27 kg
Compare
Get quote
2 PNCE 50 Steel (black cataphoresis) F PNCE 0,46 kg
Compare
Get quote
2 PNCE 50 Stainless steel AISI 316 F PNCE 0,46 kg
Compare
Get quote
2 PNCE 63 Steel (black cataphoresis) F PNCE 0,55 kg
Compare
Get quote
2 PNCE 63 Stainless steel AISI 316 F PNCE 0,55 kg
Compare
Get quote
2 PNCE 80 Steel (black cataphoresis) F PNCE 0,97 kg
Compare
Get quote
2 PNCE 80 Stainless steel AISI 316 F PNCE 0,97 kg
Compare
Get quote
2 PNCE 100 Steel (black cataphoresis) F PNCE 1,33 kg
Compare
Get quote
2 PNCE 100 Stainless steel AISI 316 F PNCE 1,33 kg
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 D1 D2 D3 R1 R2
51 38 14 32 (JS 15) 22 10,50 8,50 18 31 21 (JS 15) 3 Ø 10 (H7) Ø 6,6 (H13) Ø 20 (H13) 15 5,5 (H13)
Compare
Get quote
51 38 14 32 (JS 15) 22 10,50 8,50 18 31 21 (JS 15) 3 Ø 10 (H7) Ø 6,6 (H13) Ø 20 (H13) 15 5,5 (H13)
Compare
Get quote
54 41 16 36 (JS 15) 22 10,50 8,50 18 31 24 (JS 15) 3 Ø 12 (H7) Ø 6,6 (H13) Ø 20 (H13) 18 5,5 (H13)
Compare
Get quote
54 41 16 36 (JS 15) 22 10,50 8,50 18 31 24 (JS 15) 3 Ø 12 (H7) Ø 6,6 (H13) Ø 20 (H13) 18 5,5 (H13)
Compare
Get quote
65 50 21 45 (JS 15) 26 12 8,50 22 35 33 (JS 15) 3 Ø 16 (H7) Ø 9 (H13) Ø 20 (H13) 20 7,5 (H13)
Compare
Get quote
65 50 21 45 (JS 15) 26 12 8,50 22 35 33 (JS 15) 3 Ø 16 (H7) Ø 9 (H13) Ø 20 (H13) 20 7,5 (H13)
Compare
Get quote
67 52 21 50 (JS 15) 33 15 10,50 30 45 37 (JS 15) 3 Ø 16 (H7) Ø 9 (H13) Ø 20 (H13) 23 7,5 (H13)
Compare
Get quote
67 52 21 50 (JS 15) 33 15 10,50 30 45 37 (JS 15) 3 Ø 16 (H7) Ø 9 (H13) Ø 20 (H13) 23 7,5 (H13)
Compare
Get quote
86 66 25 63 (JS 15) 38 15 10,50 35 50 47 (JS 15) 3 Ø 20 (H7) Ø 11 (H13) Ø 20 (H13) 27 9 (H13)
Compare
Get quote
86 66 25 63 (JS 15) 38 15 10,50 35 50 47 (JS 15) 3 Ø 20 (H7) Ø 11 (H13) Ø 20 (H13) 27 9 (H13)
Compare
Get quote
96 76 25 71 (JS 15) 49 18 11,50 40 60 55 (JS 15) 3 Ø 20 (H7) Ø 11 (H13) Ø 20 (H13) 30 9 (H13)
Compare
Get quote
96 76 25 71 (JS 15) 49 18 11,50 40 60 55 (JS 15) 3 Ø 20 (H7) Ø 11 (H13) Ø 20 (H13) 30 9 (H13)
Compare
Get quote
  • Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
  • Mounting attachment accessory HG, galvanized or stainless steel AISI 304
  • Mounting attachment accessory HGLL, galvanized steel
  • Mounting attachment accessory FG, galvanized or stainless steel AISI 304
  • Mounting attachment accessory ZK, galvanized steel
  • Mounting attachment accessory LZ, galvanized steel
  • Mounting attachment accessory SGN, aluminium or stainless steel AISI 316
  • Mounting attachment accessory SBG, aluminium or stainless steel AISI 304
  • Mounting attachment accessory HGL, galvanized steel
  • Mounting attachment accessory SGL, Aluminium or stainless steel AISI 304
  • Mounting attachment accessory LG, aluminium or stainless steel AISI 304
  • Mounting attachment accessory ZKCE
