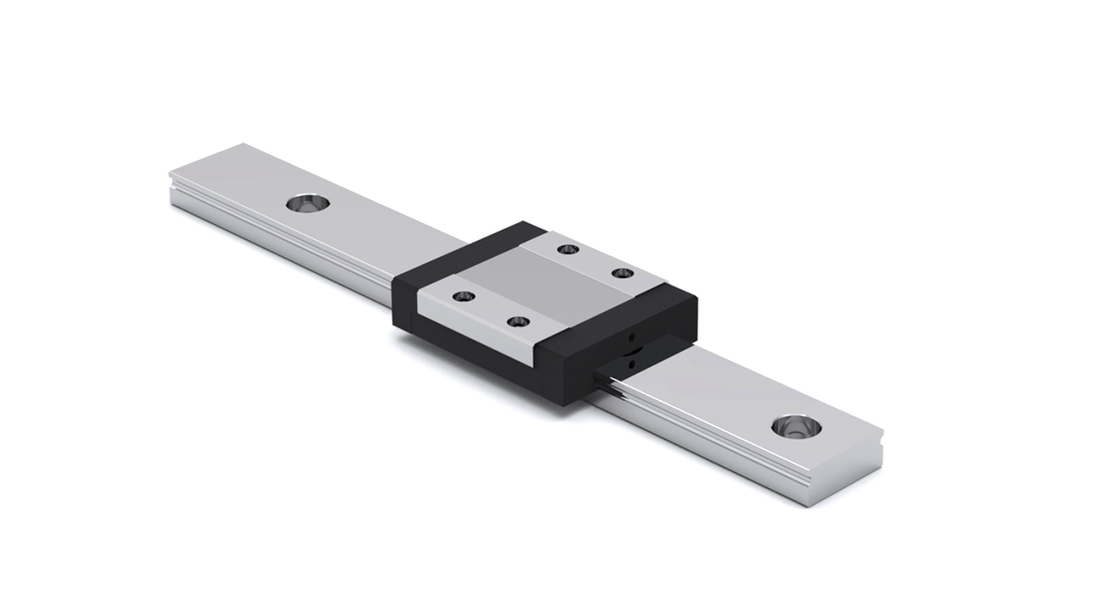

MR-W SS Series

STOCK ITEM

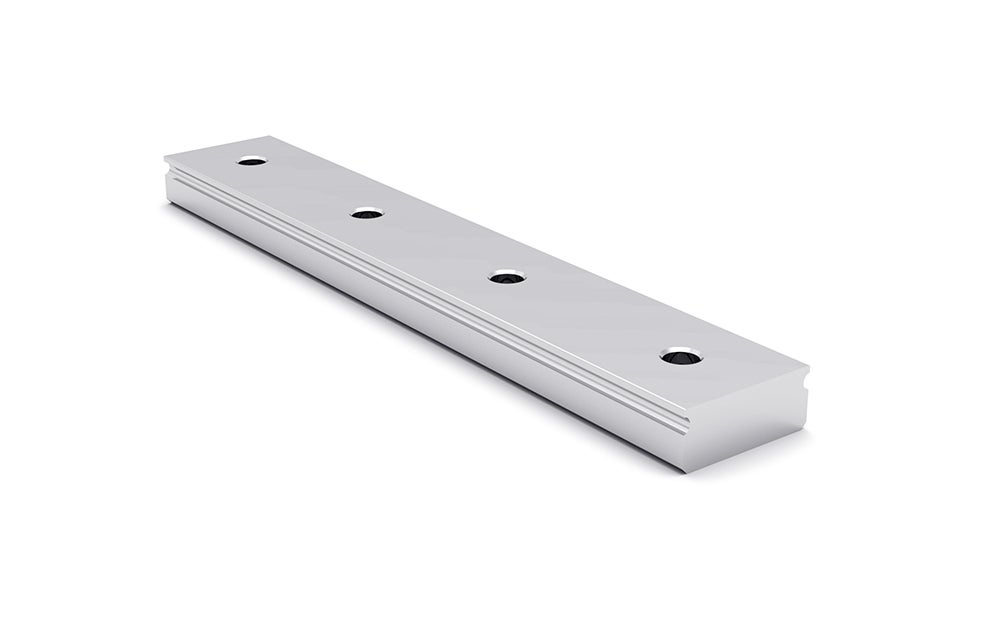

Wide rail type
(End seal)

This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.

Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload

Accuracy
N: Normal (Rollco standard)
H: High
P: Precision

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.

Product Information

Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Weight Block (g)
2 310 625 1,60 1,20 1,20 3
Get quote
2 280 530 1,60 0,90 0,90 3,40
Get quote
2 370 800 2,50 1,90 1,90 3,40
Get quote
1 475 900 4,60 2,20 2,20 6
Get quote
1 615 1315 6,80 4,10 4,10 8
Get quote
1 1180 2095 15 7,30 7,30 19
Get quote
1 1570 3140 22,65 14,90 14,90 27
Get quote
1 2030 3605 33,20 13,70 13,70 37
Get quote
1 2550 4990 45,90 26,70 26,70 51
Get quote
1 3065 5200 63,70 26,30 26,30 65
Get quote
1 4070 7800 95,60 56,40 56,40 93
Get quote
1 5065 8385 171,10 45,70 45,70 137
Get quote
1 6725 12580 257,60 257,60 93,10 200
Get quote

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L)
4 10 17
Get quote
4,50 12 15
Get quote
4,50 12 20,10
Get quote
6,50 17 21,10
Get quote
6,50 17 27,20
Get quote
9 25 31,80
Get quote
9 25 40,50
Get quote
12 30 39,10
Get quote
12 30 50,70
Get quote
14 40 44,50
Get quote
14 40 59,60
Get quote
16 60 55,80
Get quote
16 60 74,50
Get quote
Designation Select all P2 P1 S Mxg2
- 6,50 - M2x1,3
Get quote
- 4,50 0,80 M2x1,4
Get quote
- 8 0,80 M2x1,4
Get quote
13 6,50 1,20 M2,5x1,5
Get quote
13 11 1,20 M2,5x1,5
Get quote
19 10 1,90 M3x3
Get quote
19 19 1,90 M3x3
Get quote
21 12 2,60 M3x3
Get quote
23 24 2,60 M3x3
Get quote
28 15 3,10 M3x3,5
Get quote
28 28 3,10 M3x3,5
Get quote
45 20 3,30 M4x4,5
Get quote
45 35 3,30 M4x4,5
Get quote
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
4 2,60 2,8x1,8x1,0 10
Get quote
6 2,70 4x2,4x1,5 15
Get quote
6 2,70 4x2,4x1,5 15
Get quote
10 4 5,5x3x1,6 20
Get quote
10 4 5,5x3x1,6 20
Get quote
14 5,20 6x3,5x3,5 30
Get quote
14 5,20 6x3,5x3,5 30
Get quote
18 7,30 6x3,5x4,5 30
Get quote
18 7,30 6x3,5x4,5 30
Get quote
24 8,50 8x4,5x4,5 40
Get quote
24 8,50 8x4,5x4,5 40
Get quote
42 9,50 8x4,5x4,5 40
Get quote
42 9,50 8x4,5x4,5 40
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 Mxg2 T H1 ø
17 10 11,90 3 3 M2x1,3 1,30 2,60 -
Get quote
15 12 10 3,50 3 M2x1,4 1,80 2,70 0,30
Get quote
20,10 12 15,10 3,50 3 M2x1,4 1,80 2,70 0,30
Get quote
21,10 17 15,10 5 3,50 M2,5x1,5 2,30 4 0,90
Get quote
27,20 17 21,20 5 3,50 M2,5x1,5 2,30 4 0,90
Get quote
31,80 25 21,20 7 5,50 M3x3 3,20 5,20 1,10
Get quote
40,50 25 30,10 7 5,50 M3x3 3,20 5,20 1,10
Get quote
39,10 30 27,90 8,60 6 M3x3 4 7,30 1,30
Get quote
50,70 30 39,40 8,60 6 M3x3 4 7,30 1,30
Get quote
44,50 40 31,10 10,10 8 M3x3,5 4,50 8,50 1,40
Get quote
59,60 40 46 10,10 8 M3x3,5 4,50 8,50 1,40
Get quote
55,80 60 38,50 12 9 M4x4,5 4,50 9,50 1,90
Get quote
74,50 60 57,60 12 9 M4x4,5 4,50 9,50 1,90
Get quote
  • STOCK ITEM
