Wide MR-W Rail
Wide hardened ground rail

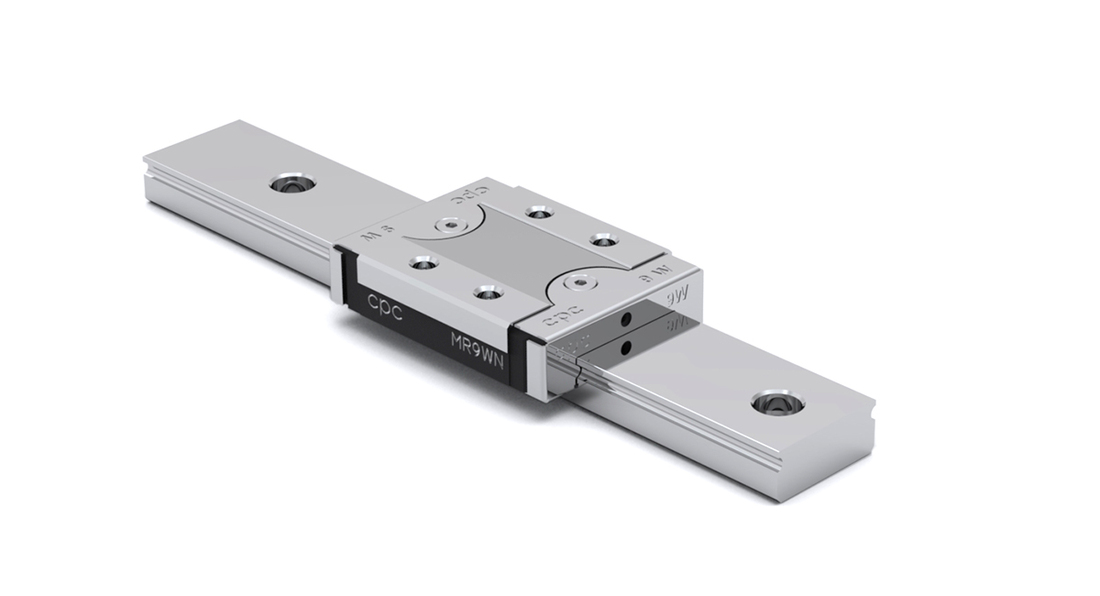

MR-W ZUE Series
Wide Rail Type
End seal, bottom seal, reinforcement plate, lubrication storage.
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
See MR-W SS for sizes 3 and 5.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
End seal, bottom seal, reinforcement plate, lubrication storage.
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
See MR-W SS for sizes 3 and 5.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Weight Block (g) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 310 | 625 | 1,60 | 1,20 | 1,20 | 3 |
|
||
|
|
1 | 1180 | 2095 | 15 | 7,30 | 7,30 | 19 |
|
||
|
|
1 | 1570 | 3140 | 22,65 | 14,90 | 14,90 | 27 |
|
||
|
|
1 | 2030 | 3605 | 33,20 | 13,70 | 13,70 | 37 |
|
||
|
|
1 | 2550 | 4990 | 45,90 | 26,70 | 26,70 | 51 |
|
||
|
|
1 | 3065 | 5200 | 63,70 | 26,30 | 26,30 | 68 |
|
||
|
|
1 | 4070 | 7800 | 95,60 | 56,40 | 56,40 | 96 |
|
||
|
|
1 | 5065 | 8385 | 171,10 | 45,70 | 45,70 | 140 |
|
||
|
|
1 | 6725 | 12580 | 257,60 | 93,10 | 93,10 | 203 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | W1 | H1 | D x d x g1 | Hole Pitch (P) | ||
|---|---|---|---|---|---|---|---|
|
|
4 | 3 | 2,8x1,8x1,0 | 10 |
|
||
|
|
14 | 5,20 | 6x3,5x3,5 | 30 |
|
||
|
|
14 | 5,20 | 6x3,5x3,5 | 30 |
|
||
|
|
18 | 7,30 | 6x3,5x4,5 | 30 |
|
||
|
|
18 | 7,30 | 6x3,5x4,5 | 30 |
|
||
|
|
24 | 8,50 | 8x4,5x4,5 | 40 |
|
||
|
|
24 | 8,50 | 8x4,5x4,5 | 40 |
|
||
|
|
42 | 9,50 | 8x4,5x4,5 | 40 |
|
||
|
|
42 | 9,50 | 8x4,5x4,5 | 40 |
|
| Designation | Select all | Block Length (L) | System Width (W) | L1 | h2 | W2 | Mxg2 | T | H1 | ø | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
17,50 | 10 | 11,90 | 3,40 | 3 | M2x1,3 | 1,30 | 3 | - |
|
||
|
|
32,50 | 25 | 21,20 | 7,60 | 5,50 | M3x3 | 3,20 | 5,20 | 1,10 |
|
||
|
|
41,50 | 25 | 30,10 | 7,60 | 5,50 | M3x3 | 3,20 | 5,20 | 1,10 |
|
||
|
|
40,20 | 30 | 27,90 | 9,40 | 6 | M3x3 | 4 | 7,30 | 1,30 |
|
||
|
|
51,80 | 30 | 39,50 | 9,40 | 6 | M3x3 | 4 | 7,30 | 1,30 |
|
||
|
|
45,80 | 40 | 31 | 11,20 | 8 | M3x3,5 | 4,50 | 8,50 | 1,30 |
|
||
|
|
60,80 | 40 | 46 | 11,20 | 8 | M3x3,5 | 4,50 | 8,50 | 1,30 |
|
||
|
|
56,90 | 60 | 38,50 | 13,10 | 9 | M4x4,5 | 4,50 | 9,50 | 1,80 |
|
||
|
|
76 | 60 | 57,60 | 13,10 | 9 | M4x4,5 | 4,50 | 9,50 | 1,80 |
|
-
-
