MR-M ZUE Series

Standard Narrow Rail Type
End seal, bottom seal, reinforcement plate, lubrication storage.

This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.

Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload

Accuracy
N: Normal (Rollco standard)
H: High
P: Precision

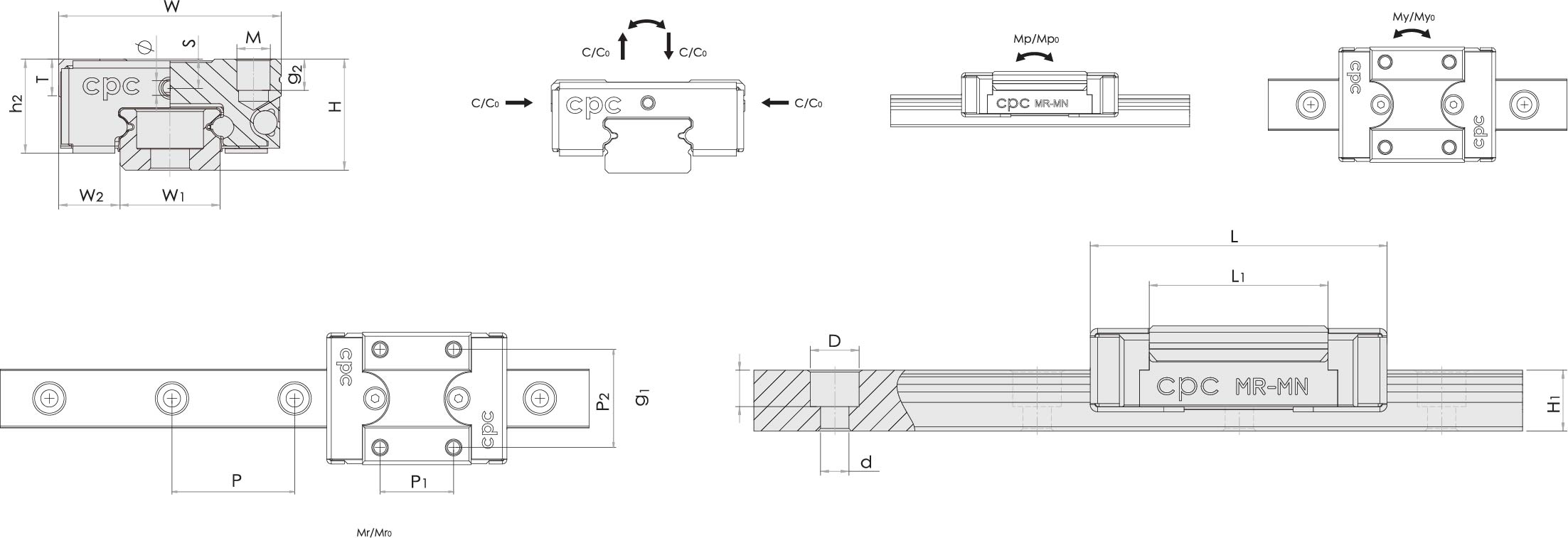

Dimensions in mm.

See MR-M SS for sizes 3 and 7.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.

Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.

Product Information

Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Weight Block (g) Compare
2 158 349 0.43 0.54 0.54 0.8
Get quote
2 335 550 1.7 1 1 3.5
Get quote
2 470 900 2.4 2.1 2.1 4
Get quote
1 1570 2495 11.7 6.4 6.4 18
Get quote
1 2135 3880 18.2 12.4 12.4 28
Get quote
1 2308 3465 21.5 12.9 12.9 34
Get quote
1 3240 5630 34.9 30.2 30.2 51
Get quote
1 3810 5590 43.6 27 27 61
Get quote
1 5350 9080 70 63.3 63.3 90
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 Compare
3.2 6 12.5 2
Get quote
6 12 16.8 3.5
Get quote
6 12 20.3 3.5
Get quote
10 20 31.9 5.5
Get quote
10 20 42 5.5
Get quote
13 27 37 7.5
Get quote
13 27 49 7.5
Get quote
16 32 45.1 8.5
Get quote
16 32 62 8.5
Get quote
Designation Select all P2 P1 S Mxg2 Compare
- 4 - M1.4x1.1
Get quote
8 - 1.3 M2x1.5
Get quote
- 7 1.3 M2.6x2.0
Get quote
15 10 2.2 M3x3.0
Get quote
15 16 2.2 M3x3.0
Get quote
20 15 3.2 M3x3.5
Get quote
20 20 3.2 M3x3.5
Get quote
25 20 3.3 M3x5.5
Get quote
25 25 3.3 M3x5.5
Get quote
Designation Select all W1 H1 D x d x g1 Hole Pitch (P) Compare
2 2 M1 8
Get quote
5 3.5 3.5x2.4x1 15
Get quote
5 3.5 3.5x2.4x1 15
Get quote
9 5.5 6x3.5x3.5 20
Get quote
9 5.5 6x3.5x3.5 20
Get quote
12 7.5 6x3.5x4.5 25
Get quote
12 7.5 6x3.5x4.5 25
Get quote
15 9.5 6x3.5x4.5 40
Get quote
15 9.5 6x3.5x4.5 40
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 Mxg2 T H1 ø Compare
12.5 6 8.8 2.6 2 M1.4x1.1 - 2 -
Get quote
16.8 12 10 5 3.5 M2x1.5 2 3.5 0.7
Get quote
20.3 12 13.5 5.1 3.5 M2.6x2.0 2 3.5 0.7
Get quote
31.9 20 20.5 8.7 5.5 M3x3.0 3.3 5.5 1.3
Get quote
42 20 30.8 8.6 5.5 M3x3.0 3.3 5.5 1.3
Get quote
37 27 22 11.2 7.5 M3x3.5 4.3 7.5 1.3
Get quote
49 27 34 11.1 7.5 M3x3.5 4.3 7.5 1.3
Get quote
45.1 32 27 13.3 8.5 M3x5.5 4.3 9.5 1.8
Get quote
62 32 44 13.1 8.5 M3x5.5 4.3 9.5 1.8
Get quote
