Standard MR-M Rail

STOCK ITEM
Tapped from above.

This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.

Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload

Accuracy
N: Normal (Rollco standard)
H: High
P: Precision

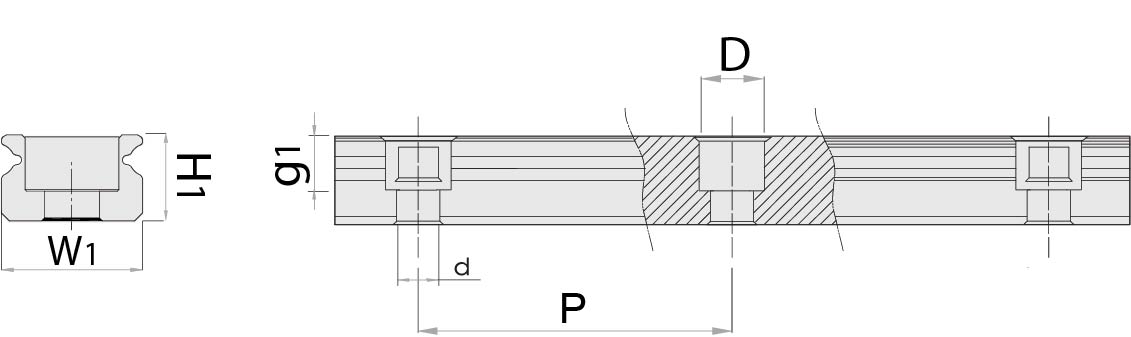

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.

Product Information

Designation Select all Lead Time * H1 W1 Hole Pitch (P) D x d x g1 Weight Rail (g/m)
1 3,50 5 15 3,5x2,4x1 116
Get quote
1 4,70 7 15 4,2x2,4x2,3 215
Get quote
1 5,50 9 20 6x3,5x3,5 301
Get quote
1 7,50 12 25 6x3,5x4,5 602
Get quote
1 9,50 15 40 6x3,5x4,5 930
Get quote

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
