Rollers CPN-CPA

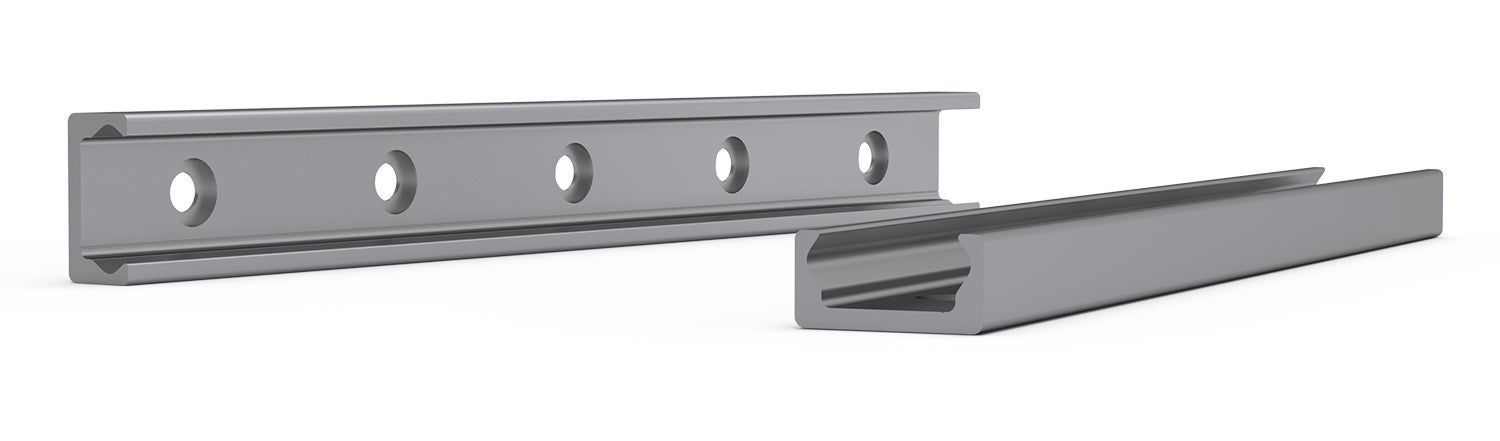

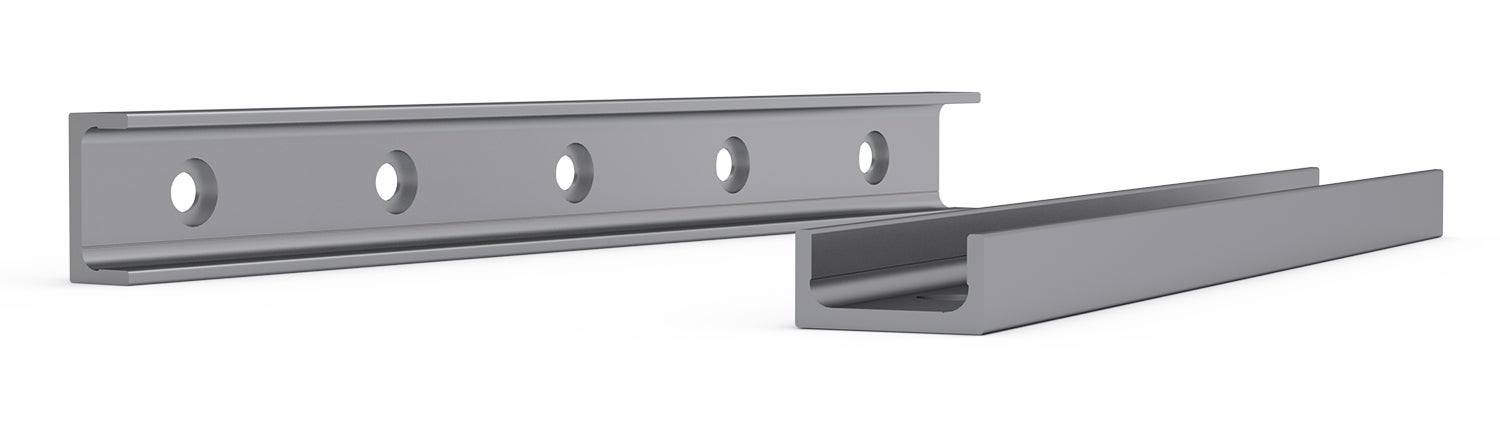

Prismatic roller for T- and U-rail
Slider NSD/NSDA
Constructed as the NSW/NSA-slider with mounting holes parallel to the direction of preferred loading. It is available for sizes 28 and 43, with three or five rollers, depending on load case and load direction set with the corresponding configuration.
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.

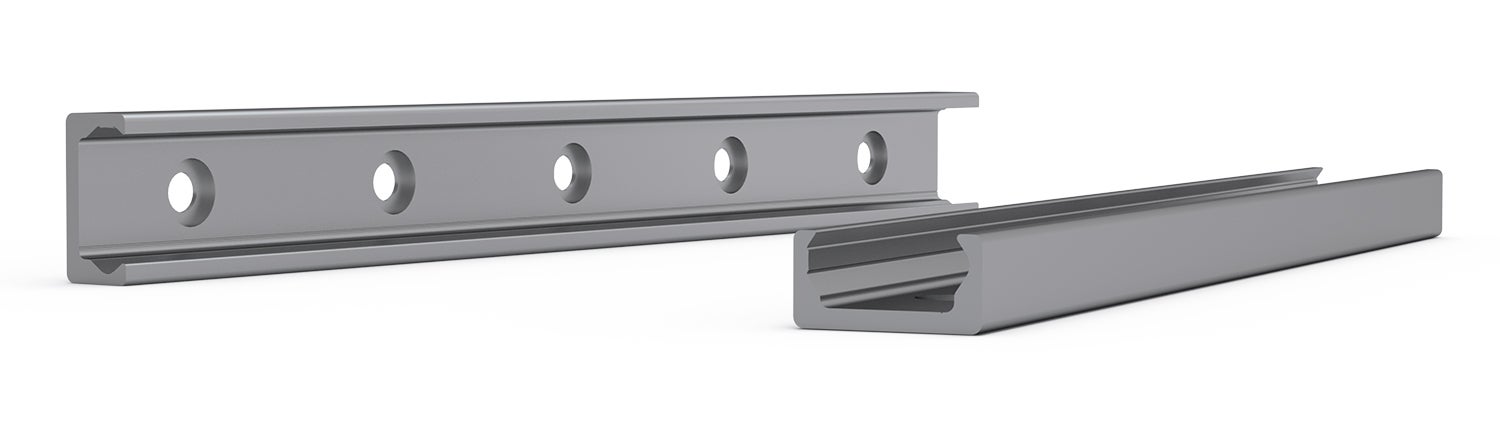

All NSDA-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
All NSD/NSDA sliders have wipers assembled and the wipers for K-Rails are adapted to work on the two different raceway shapes.

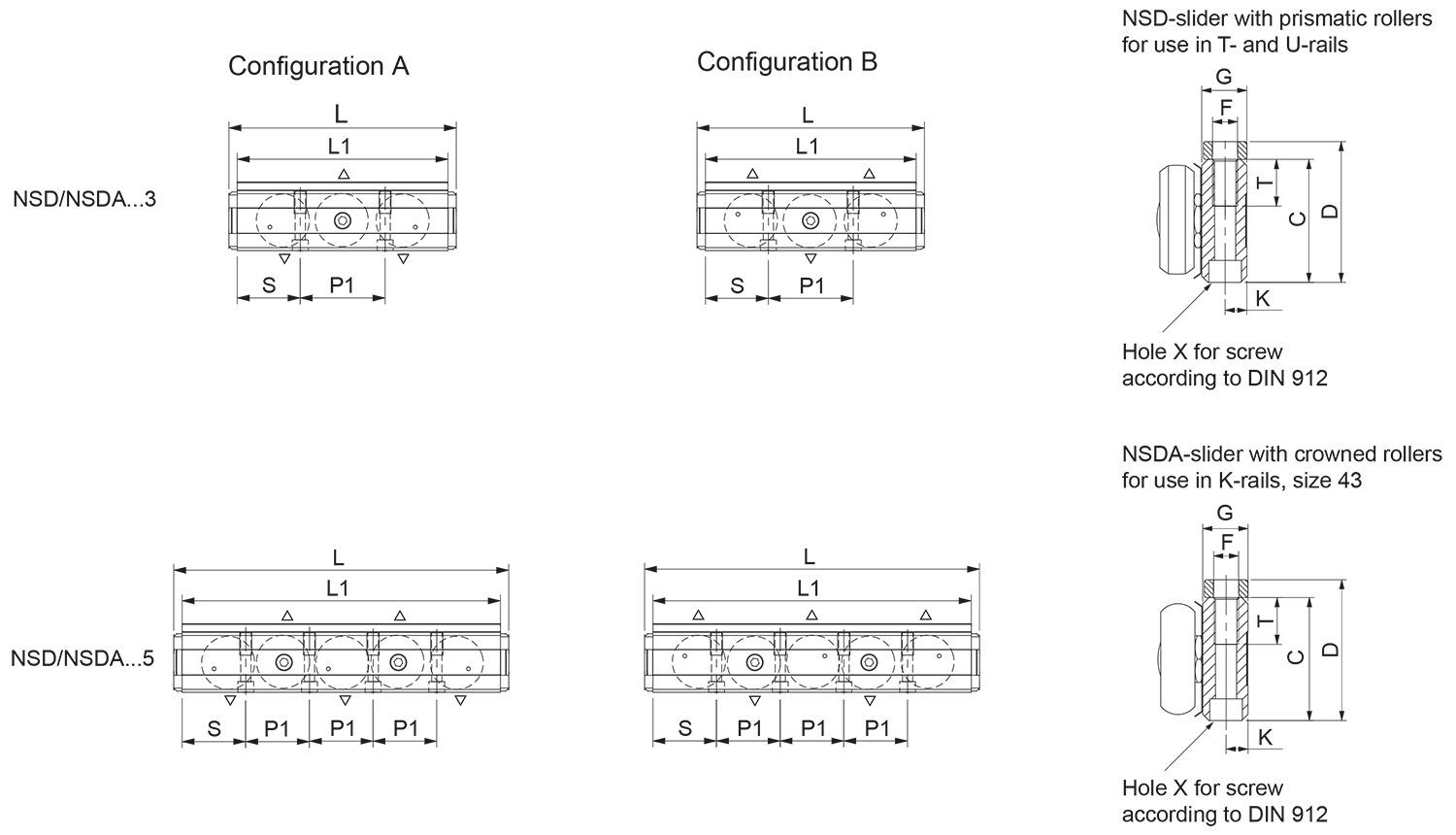

Dimensions in mm.
Read more
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
All NSDA-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
All NSD/NSDA sliders have wipers assembled and the wipers for K-Rails are adapted to work on the two different raceway shapes.
Dimensions in mm.
Product Information
Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.
Max. Radial Load Capacity (N): 15,000 (per slider)
Temperature range (°C): -20 to +120
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Size | Max. Speed (m/s) | Max. Acceleration (m/s) | Roller type | Number of rollers | Number of Fixing Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 28 | 3 | 10 | CPA28 | 3 | 2 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 3 | 2 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 3 | 2 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 3 | 2 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 5 | 4 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 5 | 4 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 5 | 4 | |||
|
|
|
2 | 28 | 3 | 10 | CPA28 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 3 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L | C | D | G | F | K | P1 | S | T | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
97 | 108 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 36 | 30.5 | 15 | M5 | |||
|
|
|
97 | 108 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 36 | 30.5 | 15 | M5 | |||
|
|
|
97 | 108 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 36 | 30.5 | 15 | M5 | |||
|
|
|
97 | 108 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 36 | 30.5 | 15 | M5 | |||
|
|
|
142 | 153 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 27 | 30.5 | 15 | M5 | |||
|
|
|
142 | 153 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 27 | 30.5 | 15 | M5 | |||
|
|
|
142 | 153 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 27 | 30.5 | 15 | M5 | |||
|
|
|
142 | 153 | 24.9 | 30.45 | 9.7 | M6 | 4.7 | 27 | 30.5 | 15 | M5 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
139 | 150 | 39.5 | 45.25 | 14.5 | M8 | 7 | 56 | 41.5 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|
210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 | |||
|
|
|

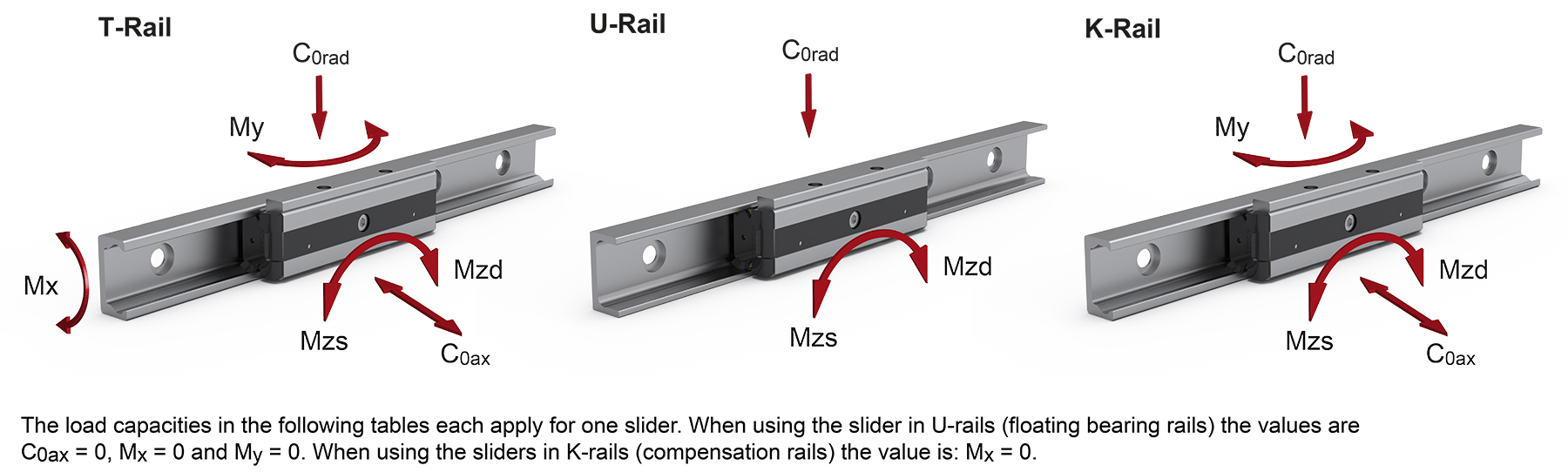

210 | 221 | 39.5 | 45.25 | 14.5 | M8 | 7 | 42 | 42 | 15 | M6 |
| Designation | Select all | CAD | Compare | Get quote | C (N) | C0rad (N) | C0ax (N) | Mx (Nm) | My (Nm) | Mzd (Nm) | Mzs (Nm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
14675 | 9540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
14675 | 9540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
14675 | 9540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
14675 | 9540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 |
| Designation | Select all | CAD | Compare | Get quote | A1 | H (Slider+T-rail) | H (Slider+U-rail) | H (Slider+K-rail) | W1 | W |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 32 (+0.1/-0.3) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 47 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) |
-
-

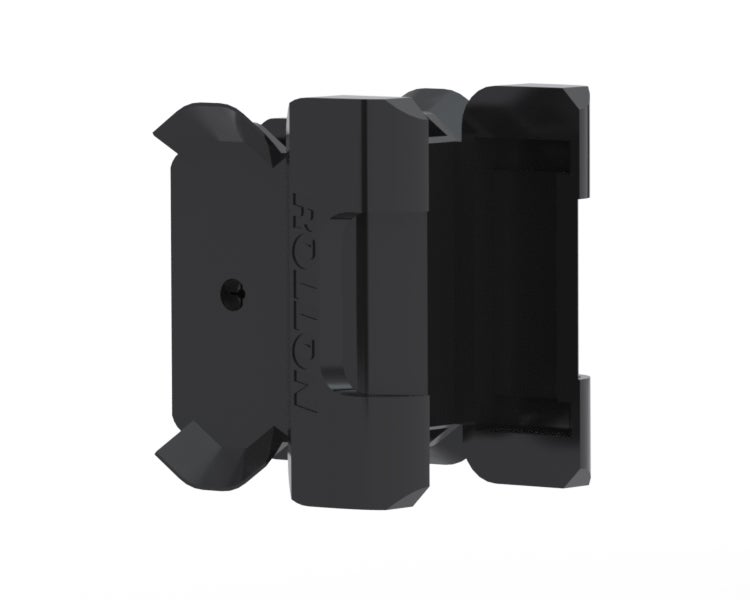

ZK-WNS Wipers
Wipers for NSW / NSA / NSD / NSDA -

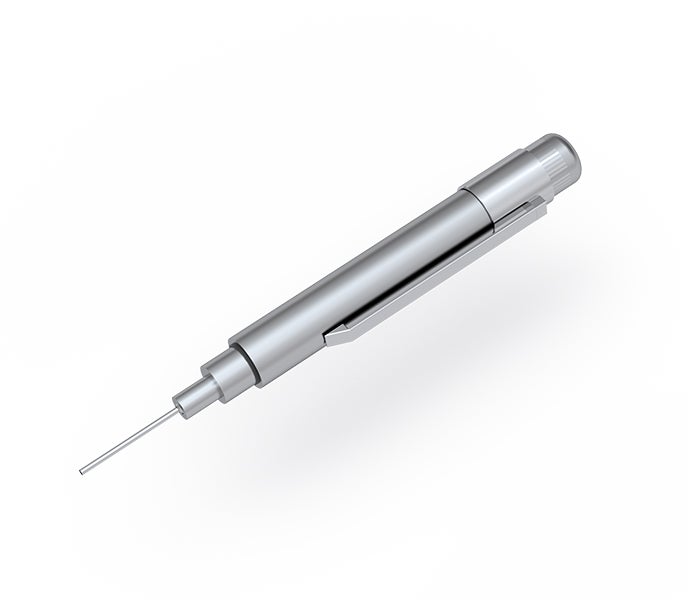

Oiling syringe
For lubrication of the sliders NSW / NSA / NSD / NSDA -

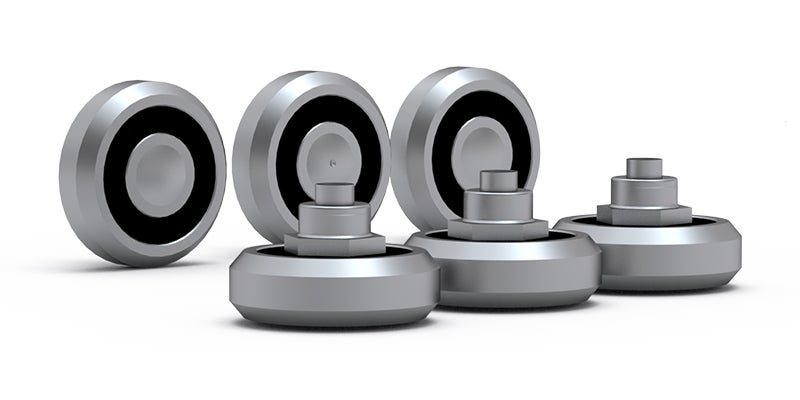

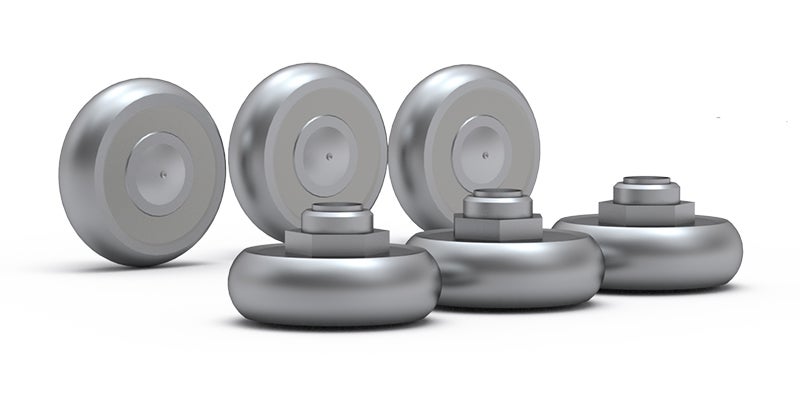

Rollers CRPN-CRPA
Crowned roller for K-rail -

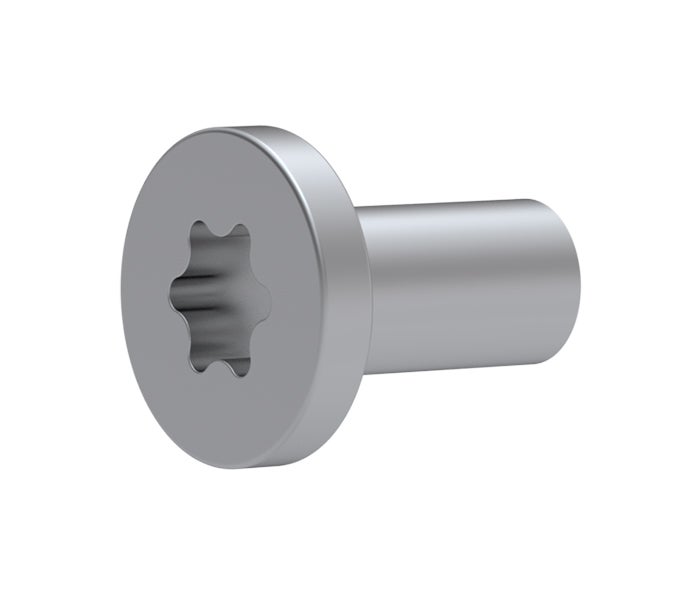

Fixing screws
For rails with counterbored holes
-

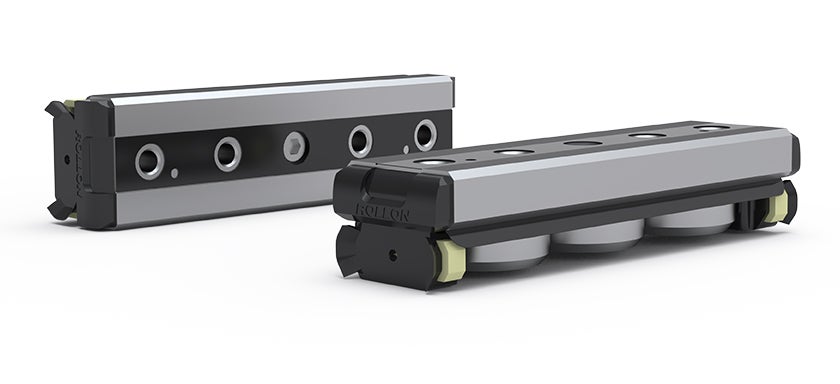

Slider NSW/NSA
With self-centering wipers and integrated lubrication -

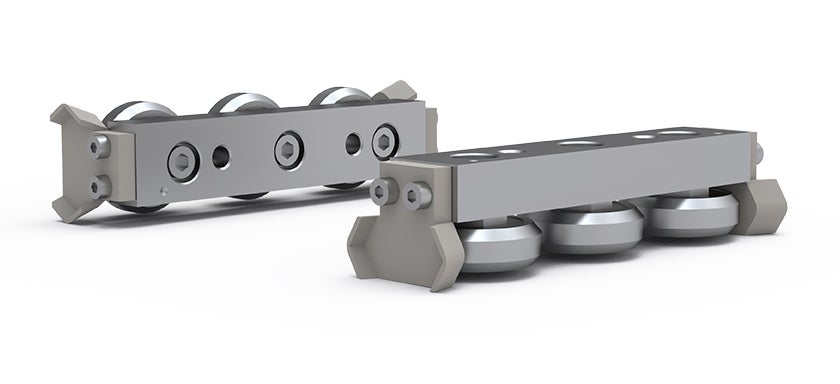

Slider CSW/CSWK
