FSCR/FSCL

STOCK ITEM
Ball nut with Flange (DIN 69051)
Available in right (FSCR) and left (FSCL) lead.
Match with Screw shaft: SR.

Standard nuts are with oil-seals.

All other dimensions in mm
Download PDF

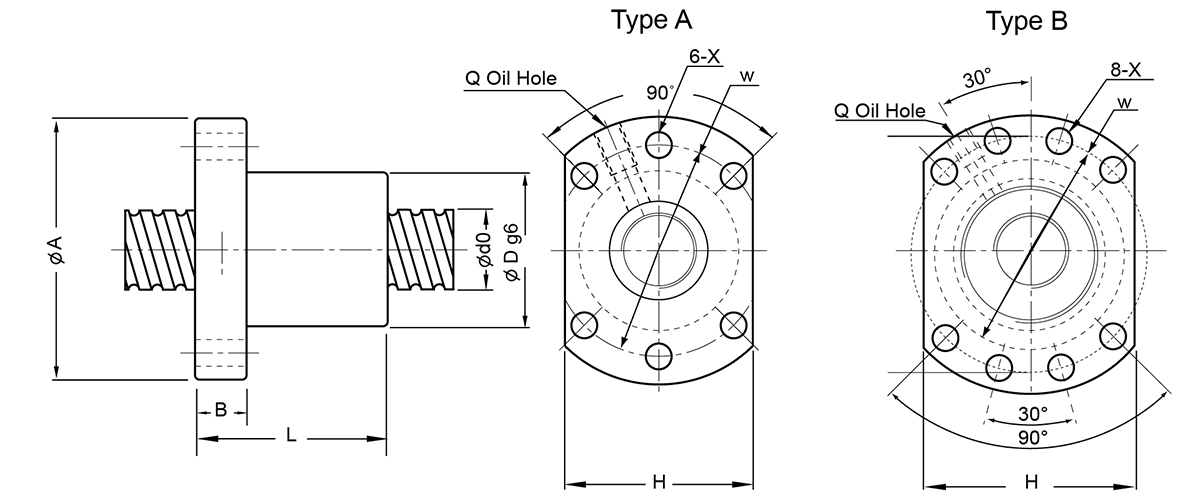

Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 13185 14960
Compare
Get quote
1 11576 14676
Compare
Get quote
1 14833 19571
Compare
Get quote
1 14833 19571
Compare
Get quote
1 16716 25320
Compare
Get quote
1 28263 36248
Compare
Get quote
1 18874 33383
Compare
Get quote
1 18874 33383
Compare
Get quote
1 47422 76861
Compare
Get quote
1 21003 35081
Compare
Get quote
1 21013 42595
Compare
Get quote
1 52964 98826
Compare
Get quote
1 37101 63451
Compare
Get quote
1 58203 120791
Compare
Get quote
1 65727 159216
Compare
Get quote
1 87868 176040
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D H Q
16 x 5 48 10 50 28 40 M6
Compare
Get quote
16 x 10 48 12 43 28 40 M6
Compare
Get quote
20 x 5 58 10 53 36 44 M6
Compare
Get quote
20 x 5 58 10 34 36 44 M6
Compare
Get quote
25 x 5 62 10 53 40 48 M6
Compare
Get quote
25 x 10 62 12 85 40 48 M6
Compare
Get quote
32 x 5 80 12 53 50 62 M6
Compare
Get quote
32 x 5 80 12 53 50 62 M6
Compare
Get quote
32 x 10 80 16 90 50 62 M6
Compare
Get quote
32 x 20 80 13 78 50 62 M6
Compare
Get quote
40 x 5 93 16 56 63 70 M8
Compare
Get quote
40 x 10 93 18 93 63 70 M8
Compare
Get quote
40 x 20 93 15 83 63 70 M8
Compare
Get quote
50 x 10 110 18 93 75 85 M8
Compare
Get quote
63 x 10 125 18 98 90 95 M8
Compare
Get quote
63 x 20 135 20 138 95 100 M8
Compare
Get quote
Technical Drawing
Designation Select all Type X W
A 5,50 38
Compare
Get quote
A 5,50 38
Compare
Get quote
A 6,60 47
Compare
Get quote
A 6,60 47
Compare
Get quote
A 6,60 51
Compare
Get quote
A 6,60 51
Compare
Get quote
A 9 65
Compare
Get quote
A 9 65
Compare
Get quote
A 9 65
Compare
Get quote
A 9 65
Compare
Get quote
B 9 78
Compare
Get quote
B 9 78
Compare
Get quote
B 9 78
Compare
Get quote
B 11 93
Compare
Get quote
B 11 108
Compare
Get quote
B 13,50 115
Compare
Get quote
Designation Select all Ball diameter Turns x circuits
3,18 1 x 4
Compare
Get quote
3,18 3 x 1
Compare
Get quote
3,18 1 x 4
Compare
Get quote
3,18 4 x 1
Compare
Get quote
3,18 1 x 4
Compare
Get quote
4,76 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
3,97 3 x 1
Compare
Get quote
3,18 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
5,56 3 x 1
Compare
Get quote
6,35 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
9,53 1 x 3
Compare
Get quote
