FSER

STOCK ITEM

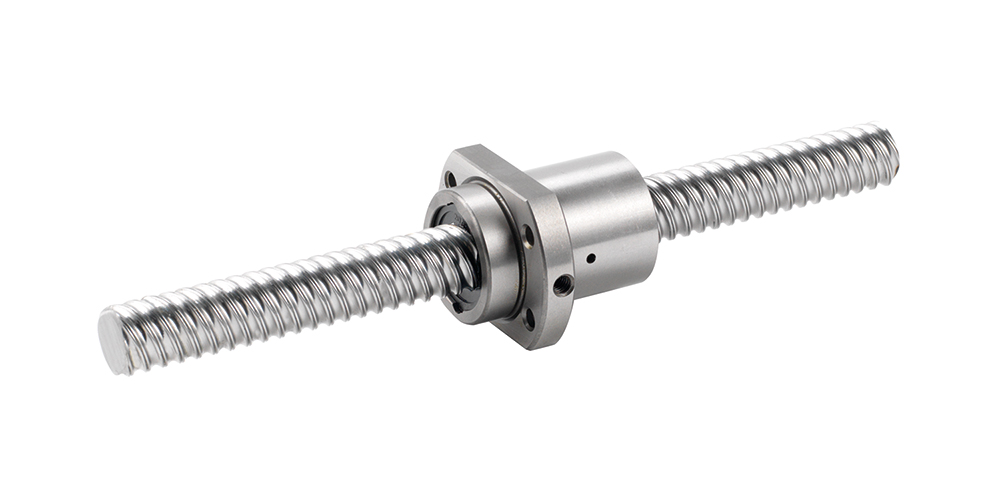

Single Nut with Flange, Long Lead
Match with Screw shaft: SR/SL.

Standard nuts are with oil-seals. Other types on request.

All other dimensions in mm
Download PDF

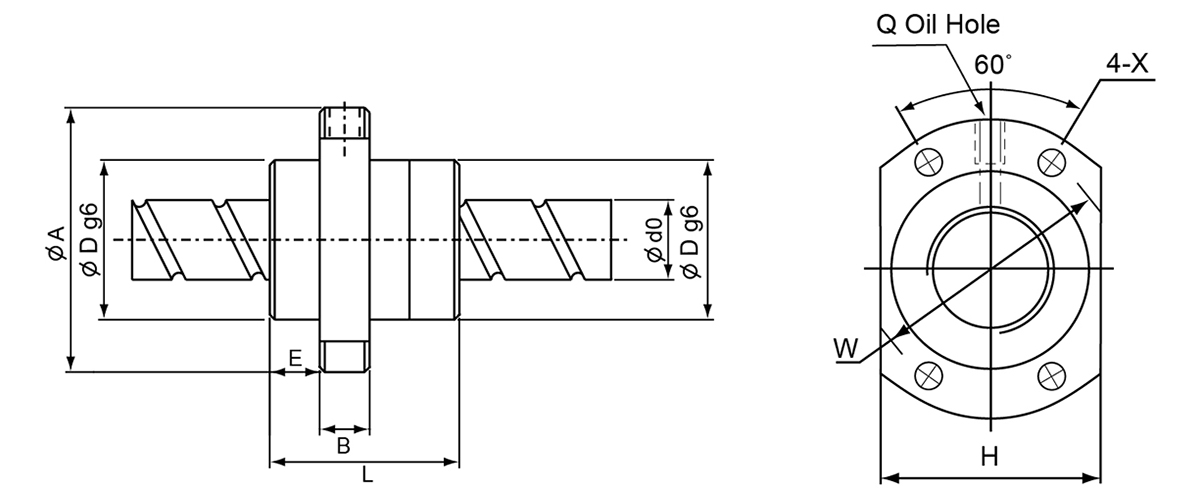

Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 14833 19571
Compare
Get quote
1 16275 24172
Compare
Get quote
1 24339 37778
Compare
Get quote
1 35169 59557
Compare
Get quote
1 56682 115297
Compare
Get quote
1 86514 188754
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D H E Q
16 x 16 53 10 48 32 38 10,50 M6
Compare
Get quote
20 x 20 62 10 55 39 46 10,80 M6
Compare
Get quote
25 x 25 74 12 67 47 56 11,20 M6
Compare
Get quote
32 x 32 92 15 82 58 68 14 M6
Compare
Get quote
40 x 40 114 17 100 73 84 17 M6
Compare
Get quote
50 x 50 135 20 125 90 92 21,50 M6
Compare
Get quote
Technical Drawing
Designation Select all X W
4,50 42
Compare
Get quote
5,50 50
Compare
Get quote
6,60 60
Compare
Get quote
9 74
Compare
Get quote
11 93
Compare
Get quote
14 112
Compare
Get quote
Designation Select all Ball diameter Turns x circuits
3,18 1.8 x 2
Compare
Get quote
3,18 1.8 x 2
Compare
Get quote
3,97 1.8 x 2
Compare
Get quote
4,76 1.8 x 2
Compare
Get quote
6,35 1.8 x 2
Compare
Get quote
7,94 1.8 x 2
Compare
Get quote
