RSCR

STOCK ITEM

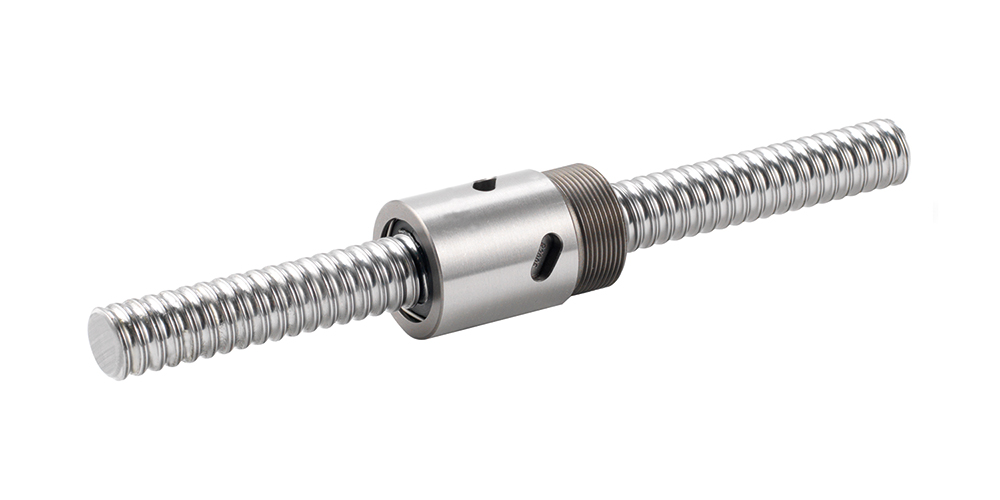

Single Nut, Cylindrical with Thread, Internal Recirculation
Match with Screw shaft: SR.

Standard nuts are with oil-seals.

All other dimensions in mm
Download PDF
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 13185 14960
Compare
Get quote
1 14833 19571
Compare
Get quote
1 16716 25320
Compare
Get quote
1 28263 36248
Compare
Get quote
1 18874 33383
Compare
Get quote
1 47422 76861
Compare
Get quote
2 21003 35081
Compare
Get quote
2 52964 98826
Compare
Get quote
2 58203 120791
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

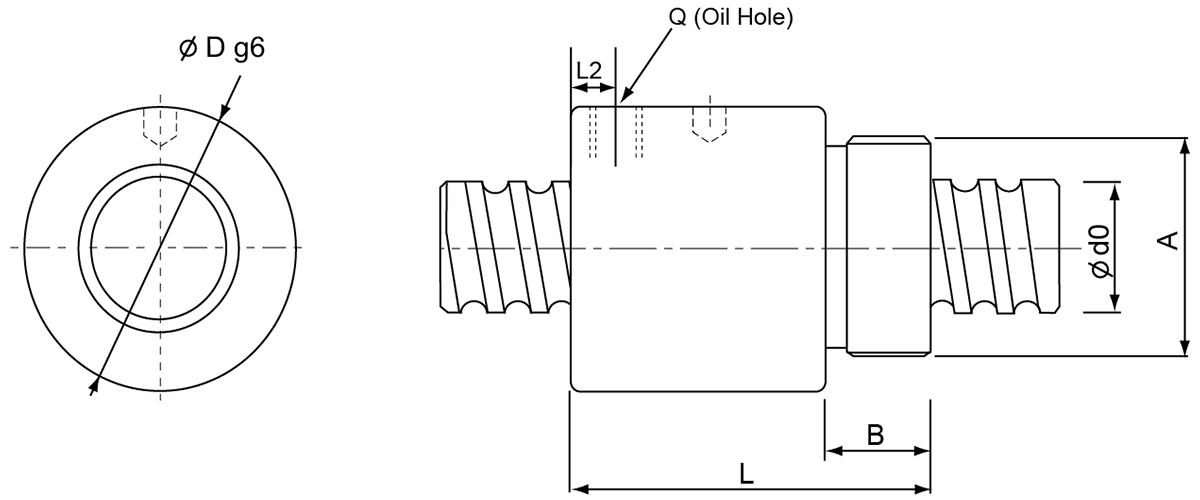

Technical Drawing
Designation Select all d0 x Lead A B L D Q L2
16 x 5 M30 x 1,5 16 56 32 M6 6,50
Compare
Get quote
20 x 5 M35 x 1,5 16,50 59,50 38 M6 7
Compare
Get quote
25 x 5 M40 x 1,5 17 60 42 M6 7
Compare
Get quote
25 x 10 M40 x 1,5 17 90 42 M6 10
Compare
Get quote
32 x 5 M48 x 1,5 19 60 52 M6 7
Compare
Get quote
32 x 10 M48 x 1,5 19 93 52 M6 12
Compare
Get quote
40 x 5 M56 x 1,5 19 59 58 M8 6
Compare
Get quote
40 x 10 M60 x 2 27 102 65 M8 12
Compare
Get quote
50 x 10 M72 x 2 29 104 78 M8 12
Compare
Get quote
Designation Select all Ball diameter Turns x circuits
3,18 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
4,76 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
3,18 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
6,35 1 x 4
Compare
Get quote
