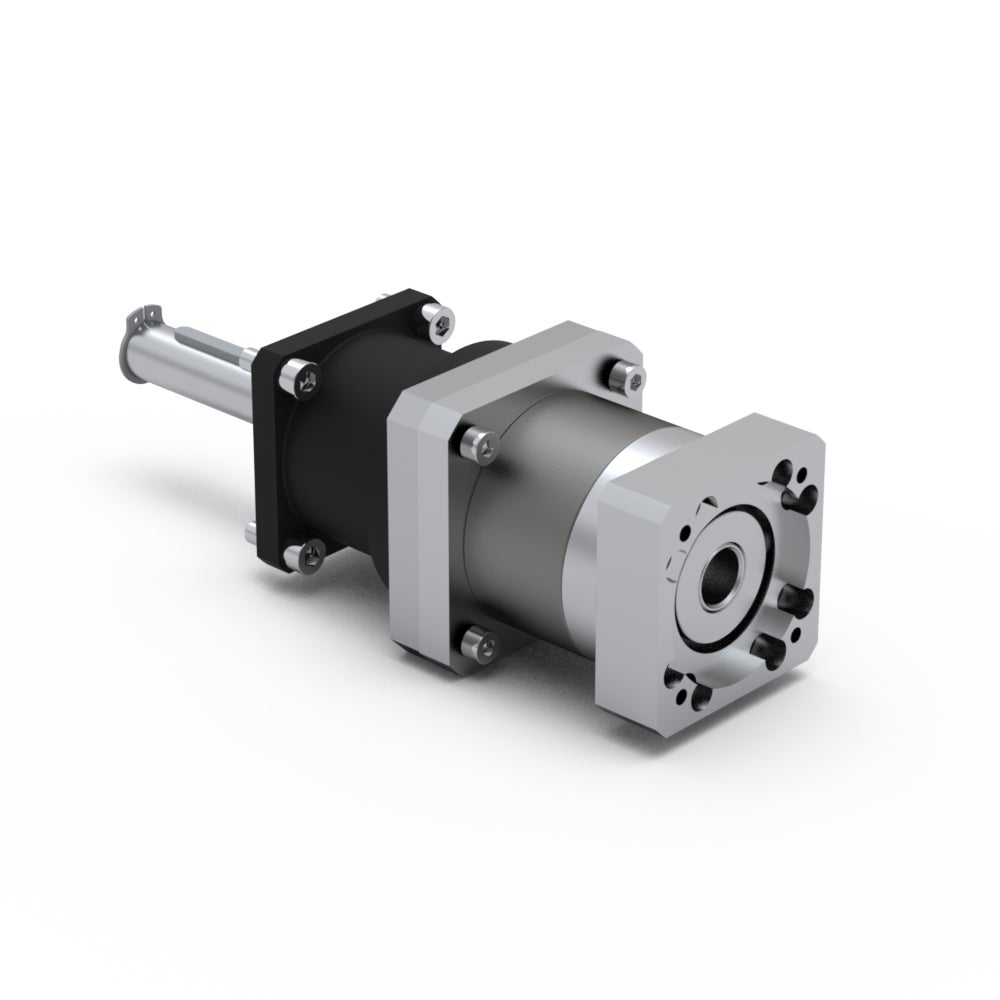

Adapter kit RHL

Easily connect your RHL Linear unit with a planetary gear by using our adapter-kit. Design your complete solution of RHL Linear unit + Adapter kit + Planetary gear with our CAD-Configurator.
Read more
Designation Select all CAD Compare Get quote Lead Time * Compatible with D1 D2 D3 G1 N1 L W1 W2
Get quote 2 RHL80 14 60 75 M5 6.4 62 60x60 70x70
Get quote 2 RHL110 24 110 130 M8 8.4 86 90x90 115x115

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

  • CP planetary gearbox

    Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy- and performance-requirements. Compact B14 output interface.
  • COMBINE WITH LINEAR UNIT RHL

    CPS planetary gearbox

    Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy- and performance-requirements. Output interface cylindrical or with B5-flange.
  • CPK bevel gearbox

    Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin.
  • COMBINE WITH LINEAR UNIT RHL

    CPSK bevel gearbox

    Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
