Sensor

STOCK ITEM
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
• Dimensions in mm.
Download PDF

Product Information

Designation Select all Lead Time *
/storage/D3757452C7C0F4A267CE9F2B3DEBEF7922279D412F00AE2090AD4858E6118B4F/08345a5a4fd1406c9b7edcb879e7b67e/stp/media/41217ab3d2544a0abbed9435c12b727a/CAD-RHL-BMF235K-Rollco.stp 1 Download CAD
Compare
Get quote
/storage/D3757452C7C0F4A267CE9F2B3DEBEF7922279D412F00AE2090AD4858E6118B4F/08345a5a4fd1406c9b7edcb879e7b67e/stp/media/41217ab3d2544a0abbed9435c12b727a/CAD-RHL-BMF235K-Rollco.stp 1 Download CAD
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

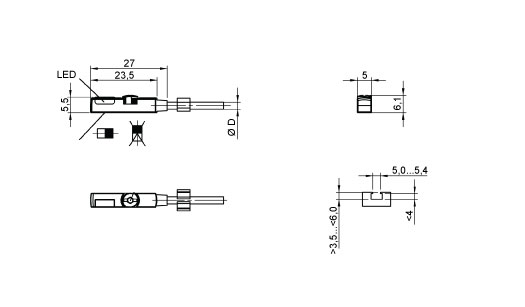

Technical Drawing
Designation Select all Service voltage Output Max rating Contact rating Internal power consumption Voltage drop static Operating frequency Reproducibility Ambient temperature Insulation voltage endurance Protection class Indicators Mounting Casing material Connection Approval Short circuit protected
/storage/D3757452C7C0F4A267CE9F2B3DEBEF7922279D412F00AE2090AD4858E6118B4F/08345a5a4fd1406c9b7edcb879e7b67e/stp/media/41217ab3d2544a0abbed9435c12b727a/CAD-RHL-BMF235K-Rollco.stp 10 ... 30 V DC PNP, NO 200 mA 6 W max. (30 V, 200 mA) 6 mA 2,5 V max 5000 Hz < 0,1 mm -25 ... +85 °C 75 V DC IP 67 LED: yellow output signal Hex key size 2,0 mm. Max. tightening torque 0,4 Nm PA12 Cable PUR, 2,0 m as standard CE Yes Download CAD
Compare
Get quote
/storage/D3757452C7C0F4A267CE9F2B3DEBEF7922279D412F00AE2090AD4858E6118B4F/08345a5a4fd1406c9b7edcb879e7b67e/stp/media/41217ab3d2544a0abbed9435c12b727a/CAD-RHL-BMF235K-Rollco.stp 10 ... 30 V DC PNP, NC 200 mA 6 W max. (30 V, 200 mA) 6 mA 2,5 V max 5000 Hz < 0,1 mm -25 ... +85 °C 75 V DC IP 67 LED: yellow output signal Hex key size 2,0 mm. Max. tightening torque 0,4 Nm PA12 Cable PUR, 2,0 m as standard CE Yes Download CAD
Compare
Get quote
