MS - Mechanical Switch

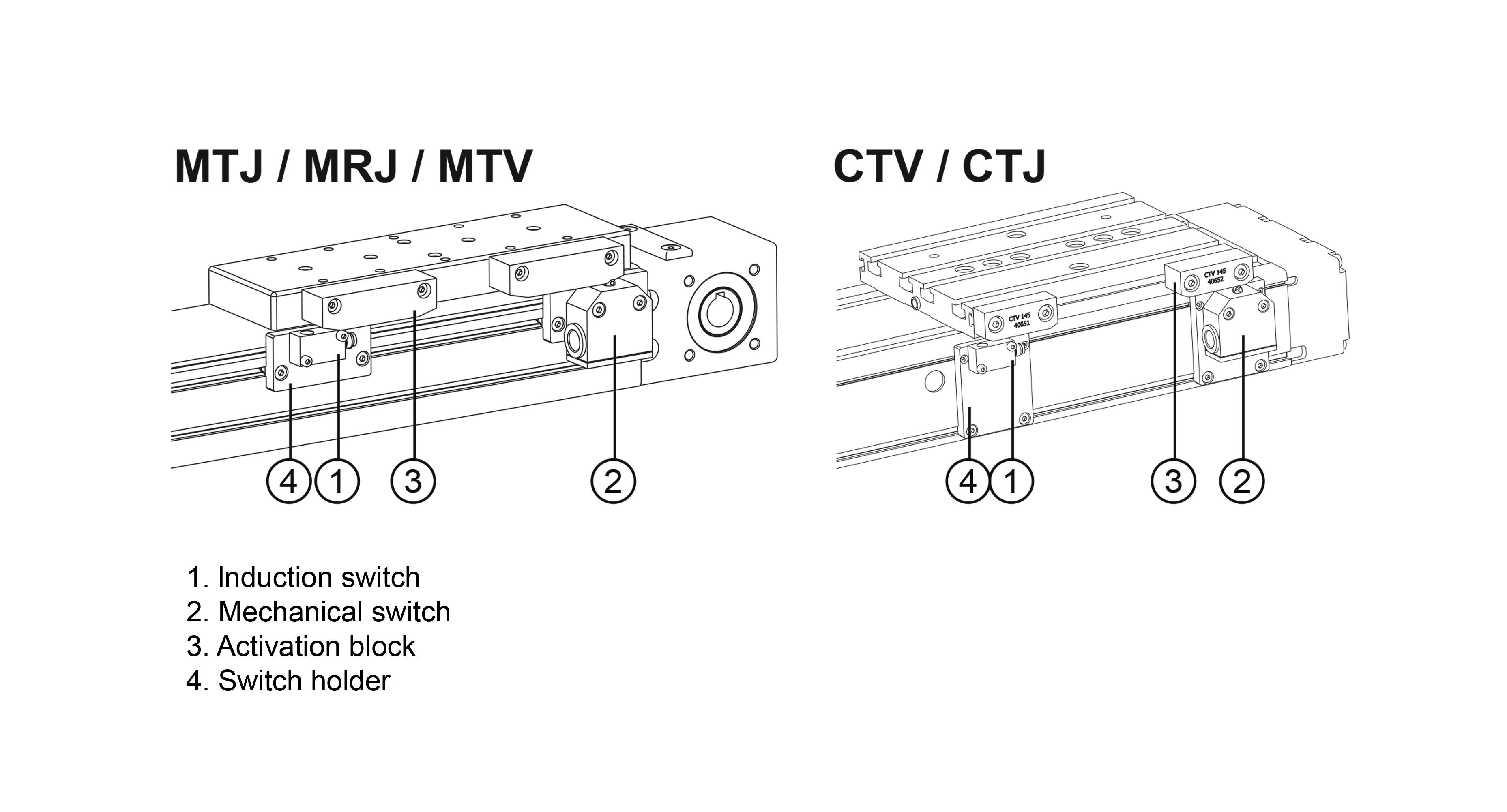

Mounting and using the induction and mechanical switch, can be done only if the CTV and CTJ series linear units are delivered with connection plates.
Contact Rollco for CAD-files.

Dimensions in mm.
Download PDF

Product Information

Protection class IEC 60529: IP67
Ambient temperature: -5°C ... +80°C
Operating point accuracy: ± 0.05 mm
Approach speed max.: 45 m/min
Approach speed min.: 0,01 m/min
Switching contact: 1 changeover
Switching principle: Snap-action
Rated voltage: 250 V AC
: 10 mA
Switching voltage: 24 V DC
Cable entry: M12 x 1,5

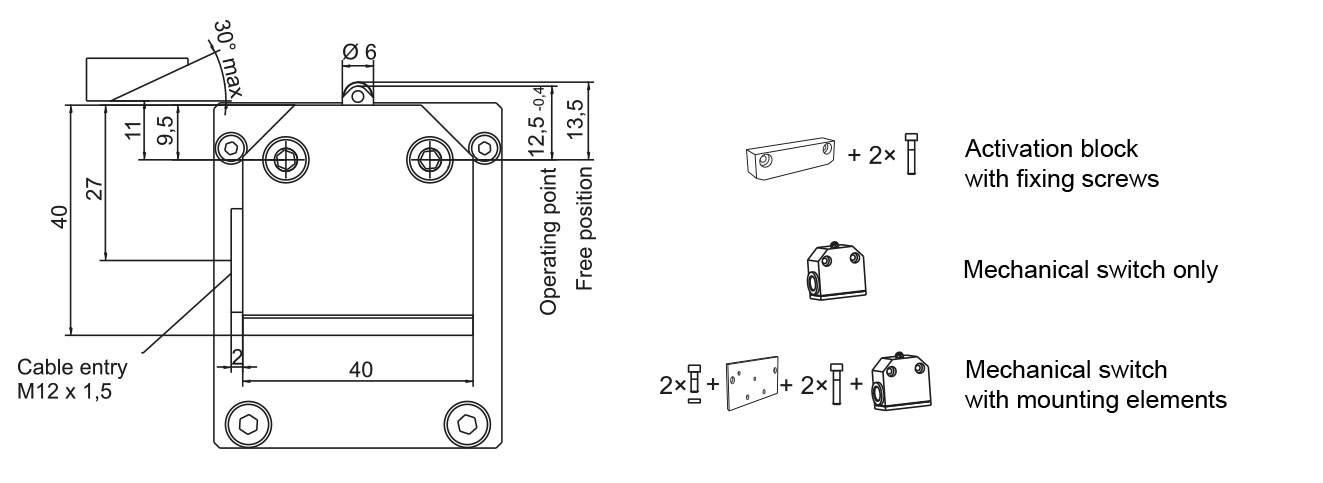

Technical Drawing
Designation Select all Lead Time * Compatible with
2 MTJ/MRJ 40
Compare
Get quote
2 MTJZ 40
Compare
Get quote
2 MTJ/MRJ/MTV 65 MTJZ 65/80
Compare
Get quote
2 MTJ/MRJ/MTV 80
Compare
Get quote
2 MTJ/MRJ/MTV 110
Compare
Get quote
2 MTJZ 110
Compare
Get quote
2 MTJ ECO 40
Compare
Get quote
2 CTV/CTJ 90
Compare
Get quote
2 CTV/CTJ 110
Compare
Get quote
2 CTV/CTJ 145/200
Compare
Get quote
2 All models
Compare
Get quote
2 MTJ/MRJ 40 MTJZ 40
Compare
Get quote
2 MTJ/MRJ/MTV 65 MTJZ 65/80
Compare
Get quote
2 MTJ/MRJ/MTV 80
Compare
Get quote
2 MTJ/MRJ/MTV 110
Compare
Get quote
2 MTJZ 110
Compare
Get quote
2 MTJ ECO 40
Compare
Get quote
2 CTV/CTJ 90
Compare
Get quote
2 CTV/CTJ 110
Compare
Get quote
2 CTV/CTJ 145
Compare
Get quote
2 CTV/CTJ 200
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
