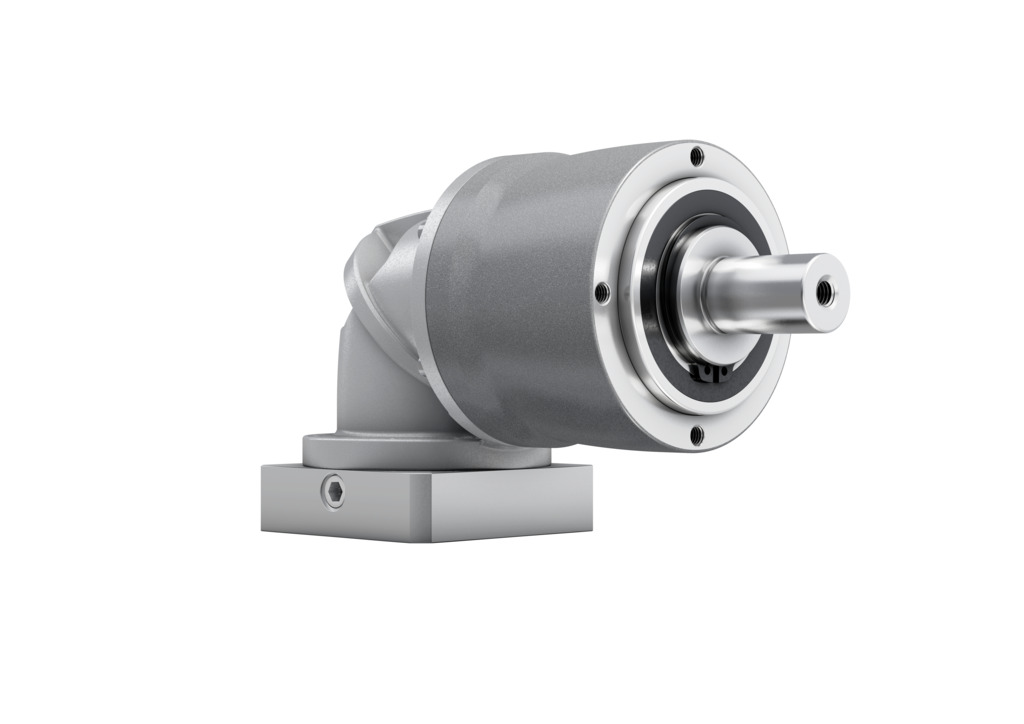

NPK bevel gearbox

Versatile right-angle planetary gearbox. Based on the NP gearbox with an additional bevel-gear input stage. Used where space-constraints does not allow an in-line assembly with the motor. With LP+ B14 output geometry. Smooth or keyed output shaft. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.
Last ned PDF (alle data) code.product.loadingpdf
+ Legg til i PDF-katalog

Product Information

Ratio: 3-100
Max. Torque (Nm): 14 - 700
Other models: food-grade lubrication
Technical_information_NPK-NPLK-NPSK-NPTK-NPRK.pdf
Planetary_Gearboxes_Order_Codes.pdf
Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf
Designation Select all Lead Time * Size Ratio Compare
2 005 4/5/7/8/10/16/20/25/28/35/40/50/64/70/100 (Gearbox model Standard)
Get quote
2 015 3/4/5/7/8/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)
Get quote
2 025 3/4/5/7/8/9/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)
Get quote
2 035 3/4/5/7/8/9/10/12/15/16/20/25/28/30/32/35/40/50/64/70/100 (Gearbox model Standard)
Get quote
2 045 5/8/10/25/32/50/64/100 (Gearbox model Standard)
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
