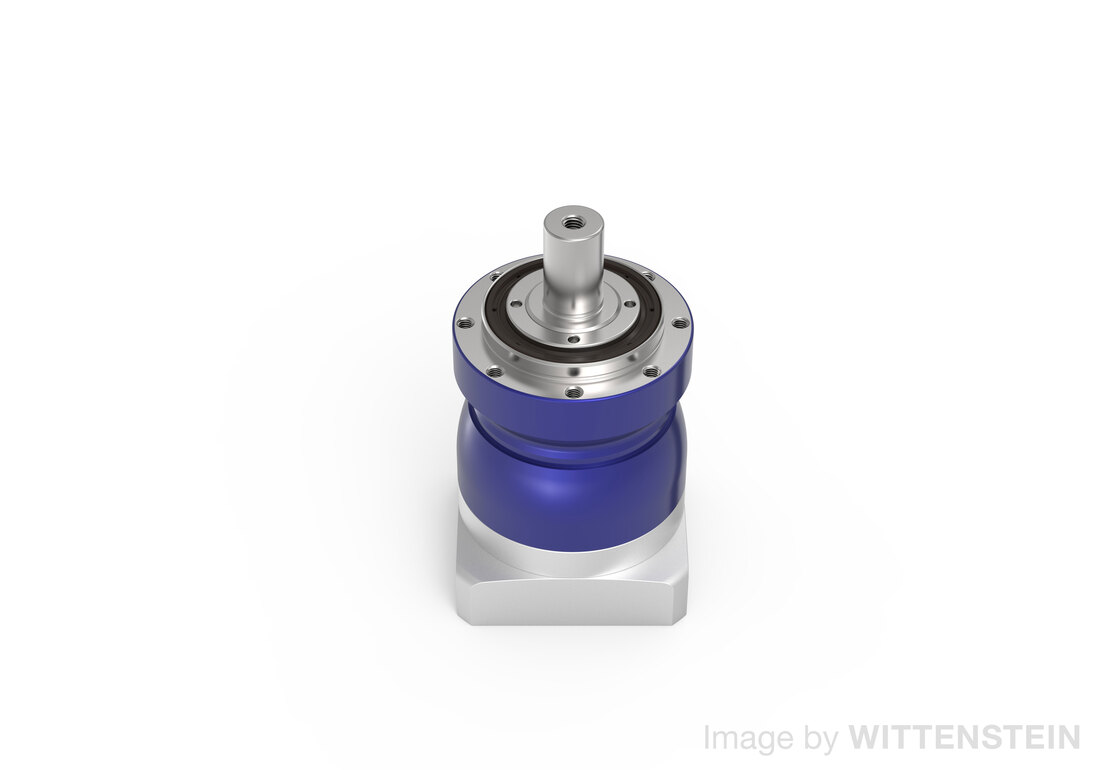

NPL planetary gearbox

Universally suitable gearbox from alpha Value Line. With LP+ B14 output geometry. Smooth or keyed cylindrical output shaft or DIN 5480 involute splined shaft. Reinforced output bearings enable applications with high radial and axial shaft loads. Optional available in High Torque execution for ratio 3:1 and 4:1 and products thereof for 2-stage gears. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.
Last ned PDF (alle data) code.product.loadingpdf
+ Legg til i PDF-katalog

Product Information

Ratio: 3-100
Max. Torque (Nm): 51 - 800
Other models: food-grade lubrication
Technical_information_NP-NPL-NPS-NPT-NPR.pdf
Planetary_Gearboxes_Order_Codes.pdf
Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf
Designation Select all Lead Time * Size Ratio Compare
2 015 3 / 4 / 5 / 7 / 8 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 025 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 035 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 045 5 / 8 / 10 / 25 / 32 / 50 / 64 / 100
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
