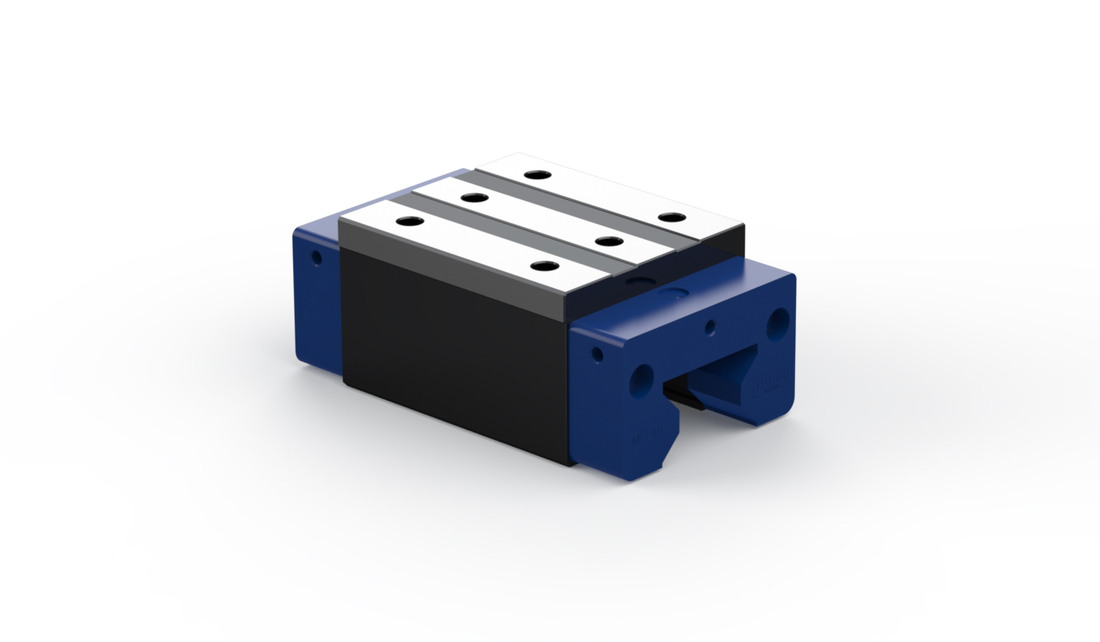

Narrow Block Type SC

STANDARD
Standard narrow block. Available in different accuracy classes and preload options.

Very high load capacity, stiffness and precision.

Dimensions in mm. (According to the DIN 645/I standards.)

Lead time/availability in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD / Request quote
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm)
Request quote 1 28700 57600 863 570 570 431 285 285
Request quote 1 53300 99000 2192 1253 1253 1179 674 674
Request quote 1 95000 184000 5070 2979 2979 2617 1538 1538
Request quote 2 132600 256000 8707 4981 4981 4503 2576 2576
Request quote 2 212000 414000 15780 10140 10140 8100 5210 5210

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H W L1 H1 h2 W1 W2 S1 S4 Q T Hole Pitch (P) P1 P2 M
Request quote 90.2 40 48 62 24.35 33.5 23 12.5 M6 19 9.5 9 30 35 35 7.5
Request quote 119.3 55 70 80 32 48 34 18 M8 21.5 14.9 12 40 50 50 8
Request quote 147.3 70 86 101.3 39.85 60 45 20.5 M10 27.6 18 18 52.5 60 60 10
Request quote 173 80 100 120 47.8 67 53 23.5 M12 31.5 19.8 19 60 75 75 12
Request quote 221.8 90 126 159.8 55 78 63 31.5 M16 51.8 15 22 75 70 76 15.5
