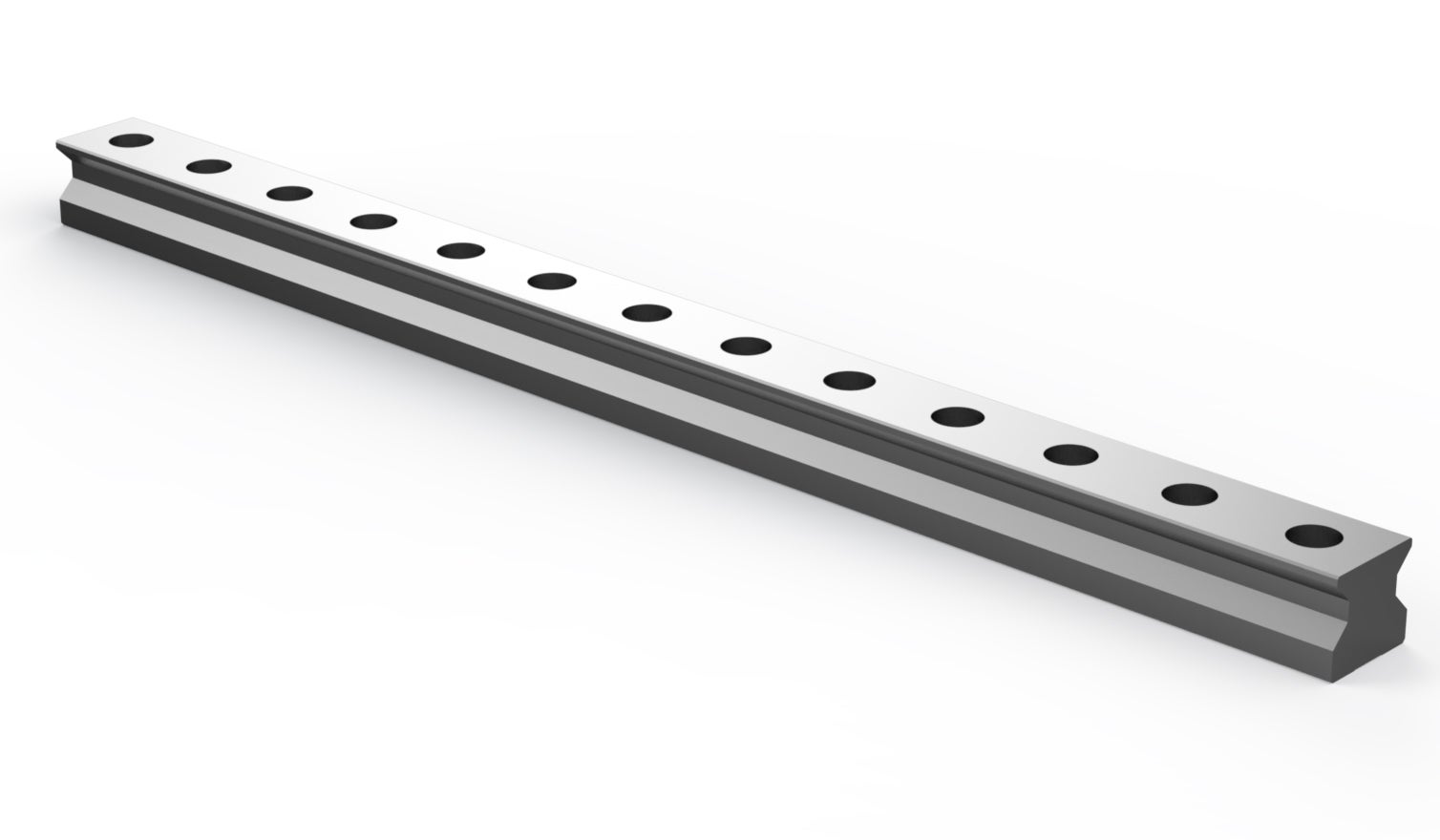

Rail RMG

STANDARD
Standard rails with induction hardened raceways.

Very high load capacity, stiffness and precision.

Dimensions in mm. (According to the DIN 645/I standards.)
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD / Request quote
Designation Select all CAD Compare Get quote Lead Time * Weight (kg/m)
Request quote 1 3.4
Request quote 1 6.5
Request quote 1 10.7
Request quote 2 15.2
Request quote 2 22.5

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H1 W1 D x d x g1 Hole Pitch (P)
Request quote 24.35 23 11 x 7 x 11.5 30
Request quote 32 34 15 x 9 x 17 40
Request quote 39.85 45 20 x 14 x 19 52.5
Request quote 47.8 53 24 x 16 x 22 60
Request quote 55 63 26 x 18 x 26 75
