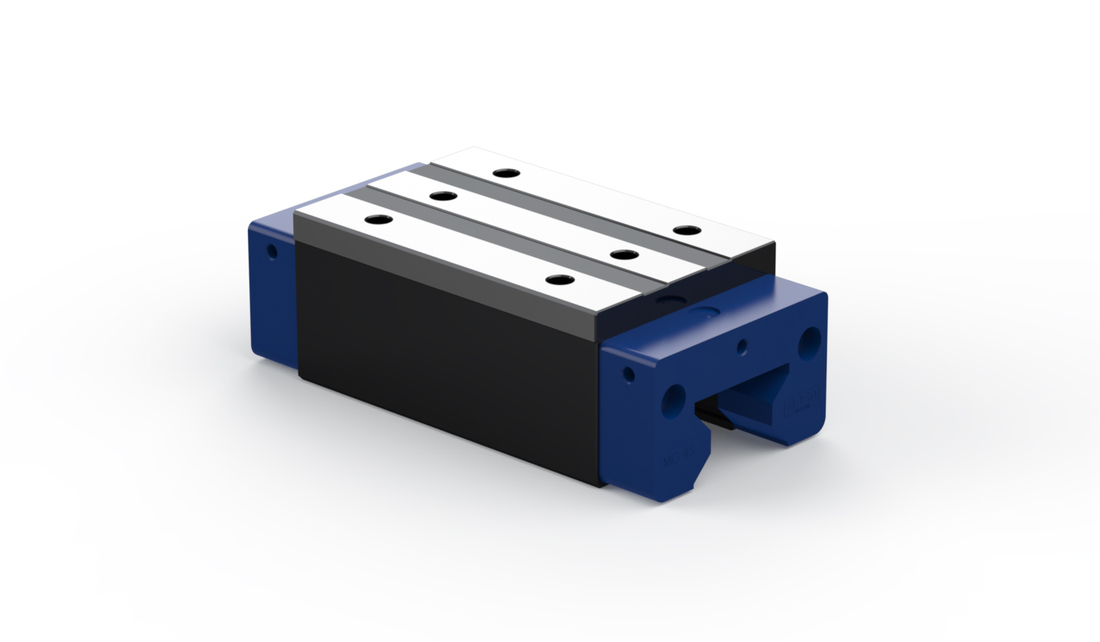

Narrow Block Type SL

Long narrow block. Available in different accuracy classes and preload options.

Very high load capacity, stiffness and precision.

Dimensions in mm. (According to the DIN 645/I standards.)

Lead time/availability in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD / Request quote
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm)
Request quote 2 38900 76800 1150 970 970 583 491 491
Request quote 2 72600 136000 3014 2243 2243 1595 1187 1187
Request quote 2 119500 242200 6672 4951 4951 3293 2444 2444
Request quote 2 176000 351000 11915 8910 8910 5977 4470 4470
Request quote 2 276000 579000 22100 11840 11840 10530 8980 8980

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H W L1 H1 h2 W1 W2 S1 S4 Q T Hole Pitch (P) P1 P2 M
Request quote 109.7 40 48 81.5 24.5 33.5 23 12.5 M6 21.2 9.5 9 30 50 35 7.5
Request quote 142.3 55 70 103 32 48 34 18 M8 22 14.9 12 40 72 50 8
Request quote 179.8 70 86 133.8 40 60 45 20.5 M10 33.9 18 18 52.5 80 60 10
Request quote 215 80 100 162 48 67 53 23.5 M12 42.5 19.8 19 60 95 75 12
Request quote 272.3 90 126 210.3 55 78 63 31.5 M16 57 15 22 75 120 76 15.5
