Narrow Block Type SL

The Rollco Roller Guides are highly developed solutions for the high-tech industry.
The optimized shape of the rails, the roller guides with logarithmic profiles and the
integrated lubrication system multiplies the economical as well as the technical advantages.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Dynamic Moment Mr Dynamic Moment Mp Dynamic Moment My
2 38900 N 76800 N 1150 Nm 970 Nm 970 Nm 583 Nm 491 Nm 491 Nm Get quote
2 72600 N 136000 N 3014 Nm 2243 Nm 2243 Nm 1595 Nm 1187 Nm 1187 Nm Get quote
2 119500 N 242200 N 6672 Nm 4951 Nm 4951 Nm 3293 Nm 2444 Nm 2444 Nm Get quote
2 176000 N 351000 N 11915 Nm 8910 Nm 8910 Nm 5977 Nm 4470 Nm 4470 Nm Get quote
2 276000 N 579000 N 22100 Nm 11840 Nm 11840 Nm 10530 Nm 8980 Nm 8980 Nm Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

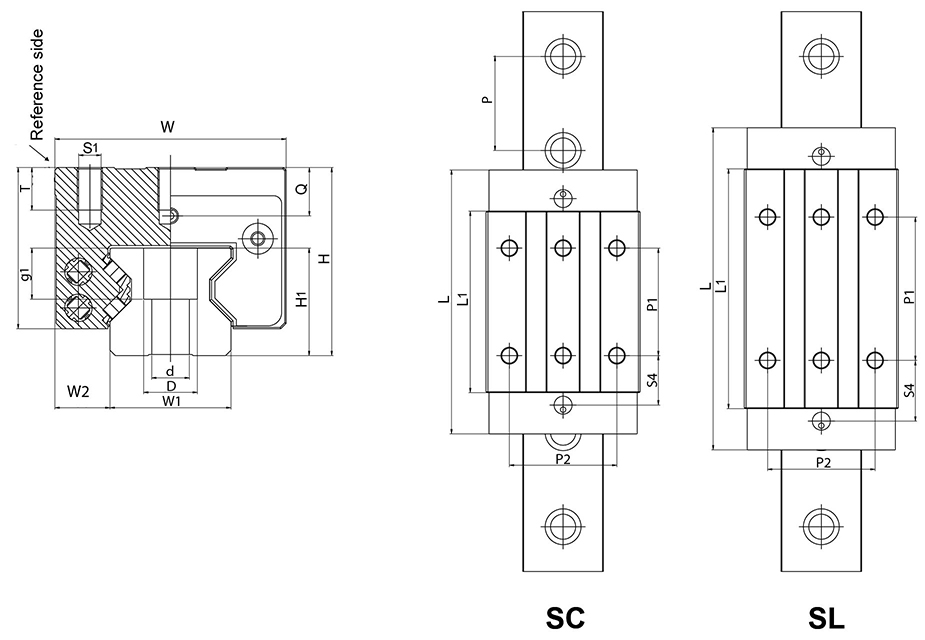

Technical Drawing
Designation H L
40 109,70 Get quote
55 142,30 Get quote
70 179,80 Get quote
80 215 Get quote
90 272,30 Get quote
Technical Drawing
Designation P2 P1
35 50 Get quote
50 72 Get quote
60 80 Get quote
75 95 Get quote
76 120 Get quote
Technical Drawing
Designation W1 H1 P D x d x g1 Hole Pitch (P)
23 24,50 - 11x7x11,5 30 Get quote
34 32 40 15x9x17 - Get quote
45 40 52,50 20x14x19 - Get quote
53 48 60 24x16x22 - Get quote
63 55 75 26x18x26 - Get quote
Technical Drawing
Designation L1 h2 W2 S1 S4 T H1
81,50 33,50 12,50 M6 21,20 9 24,50 Get quote
103 48 18 M8 22 12 32 Get quote
133,80 60 20,50 M10 33,90 18 40 Get quote
162 67 23,50 M12 42 19 48 Get quote
210,30 78 31,50 M16 49,20 22 55 Get quote
