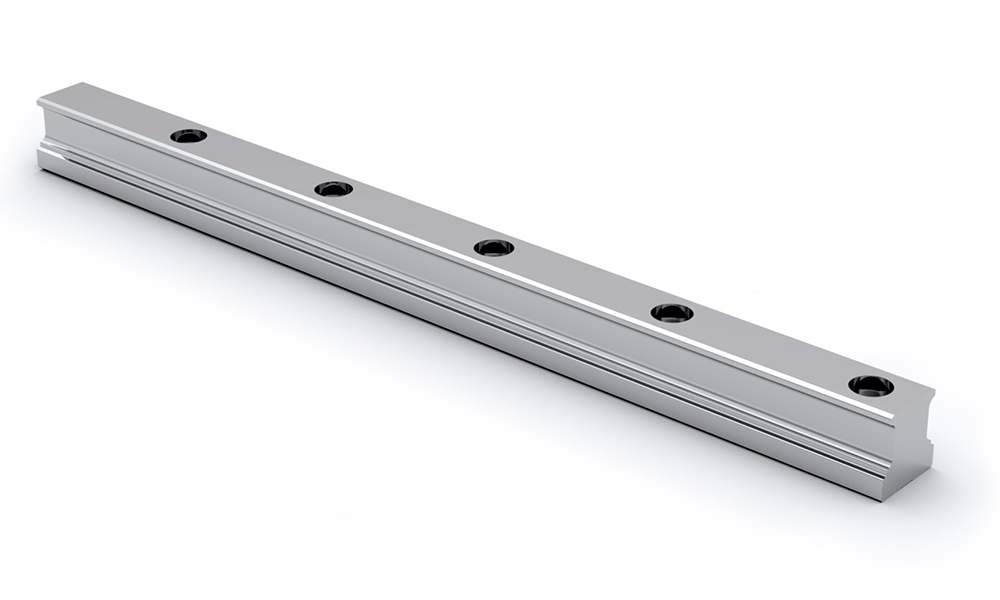

HRC Rail

STOCK ITEM
Counterbore from above.
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Dimensions in mm.
Download PDF
Technical Drawing
Designation Select all Lead Time * H1 W1 Hole Pitch (P) D x d x g1 Length Weight Rail
1 15 15 60 7.5x4.5x5.3 4 000 1290 g/m
Compare
Get quote
1 20 20 60 9.5x6x8.5 4 000 2280 g/m
Compare
Get quote
1 23 23 60 11x7x9 4 000 3020 g/m
Compare
Get quote
1 27 28 80 14x9x12 4 000 4380 g/m
Compare
Get quote
1 32 34 80 14x9x12 4 000 6790 g/m
Compare
Get quote
1 39 45 105 20x14x17 4 000 10530 g/m
Compare
Get quote
1 45,70 53 120 24x16x20 4 000 14000 g/m
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

  • STOCK ITEM

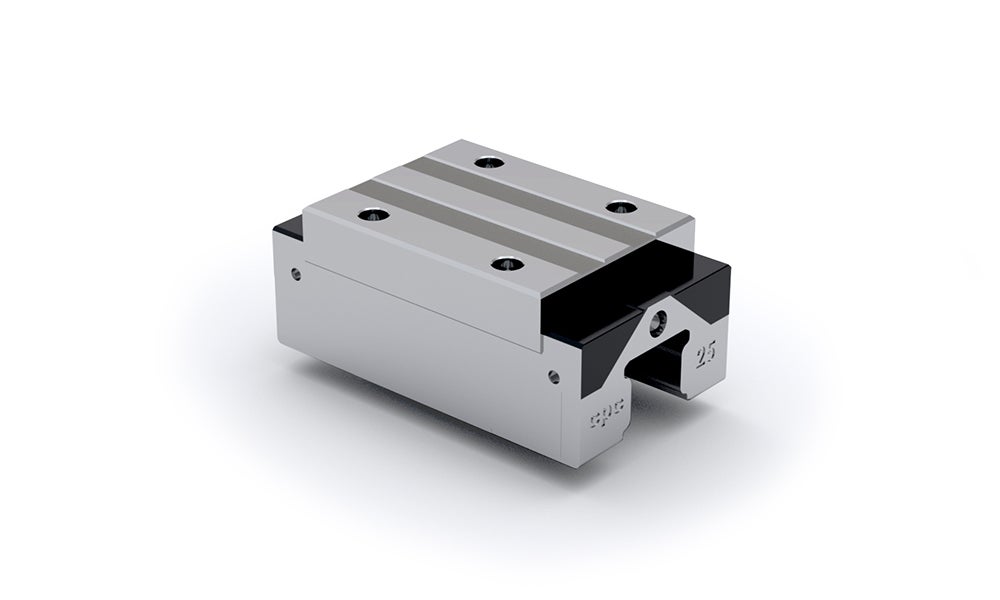

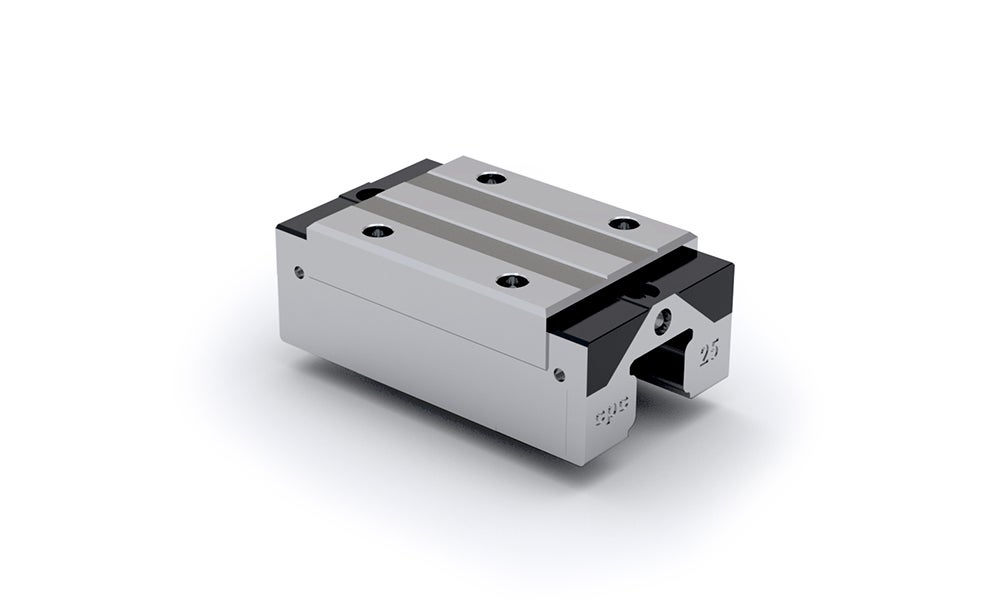

    Slim – standard length – standard height
  • STOCK ITEM

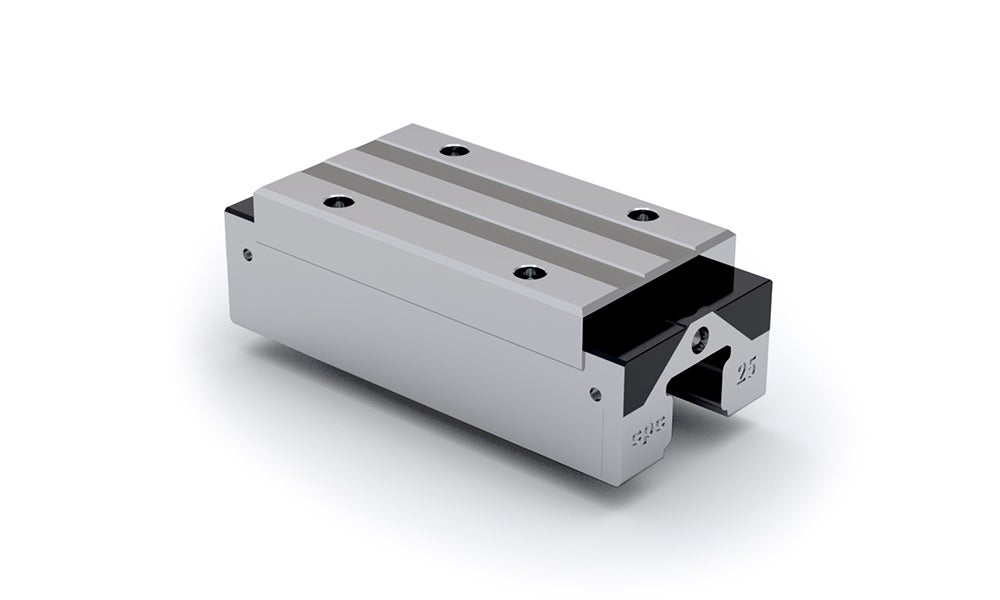

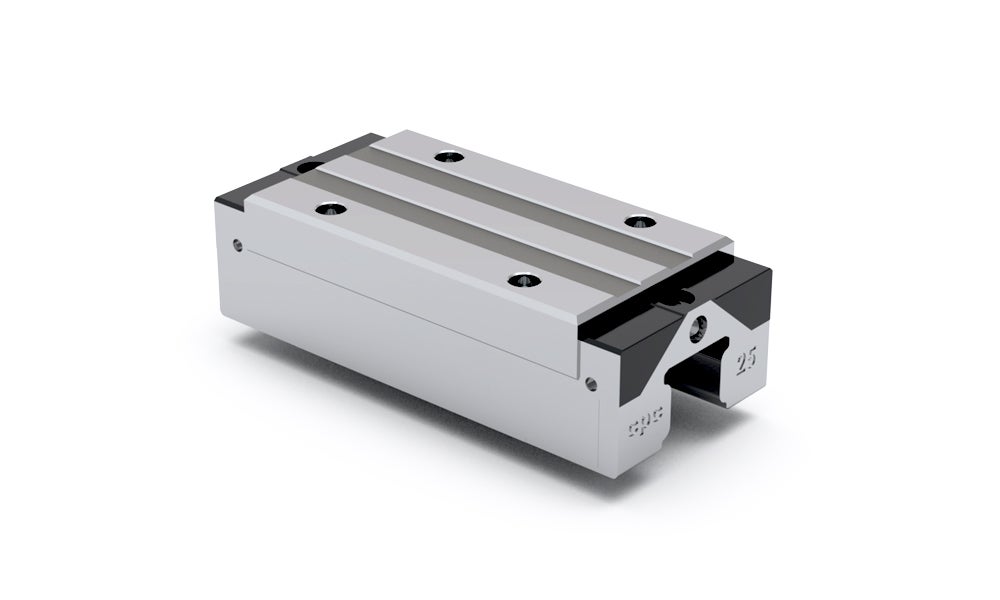

    Slim – long – standard height
  • STOCK ITEM
    Slim – standard length – low height
  • STOCK ITEM

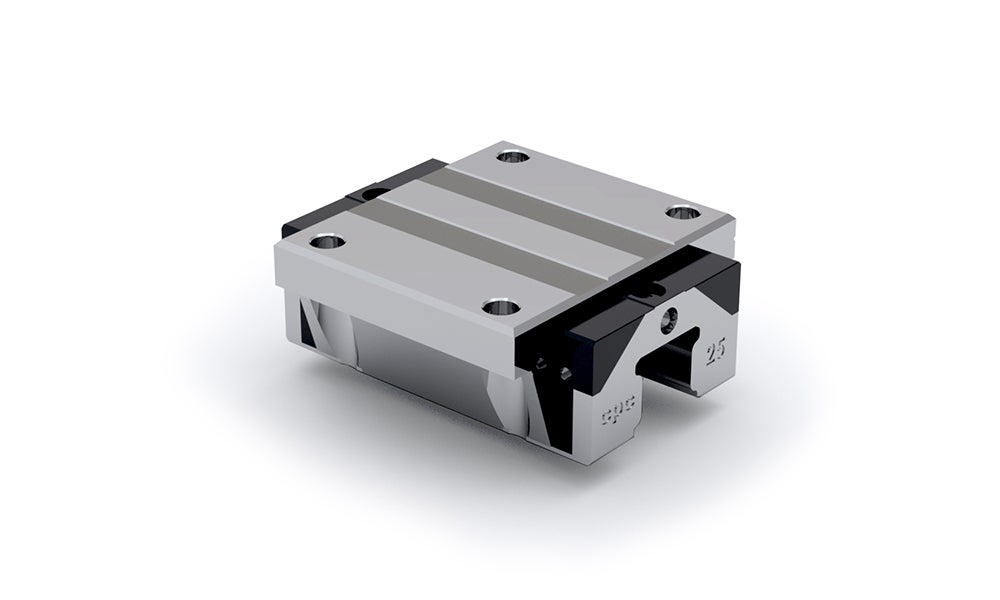

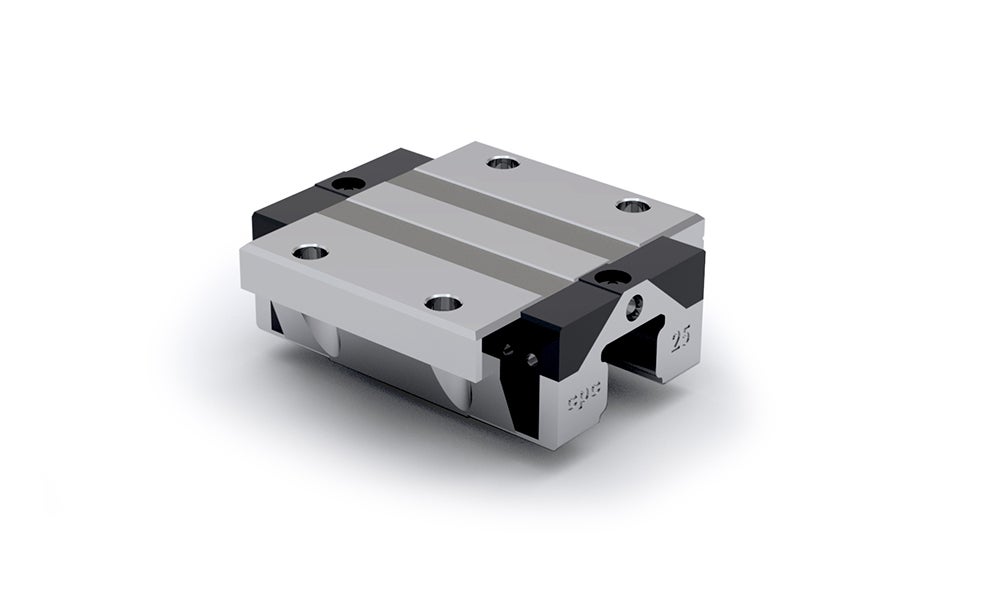

    Flanged – standard length – standard height (most common)
  • STOCK ITEM

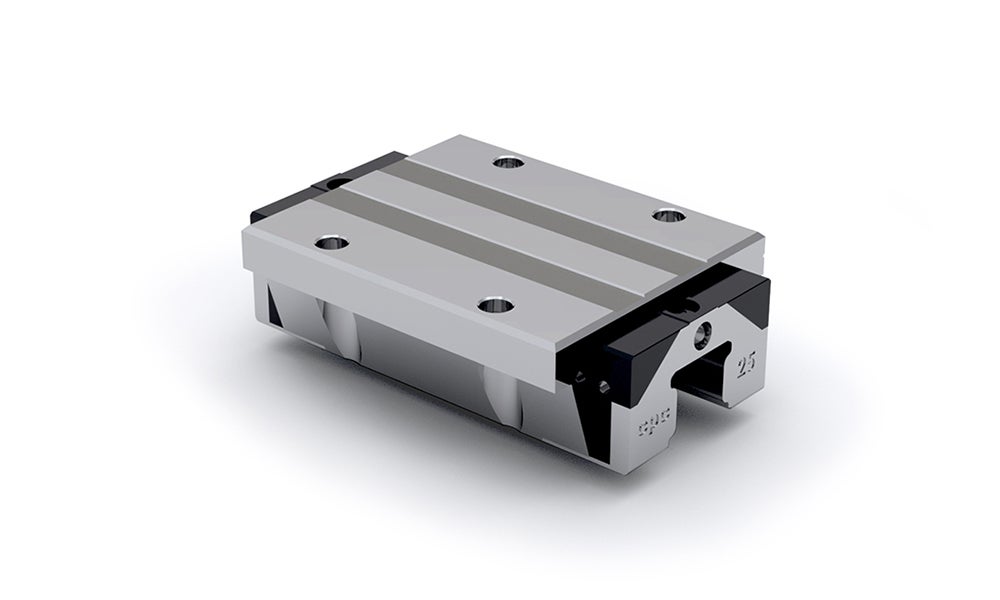

    Flanged – long – standard height
  • STOCK ITEM

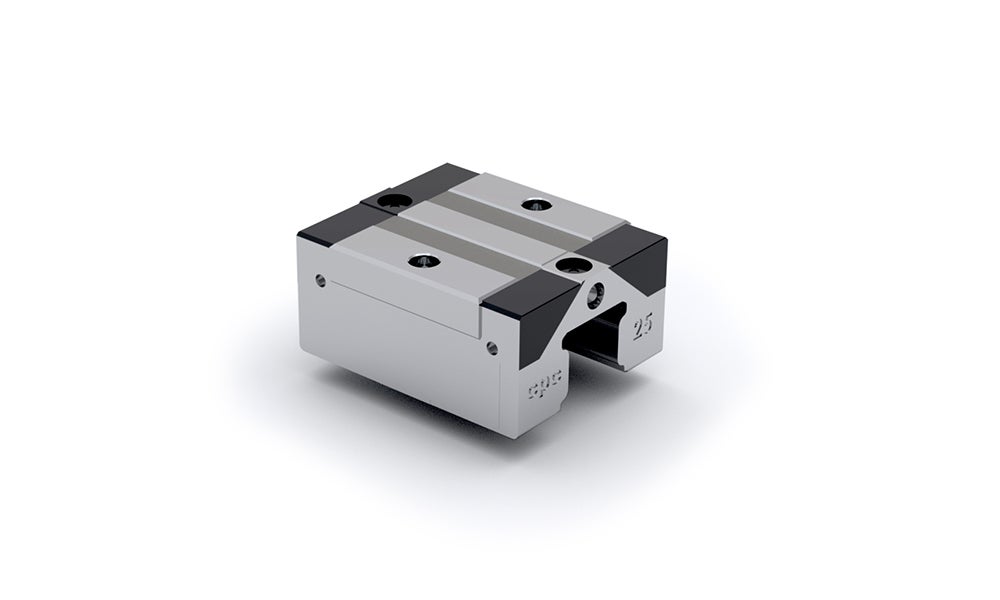

    Slim – short – low height
  • STOCK ITEM

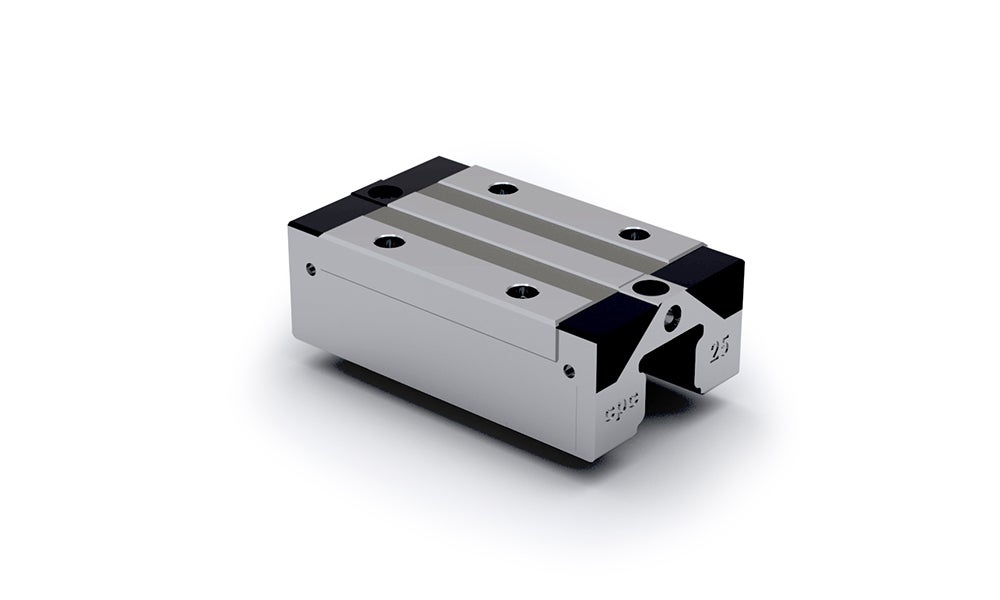

    Slim – standard length – low height
  • STOCK ITEM
    Slim – long – low height
  • STOCK ITEM

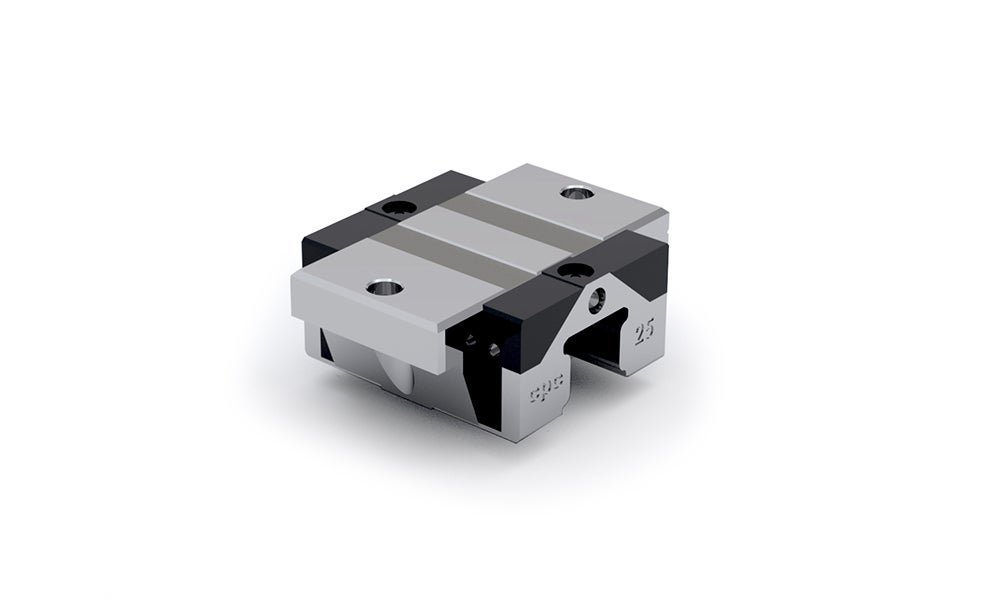

    Flanged – short – low height
  • STOCK ITEM
    Flanged – standard length – low height
  • STOCK ITEM
    Tapped from the bottom
  • STOCK ITEM
    Slim – long – low height
